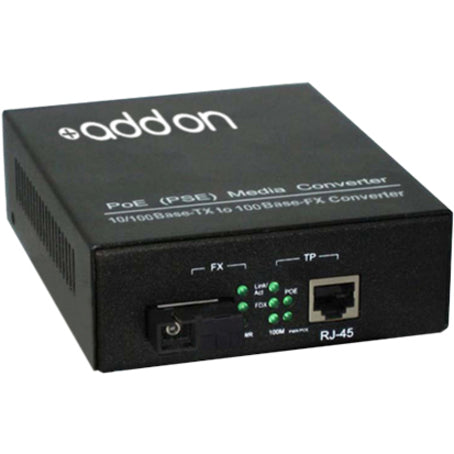

AddOn 10/100Base-TX(RJ-45) to 100Base-BXU(SC) BiDi SMF 1310nm/1550nm 20km POE Media Converter

AddOn 10/100Base-TX(RJ-45) to 100Base-BXU(SC) BiDi SMF 1310nm/1550nm 20km POE Media Converter

SKU: 1021420756      MFR: AddOn

Product Description

AddOn 10/100Base-TX(RJ-45) to 100Base-BXU(SC) BiDi SMF 1310nm/1550nm 20km POE Media Converter - 100% compatible and guaranteed to work

Manufacturer : AddOn

Manufacturer Part No : ADD-FMCP-BX-USC

Features

  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • Supports optical fiber cable for durable performance minimal signal loss and fast data transfers to greater distances
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable

Product Details

Network Technology100Base-BX-U
Input Voltage120 V AC
Manufacturer Part NumberADD-FMCP-BX-USC
Manufacturer Website Addresshttp://www.addoncomputer.com
Marketing InformationADD-FMCP-BX-USC is a Media Converter that converts a 100Base-TX(RJ45) to 100Base-BXU(SC) via a 1310nm/1550nm bi-directional (BiDi) single-mode fiber (SMF) SC connector which allows distance reach up to 20km. ADD-FMCP-BX-USC provides a cost effective conversion from 100Base Copper to 100Base-BXU fiber while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100meters / 330feets). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port the converter will automatically disable the TX signal to the other media port thus passing through the link fault.

Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program we can guarantee your product will work right the first time.
Maximum Distance Supported12.43 Mile
Limited Warranty3 Year
Weight (Approximate)1.40 lb
Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Cable Standard9/125 µm
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
Country of OriginUnited States
Height1.5"
Width5"
Depth6"
Brand NameAddOn
ManufacturerAddOn
Product ModelADD-FMCP-BX-USC
Product Name100Base-TX To 100Base-BXU SC BiDi SMF POE Media Converter
Network Technology10/100Base-TX
