• 1000FT USB CONSOLE EXTENDER
    1000FT USB CONSOLE EXTENDER
1 1

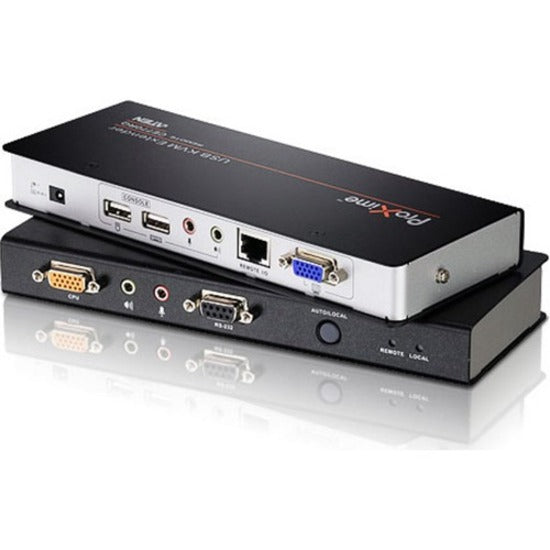

ATEN Proxime CE770 KVM Console/Extender-TAA Compliant

ATEN Proxime CE770 KVM Console/Extender-TAA Compliant

SKU: 1016077300      MFR: ATEN Technology Inc

GTIN: 672792001970

Product Description

ATEN Proxime CE770 KVM Console/Extender-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - Proprietary Interface - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : CE770

Features

  • Local and Remote Units connect at distances up to 300 m using Cat 5e cable
  • Dual console operation - control your system from both the local and remote USB keyboard monitor and mouse consoles
  • Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • RS-232 serial ports - allow you to connect to a serial terminal or serial devices such as touchscreens and barcode scanners
  • Sun/Mac keyboard support and emulation
  • Audio Enabled - supports stereo speakers and microphone
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes with the press of a single button

Product Details

Product TypeKVM Console/Extender
Maximum Video Resolution1920 x 1200
Maximum Operating Distance984.25 ft
USBYes
VGAYes
Network (RJ-45)Yes
Product FamilyProXime
Proprietary InterfaceYes
KVM TechnologyAnalog
Number of Computers Supported1
Number of Local Users Supported1
Number of Remote Users Supported1
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
Environmentally FriendlyYes
Environmental CertificationRoHS
Graphic ModeWUXGA
HeadphoneYes
Number of Network (RJ-45) Ports2
Number of USB Ports4
Number of VGA Ports2
Transmitter Weight (Approximate)1.08 lb
Receiver Weight (Approximate)1.06 lb
Country of OriginTaiwan
ManufacturerATEN Technology Inc
MicrophoneYes
Product ModelCE770
Product NameProxime CE770 KVM Console/Extender
Product LineProXime
Manufacturer Part NumberCE770
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The Proxime CE770 KVM Console/Extender is a USB based KVM Extender with deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. Proxime CE770 KVM Console/Extender supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The Proxime CE770 KVM Console/Extender's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

More from the Manufacturer
Package Contents
  • CE770 KVM Console/Extender
  • 2 x Power Adapter
  • 1 x Rack Mount Kit
  • 2 x Grounding Wires
  • 1 x User Manual
  • 1 x Quick Start Guide
  • 1 x USB KVM Cable (1.8m)
Limited Warranty2 Year
View full details
$451.18 USD
$451.18
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

ATEN Proxime CE770 KVM Console/Extender-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - Proprietary Interface - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : CE770

Features

  • Local and Remote Units connect at distances up to 300 m using Cat 5e cable
  • Dual console operation - control your system from both the local and remote USB keyboard monitor and mouse consoles
  • Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • RS-232 serial ports - allow you to connect to a serial terminal or serial devices such as touchscreens and barcode scanners
  • Sun/Mac keyboard support and emulation
  • Audio Enabled - supports stereo speakers and microphone
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes with the press of a single button

Product Details

Product TypeKVM Console/Extender
Maximum Video Resolution1920 x 1200
Maximum Operating Distance984.25 ft
USBYes
VGAYes
Network (RJ-45)Yes
Product FamilyProXime
Proprietary InterfaceYes
KVM TechnologyAnalog
Number of Computers Supported1
Number of Local Users Supported1
Number of Remote Users Supported1
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
Environmentally FriendlyYes
Environmental CertificationRoHS
Graphic ModeWUXGA
HeadphoneYes
Number of Network (RJ-45) Ports2
Number of USB Ports4
Number of VGA Ports2
Transmitter Weight (Approximate)1.08 lb
Receiver Weight (Approximate)1.06 lb
Country of OriginTaiwan
ManufacturerATEN Technology Inc
MicrophoneYes
Product ModelCE770
Product NameProxime CE770 KVM Console/Extender
Product LineProXime
Manufacturer Part NumberCE770
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The Proxime CE770 KVM Console/Extender is a USB based KVM Extender with deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. Proxime CE770 KVM Console/Extender supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The Proxime CE770 KVM Console/Extender's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

More from the Manufacturer
Package Contents
  • CE770 KVM Console/Extender
  • 2 x Power Adapter
  • 1 x Rack Mount Kit
  • 2 x Grounding Wires
  • 1 x User Manual
  • 1 x Quick Start Guide
  • 1 x USB KVM Cable (1.8m)
Limited Warranty2 Year
