• EPDU MA 38U-C IN L21-30P 24A
    EPDU MA 38U-C IN L21-30P 24A
1 1

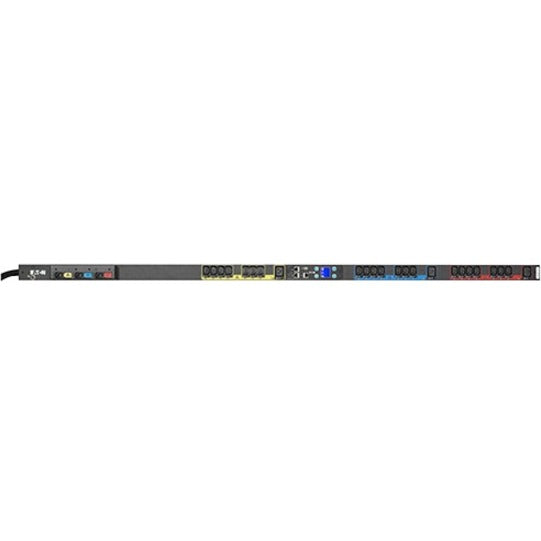

Eaton ePDU G3 Managed 38U-C IN: L21-30P 24A 3P OUT: 21xC13:3xC19

Eaton ePDU G3 Managed 38U-C IN: L21-30P 24A 3P OUT: 21xC13:3xC19

SKU: 1029984184      MFR: Eaton Corporation

Product Description

Eaton ePDU G3 Managed 38U-C IN: L21-30P 24A 3P OUT: 21xC13:3xC19 - Switched - NEMA L21-30P - 3 x IEC 60320 C19 21 x IEC 60320 C13 - 120 V AC 230 V AC - 8640 W - Network (RJ-45) - 38U - Vertical - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMA342-10

Features

  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets blade server applications and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter IEC grip outlets color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Product Details

Product TypePDU
Receptacle TypeIEC 60320 C19
Network (RJ-45)Yes
PDU TypeSwitched
Mounting OrientationVertical
Power Rating (Watt)8640 W
Receptacle Detail3 x IEC 60320 C19
Plug/Connector Detail1 x NEMA L21-30P
Country of OriginUnited States
Height66.5"
Width2.1"
Depth2.1"
Product SeriesManaged
Rack Height38U
Brand NameEaton
Plug/Connector TypeNEMA L21-30P
Input Voltage Range120 V AC - 230 V AC
Input Current24 A
ManufacturerEaton Corporation
Product ModelEMA342-10
Product NameePDU Managed EMA342-10 24-Outlets PDU
Mount TypeRack-mountable
Product LineePDU
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part NumberEMA342-10
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • IEC outlet grip plug retention secures plugs in place using standard cables
Package Contents
  • ePDU Managed EMA342-10 24-Outlets PDU
  • ePDU G3 Installation Spare Pack
  • ePDU G3 Network Spare Part Pack
Output Voltage230 V AC
Product FamilyePDU Managed
