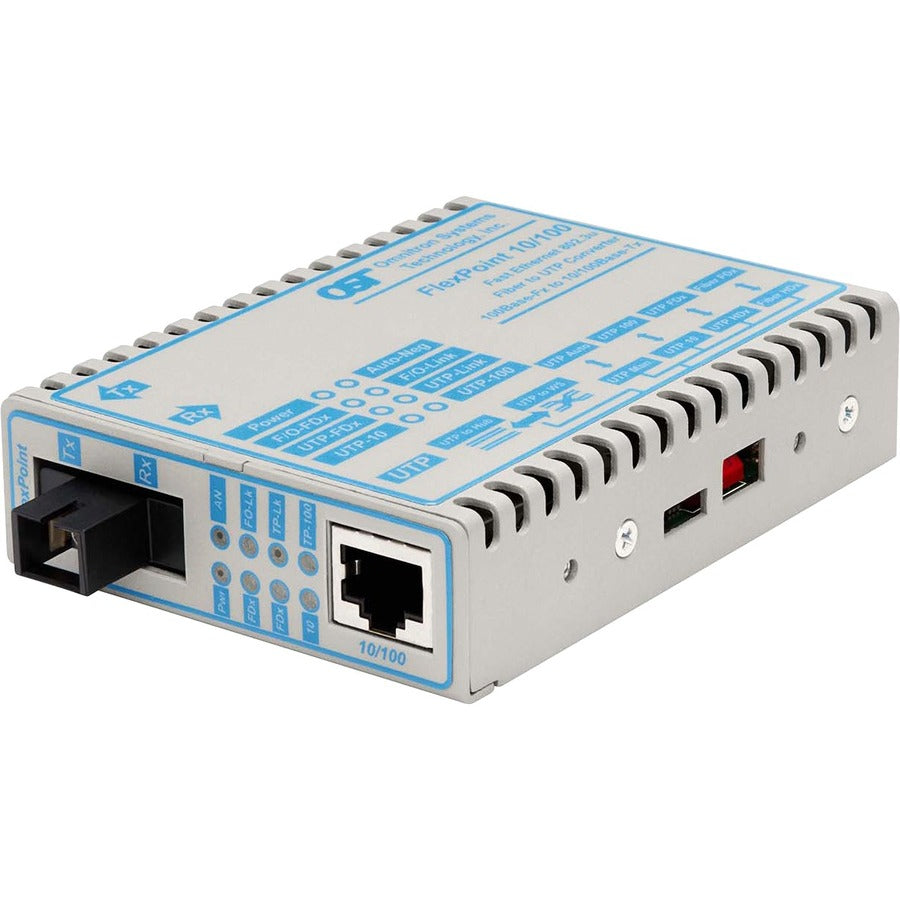

FlexPoint 10/100 Ethernet Fiber Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km

FlexPoint 10/100 Ethernet Fiber Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km

SKU: 1017376821      MFR: Omnitron Systems

Drop Ship

Product Description

FlexPoint 10/100 Ethernet Fiber Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km - 1 x 10/100BASE-TX; 1 x 100BASE-BX-D; (1550/1310); US AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 4357-21

Features

  • Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
  • Desktop installation makes it ideal for deployments outside the wiring closet

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyEthernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Product FamilyFlexPoint 10/100
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
Brand NameOmnitron Systems
Form FactorRack-mountable
Network Technology1000Base-T
Maximum Distance Supported12.43 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Cable Standard9/125 µm
Fiber Optic Wavelength1550 nm
Country of OriginUnited States
Height1"
Width3"
Depth4"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX and 100BASE-FX
Product Series10/100
ManufacturerOmnitron Systems
Product Model4357-2x
Product NameFlexPoint 10/100 SC Single-Mode Single-Fiber 15/13 20km US AC Powered
Package TypeRetail
Product LineFlexPoint
Input Voltage120 V AC
Manufacturer Part Number4357-21
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.

The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.

When configured for auto-negotiation the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.

The fiber port supports fixed-fiber connectors (SC ST or LC) and Small Form Pluggable (SFP) transceivers enabling easy adaptability to different fiber types distances and wavelengths. The FlexPoint 10/100 supports multimode single-mode single-mode single-fiber in standard and CWDM wavelengths.

Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power port activity and link status speed and duplex modes.
Package Contents
  • FlexPoint 10/100 SC Single-Mode Single-Fiber 15/13 20km US AC Powered US Power Supply - 120Volt / 60Hz
  • User Manual
Limited WarrantyLifetime
Additional Information

Input Voltage:

  • 5-32VDC via 2.5mm barrel (0.5A @ 9VDC)
  • 5VDC via Molex connector (0.8A @ 5VDC)
  • 100-120VAC/60Hz (0.06A @ 120VAC)
Weight (Approximate)6 oz
View full details
$491.33 USD
$491.33 USD
Sale Sold out

Shipping calculated at checkout.

Update



Free shipping on orders over $99.

Easy Returns! No restocking fee for 90 days.
