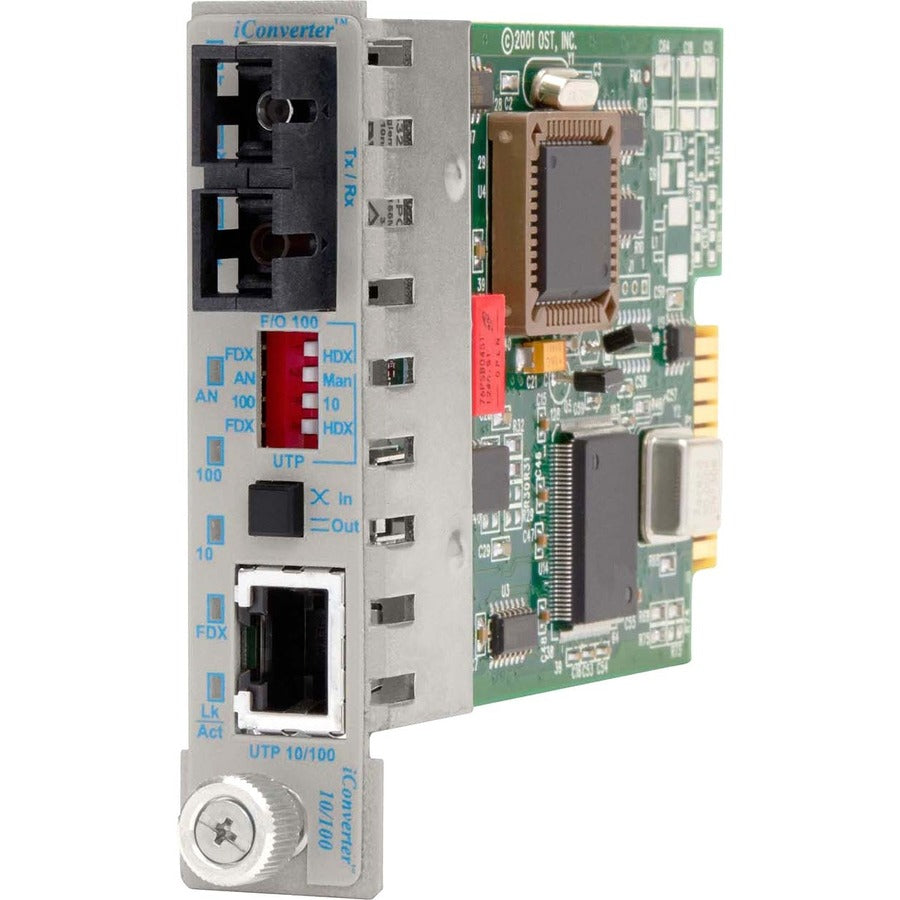

iConverter 10/100 Ethernet Fiber Media Converter RJ45 SC Single-Mode 120km Module

iConverter 10/100 Ethernet Fiber Media Converter RJ45 SC Single-Mode 120km Module

SKU: 10048018      MFR: Omnitron Systems

GTIN: 0800975023987

Product Description

iConverter 10/100 Ethernet Fiber Media Converter RJ45 SC Single-Mode 120km Module - 1 x 10/100BASE-TX; 1 x 100BASE-ZX; Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8383-3

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
  • With Wall mounting feature you can conveniently install the device while keeping the wires and cables organized

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyEthernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1550 nm
Country of OriginUnited States
Height2.8"
Width1"
Depth4.5"
Product Series10/100
Brand NameOmnitron Systems
Form FactorRail-mountable
ManufacturerOmnitron Systems
Product Model8383-3-x
Product NameiConverter 10/100 SC Single-Mode 120km Plug-In Module
Network Technology10/100Base-TX
Package TypeRetail
Power Consumption3 W
Product LineiConverter
Manufacturer Part Number8383-3
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing Information

The iConverter 10/100 manageable media converter is a member of the modular iConverter product family. It provides UTP to Fiber conversion as well as rate conversion between 10BASE-T or 100BASE-Tx and 100BASE-Fx fiber. The 10/100 features user-selectable Link Propagate Link Segment and Remote Fault Detection modes to facilitate quick fault detection isolation and reporting.

  • UTP port with 10/100 automatically supports Half or Full-Duplex auto-negotiation with a manual crossover switch
  • User-selectable link fault detection modes facilitate quick fault detection isolation and reporting
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable in 19-Module 5-Module 2-Module or 1-Module chassis
  • Wide Temperature models available with temperature range of -40 to +60" C
  • Lifetime Warranty and free 24/7 Technical Support
Maximum Distance Supported74.56 Mile
Package Contents
  • iConverter 10/100 SC Single-Mode 120km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Certifications & Standards
  • EIA/TIA 568A/B

Compliance:

  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX and 100BASE-FX
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
Additional Information
  • Hot-swappable
  • Wide Temperature range of -40 to +60 C
  • Backplane Ethernet ports for connectivity to adjacent modules
  • User-selectable link fault detection modes facilitate quick fault detection isolation and reporting

Controls:

  • UTP X-over
  • LS/LP
  • RFD
  • Auto/Man
  • 10/100
  • FD/HD
Product FamilyiConverter 10/100
