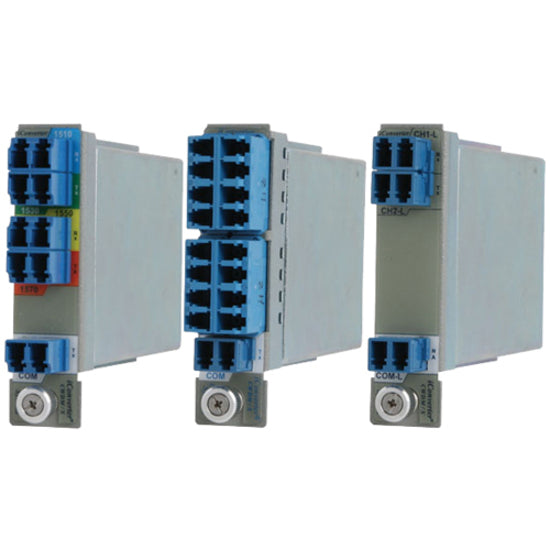

iConverter CWDM 4-Ch DF with 1310 PB Mux/Demux

iConverter CWDM 4-Ch DF with 1310 PB Mux/Demux

SKU: 1014391314      MFR: Omnitron Systems

GTIN: 0800975022065

Product Description

iConverter CWDM 4-Ch DF with 1310 PB Mux/Demux - 4 CWDM Channels 1470 1490 1590 1690 and 1310 Pass Band Dual fiber Mux/Demux

Manufacturer : Omnitron Systems

Manufacturer Part No : 8860-1

Product Details

Product TypeData Multiplexer/Demultiplexer
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Data Transfer Rate10 Gbit/s
Ethernet Technology10 Gigabit Ethernet
Management PortNo
Number of Data Channels5
Number of LC Ports6
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
LC Port TypeDuplex
Fiber Optic Wavelength1470 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Connectivity TechnologyWired
Product SeriesMUX/DEMUX
Rack Height2U
Brand NameOmnitron Systems
Form FactorPlug-in Module
ManufacturerOmnitron Systems
Product Model8860-x
Product NameiConverter CWDM 4-Channel (1470 1490 1590 1610) with 1310 PB DF Mux/Demux
Product LineiConverter
Manufacturer Part Number8860-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationOmnitron System's iConverter 8860-1 is an 4-Channel CWDM Multiplexer and Demultiplexer plug-in module that supports ITU-T G.694.2 Wavelengths 1470 1490 1590 1610 and a 1310 Pass Band(PB) port. The iConverter 4-Channel CWDM MUX is designed to multiplex up to 4 wavelengths over single-mode fiber and occupies a single slot in an iConverter Chassis.
Omnitron System's CWDM/X modules are protocol and rate transparent allowing different services of up to 10Gbps per wavelength in point-to-point or protected ring topologies. They provide ideal solution to expand the capacity of existing fiber infrastructure or consolidate multiple fiber strands in enterprise data center interconnectivity government/military and Service provider's transport and access networks.
- Compact form factor yields one of the highest port densities in the industry with up to 120 ports in a 2U chassis
- Scalable to 8 or 16 channels using the expansion port with an extra multiplexer
- Protocol transparent to combine individual wavelengths for services ranging from Ethernet Fibre Channel EPON TDM and other protocols
- Minimal and uniform optical loss facilitates predictable network planning and efficient use of optical power budget.
- Seamless integration with other iConverter media converters and chassis for multi-service platforms
- Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
- One (1) Year Warranty and Free 24/7 Technical Support

Multiple multiplexers can be cascaded to combine 8 12 or 16 wavelengths.
Package Contents
  • iConverter CWDM 4-Channel (1470 1490 1590 1610) with 1310 PB DF Mux/Demux
  • User Manual
Limited Warranty1 Year
Weight (Approximate)12 oz
