• 4T1M SF MUX 4X T1/E1 +10/100
    4T1M SF MUX 4X T1/E1 +10/100
1 1

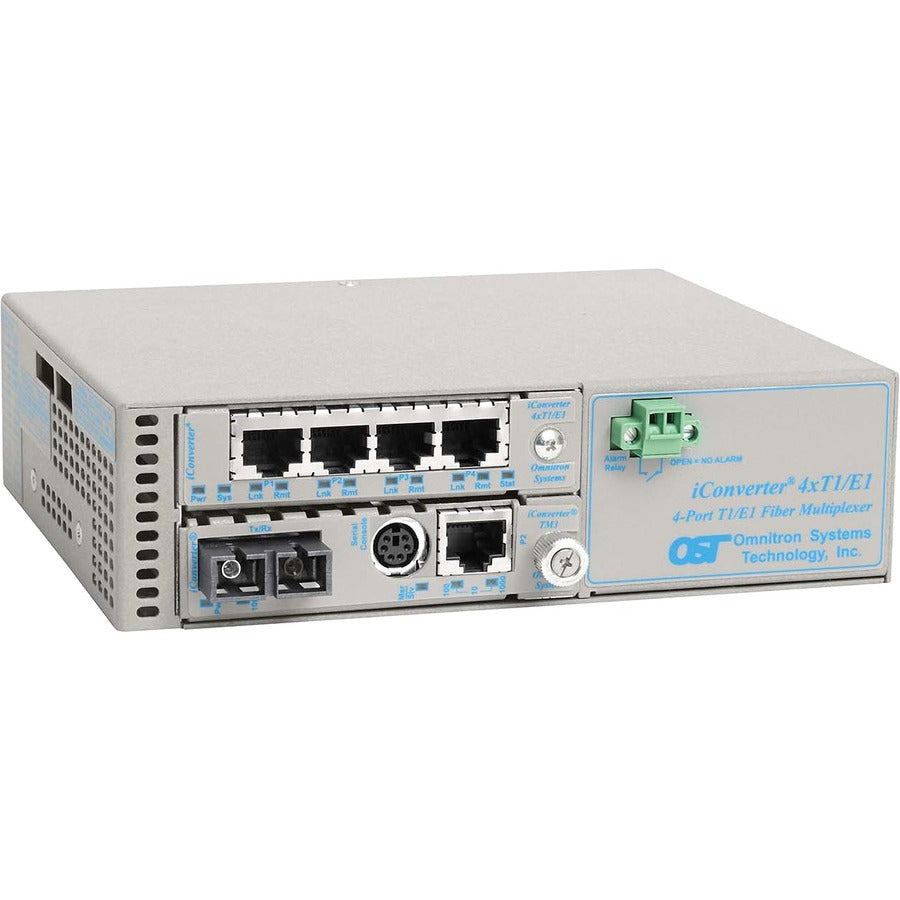

iConverter MUX/M Ethernet + 4xT1/E1 Fiber Multiplexer SC Single-Mode 12km

iConverter MUX/M Ethernet + 4xT1/E1 Fiber Multiplexer SC Single-Mode 12km

SKU: 1017180251      MFR: Omnitron Systems

Product Description

iConverter MUX/M Ethernet + 4xT1/E1 Fiber Multiplexer SC Single-Mode 12km - 4 x T1/E1 (RJ-48) + 1 x 10/100/1000BASE-T to 1 x SC Single-Mode Univ. AC Powered Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8823N-1-B

Product Details

Product TypeData Multiplexer
Maximum Data Transfer Rate1 Gbit/s
Number of Data Channels4
Media Type SupportedTwisted Pair
Brand NameOmnitron Systems
Form FactorRack-mountable
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyEthernet
Number of Network (RJ-45) Ports1
Network Technology Supported10/100/1000Base-T
Country of OriginUnited States
Height1.9"
Width6.7"
Depth5.5"
Product SeriesT1/E1 MUX/M
ManufacturerOmnitron Systems
Product Model8823N-1-x
Product NameiConverter MUX/M SC Single-Mode 12km Univ. AC Powered
Product LineiConverter
Manufacturer Part Number8823N-1-B
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter 4xT1/E1 MUX/M multiplexes up to four T1/E1s and Ethernet onto a fiber optic transport link and features remotely managed testing and configuration capabilities.

The iConverter 4xT1/E1 MUX/M operates in a back-to-back configuration with one multiplexer at each end of the fiber transport link. The 4xT1/E1 MUX/M can be used in applications where services from legacy TDM equipment require transport across long distances that exceed the reach or capacity of copper. This includes applications such as T1/E1 extension mobile backhaul and building-to-building PBX connectivity making it ideal for Enterprise Telecom and Utility industries.
Package Contents
  • iConverter MUX/M SC Single-Mode 12km Univ. AC Powered
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)2.50 lb
Management PortYes
Number of SC Ports1
Fiber Mode SupportedSingle-mode
Number of RJ-48 Ports4
SC Port TypeDuplex
Fiber Optic Wavelength1310 nm
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Connectivity TechnologyWired
Input Voltage240 V AC
Maximum Distance Supported7.46 Mile
Additional Information

Input Voltage:

  • 100-240VAC/50-60Hz (0.05A @ 120VAC)
View full details
$2,950.00 USD
$2,950.00
Sale Sold out

Availability: Item Backordered

This item will ship once it is in stock. TEKMENTUM cannot guarantee an in-stock date.


Update


Shipping calculated at checkout.
