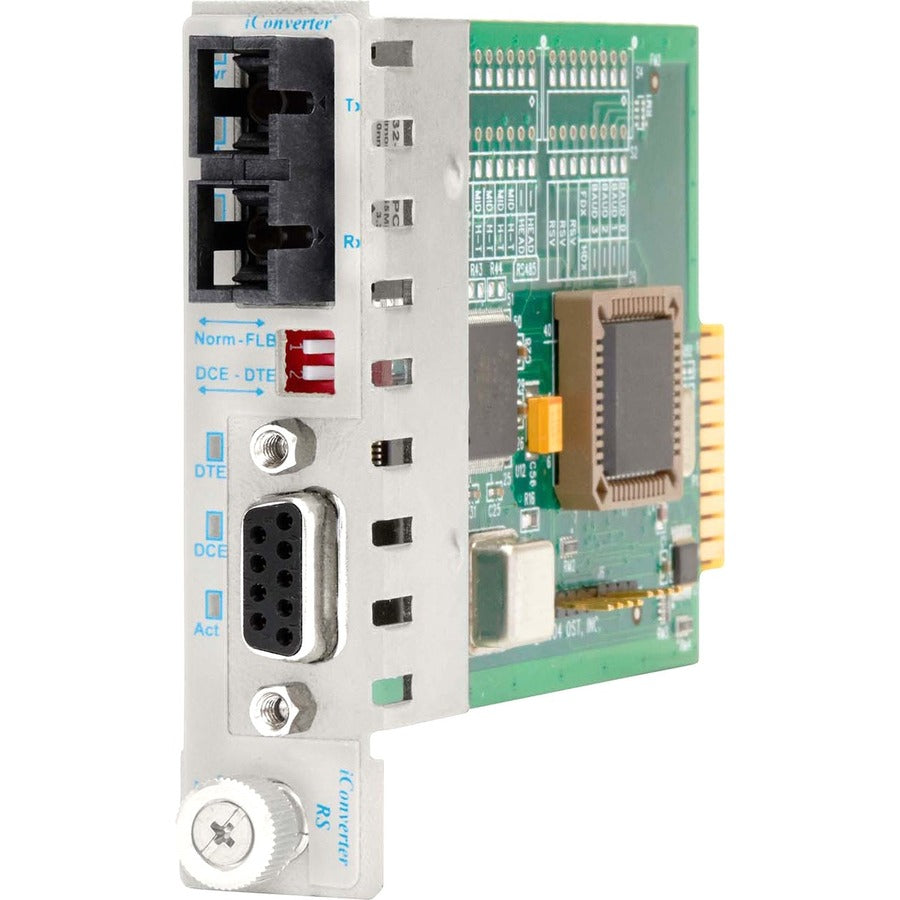

iConverter RS-232 Serial Fiber Media Converter DB-9 SC Single-Mode 120km Module

iConverter RS-232 Serial Fiber Media Converter DB-9 SC Single-Mode 120km Module

SKU: 1017524239      MFR: Omnitron Systems

GTIN: 0800975023871

Product Description

iConverter RS-232 Serial Fiber Media Converter DB-9 SC Single-Mode 120km Module - 1 x RS-232; 1 x SC Single-Mode; Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8763-3

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1550 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Product SeriesRS232
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model8763-3-x
Product NameiConverter RS232 DB-9 SC Single-Mode 120km Plug-In Module
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8763-3
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe Omnitron iConverter RS232 is a manageable serial RS-232 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends the serial signals up to 120km and is immune from electrical and magnetic interference.

The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.

The RS232 automatically detects the signal baud rate of the connected serial device ranging from 110 to 921600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.
Maximum Distance Supported74.56 Mile
Package Contents
  • iConverter RS232 DB-9 SC Single-Mode 120km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)8 oz
Number of Serial Ports1
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
Additional Information

Serial Port Type:

  • DB-9 (female)
Product FamilyiConverter RS232
