• ICONVERTER T3/E3 COAX TO SC/SM
    ICONVERTER T3/E3 COAX TO SC/SM
1 1

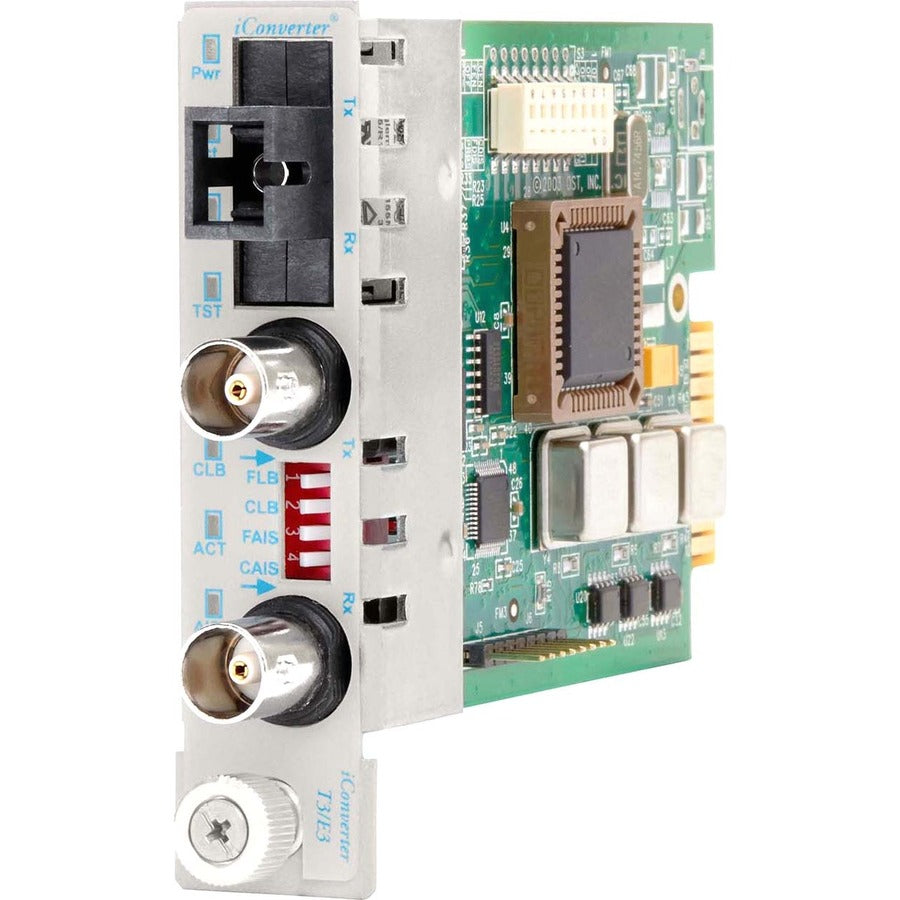

iConverter T3/E3 Single-Fiber Media Converter Coaxial SC Single-mode 20km BiDi Module

iConverter T3/E3 Single-Fiber Media Converter Coaxial SC Single-mode 20km BiDi Module

SKU: 1010019087      MFR: Omnitron Systems

GTIN: 0800975021495

Product Description

iConverter T3/E3 Single-Fiber Media Converter Coaxial SC Single-mode 20km BiDi Module - 1 x T3/E3/DS-3; 1 x SC Single-mode Single-Fiber (1310/1550); Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8750-1

Features

  • Expand your network capacity and fulfill requirement with this 3 transceiver/media converter
  • Supports coaxial cable for laboratory and industrial environment requiring up to 500 meter coverage and low bandwidth
  • With T3/E3 technology get up to 34.368Mbps (E-carrier) or 44.736Mbps (T-carrier) data transfer rate over service provider link
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Product FamilyiConverter T3/E3
Number of SC Ports1
Media Type SupportedCoaxial
Fiber Mode SupportedSingle-mode
Total Number of Ports3
SC Port TypeSimplex
Brand NameOmnitron Systems
Form FactorRack-mountable
Network TechnologyT3/E3
Maximum Distance Supported12.43 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of BNC Ports2
Carrier SupportedT-carrier/E-carrier
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Product SeriesT3/E3
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
ManufacturerOmnitron Systems
Product Model8750-1-x
Product NameiConverter T3/E3 SC Single-mode Single-Fiber 13/15 20km Plug-In Module
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8750-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs multiplexers routers and video servers via fiber. T3/E3 media converters operate in pairs extending distances over fiber which improves noise immunity quality of service intrusion protection and network security.

  • Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
  • Framing independent; supports framed or unframed and channelized or fractional unchannelized data
  • Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
  • Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable and can be used in the 19-Module 5-Module 2-Module or 1-Module iConverter chassis
  • LED displays for immediate visual status of each port
  • Lifetime Warranty and free 24/7 Technical Support
Package Contents
  • iConverter T3/E3 SC Single-mode Single-Fiber 13/15 20km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)8 oz
View full details
$1,213.57 USD
$1,213.57
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

iConverter T3/E3 Single-Fiber Media Converter Coaxial SC Single-mode 20km BiDi Module - 1 x T3/E3/DS-3; 1 x SC Single-mode Single-Fiber (1310/1550); Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8750-1

Features

  • Expand your network capacity and fulfill requirement with this 3 transceiver/media converter
  • Supports coaxial cable for laboratory and industrial environment requiring up to 500 meter coverage and low bandwidth
  • With T3/E3 technology get up to 34.368Mbps (E-carrier) or 44.736Mbps (T-carrier) data transfer rate over service provider link
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Product FamilyiConverter T3/E3
Number of SC Ports1
Media Type SupportedCoaxial
Fiber Mode SupportedSingle-mode
Total Number of Ports3
SC Port TypeSimplex
Brand NameOmnitron Systems
Form FactorRack-mountable
Network TechnologyT3/E3
Maximum Distance Supported12.43 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of BNC Ports2
Carrier SupportedT-carrier/E-carrier
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Product SeriesT3/E3
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
ManufacturerOmnitron Systems
Product Model8750-1-x
Product NameiConverter T3/E3 SC Single-mode Single-Fiber 13/15 20km Plug-In Module
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8750-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs multiplexers routers and video servers via fiber. T3/E3 media converters operate in pairs extending distances over fiber which improves noise immunity quality of service intrusion protection and network security.

  • Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
  • Framing independent; supports framed or unframed and channelized or fractional unchannelized data
  • Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
  • Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable and can be used in the 19-Module 5-Module 2-Module or 1-Module iConverter chassis
  • LED displays for immediate visual status of each port
  • Lifetime Warranty and free 24/7 Technical Support
Package Contents
  • iConverter T3/E3 SC Single-mode Single-Fiber 13/15 20km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)8 oz
