• SVR SYST M20MYP1UR 1U RACK
    SVR SYST M20MYP1UR 1U RACK
1 1

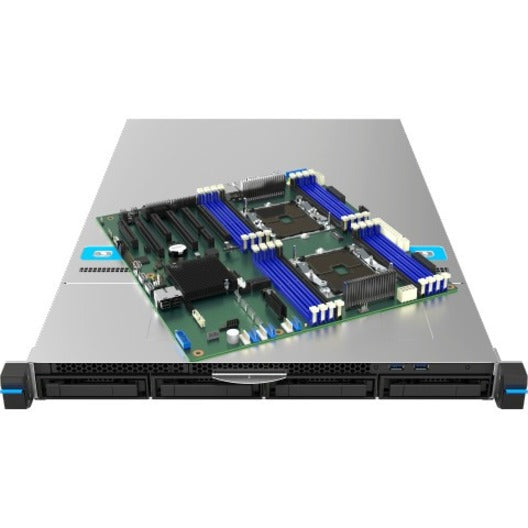

Intel Barebone System - 1U Rack-mountable - 2 x Processor Support

Intel Barebone System - 1U Rack-mountable - 2 x Processor Support

SKU: 1064157933      MFR: Intel Corporation

Product Description

Intel Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C624 Chip - 512 GB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 16 Total Memory Slots - 12Gb/s SAS RAID Supported Serial ATA Controller - 4 3.5" Bay(s) - 6 SATA Interface(s) - Processor Support (Xeon Bronze Xeon Silver Xeon Gold Xeon Platinum) - Ethernet - 5 USB 3.0 Port(s) - 1 x 750 W - 3 Year

Manufacturer : Intel Corporation

Manufacturer Part No : M20MYP1UR

Features

  • Perform computational tasks effectively accrediting the Xeon Bronze processor
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power resulting in an optimal computer performance and improved memory heat dissipation
  • Optimize workflows by sharing the resources of the workstation using Ethernet connectivity
  • Can connect up to 7 USB peripherals
  • 12Gb/s SAS interface for high speed and reliability

Product Details

Number of Power Supplies Installed1
Number of Total Memory Slots16
Number of Processors Supported2
RAID SupportedYes
Ethernet TechnologyEthernet
Number of Total Expansion Bays4
Number of 3.5" Bays4
Number of PCI Express x16 Slots2
Maximum Power Supply Wattage750 W
Total Number of USB Ports7
Number of USB 3.0 Ports5
Memory StandardDDR4-2933/PC4-23466
Height1.7"
Width17.3"
Depth26"
Memory TechnologyDDR4 SDRAM
Rack Height1U
Brand NameIntel
Form FactorRack-mountable
ManufacturerIntel Corporation
Product NameServer System M20MYP1UR
Processor SupportedXeon Bronze
Controller Type12Gb/s SAS
Manufacturer Part NumberM20MYP1UR
Manufacturer Website Addresshttp://www.intel.com
Maximum Memory Supported512 GB
Package Contents
  • Server System M20MYP1UR
  • 1 x Intel Server Chassis M20MYP
  • 1 x Intel Server Board MYP1USVB
  • 2 x 1U PCIe x16 Riser Card MYP1URISER
  • 1 x 12 Gb SAS backplane FR1304S3HSBP
  • 4 x 3.5" hot swap drive tool less carriers FXX35HSCAR2
  • 1 x Pre-installed control panel
  • 1 x 350 mm backplane I2C cable J20956 -xxx
  • 1 x Mini SAS HD cable AXXCBL650HDHD
  • 1 x Backplane power cable
  • 1 x 1U Server airduct MYP1UADUCT
  • 6 x 40 x 28 mm managed system fans
  • 1 x 750W power supply module FXX750PCRPS
  • 2 x CPU passive heat sinks 51 fins AXXSTPHMKIT1U
  • 2 x CPU heat sink "No CPU" label inserts
  • 2 x Standard CPU Carriers H72853 -xxx
Limited Warranty3 Year
Product TypeBarebone System
Number of PCI Slots2
Number of SATA Interfaces6
ChipsetIntel C624
64-bit ProcessingYes
Chipset ManufacturerIntel
Chipset ModelC624
View full details
$1,932.57 USD
$1,932.57
Sale Sold out

Availability: Item Backordered

This item will ship once it is in stock. TEKMENTUM cannot guarantee an in-stock date.
