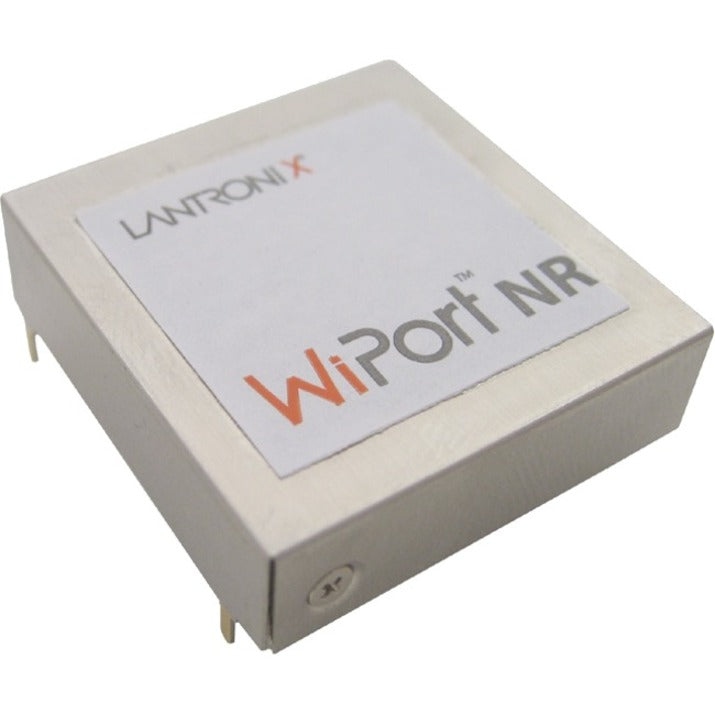

• Lantronix WiPort NR Device Server
    Lantronix WiPort NR Device Server
1 1

Lantronix WiPort NR Device Server

Lantronix WiPort NR Device Server

SKU: 1069194993      MFR: Lantronix Inc

GTIN: 783384231115

Product Description

Lantronix WiPort NR Device Server - Twisted Pair - 1 x Network (RJ-45) - 2 x Serial Port - 100Base-TX - Fast Ethernet

Manufacturer : Lantronix Inc

Manufacturer Part No : WP5001000-01

Features

  • Complete Ethernet Network Processor Module
  • Serial to Ethernet conversion
  • Pin Compatible with Lantronix WiPort 802.11 Module
  • Dual serial ports
  • SPI I2C and CAN ports available
  • 11 General Purpose Input/Output (GPIO) pins
  • High performance data throughput up to 921Kbps
  • Stable field proven TCP/IP protocol suite and webbased application framework
  • Available 256/128/64 Bit Rijndael AES Encryption
  • Easy configuration through a web interface

Product Details

Product TypeDevice Server
Network Standard100Base-TX
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Serial PortYes
Media Type SupportedTwisted Pair
Number of Serial Ports2
Brand NameLantronix
ManufacturerLantronix Inc
Product NameWiPort NR Device Server
Package TypeBulk
Product LineWiPort NR
Manufacturer Part NumberWP5001000-01
Manufacturer Website Addresshttp://www.lantronix.com
Marketing InformationThe WiPort NR (No Radio) is the most compact integrated solution available to add Ethernet networking to any device with a serial interface. Using this integrated hardware and software module you will add to your profits by significantly reducing product development time risk and cost.

With a high level of integration in a compact package the WiPort NR Device Server™ features a Lantronix DSTni™ x86 Ethernet Processor SoC memory a 10/100 Ethernet transceiver and dual high-speed serial ports. All of this combines to give you a complete ready-touse network enabling solution.

Total pin compatibility with Lantronix's WiPort 802.11 wireless module enables a single board design that can be either wired networking or wireless networking ready using either the WiPort NR or the WiPort.

To enable access to a local network or the Internet the WiPort NR integrates a fully developed TCP/IP network stack and OS. The WiPort NR also includes an embedded web server that can be used to remotely configure monitor or troubleshoot the attached device.

WiPort NR serves web pages to a web browser when there is a need to gather information or communicate with networked devices. The WiPort NR becomes a conduit between you and your device over the network or Internet.

The Windows-based configuration software Device Installer™ simplifies installation and setup. The WiPort NR can also be configured locally through its serial port or remotely over a network using Telnet (password-protected) or a web browser. Flash memory provides for maintenance-free nonvolatile storage of web pages and allows future system software upgrades.

Hardware & Software Description

The WiPort NR functions independently of a PC providing a complete hardware and software solution for adding Ethernet or IP connectivity to your edge devices. Within a single package this powerful device server comes with a 10/100 Ethernet transceiver a reliable and proven operating system stored in flash memory an embedded web server and a full TCP/IP protocol stack.

The WiPort NR software runs on a Lantronix DSTni Ethernet Processor SoC which has 256 KB of internal SRAM and 16 KB of boot ROM. The WiPort NR communicates to the edge device through a 3.3V logic level interface. Two MB of flash memory is included for storing firmware and web pages

The WiPort NR runs on a single 3.3V supply and has a built-in voltage supervisory circuit.

Protocol Support

The WiPort NR uses the widely accepted Transmission Control Protocol (TCP) to assure that no data is lost or duplicated and that everything sent to the connection arrives correctly at the target.
Limited Warranty2 Year
Weight (Approximate)0.78 oz
Product FamilyWiPort NR
View full details
$103.99 USD
$103.99
Sale Sold out

Dropship

Get it by Sat, Jan 11 - Thu, Jan 16


Update


Shipping calculated at checkout.

Lantronix WiPort NR Device Server - Twisted Pair - 1 x Network (RJ-45) - 2 x Serial Port - 100Base-TX - Fast Ethernet

Manufacturer : Lantronix Inc

Manufacturer Part No : WP5001000-01

Features

  • Complete Ethernet Network Processor Module
  • Serial to Ethernet conversion
  • Pin Compatible with Lantronix WiPort 802.11 Module
  • Dual serial ports
  • SPI I2C and CAN ports available
  • 11 General Purpose Input/Output (GPIO) pins
  • High performance data throughput up to 921Kbps
  • Stable field proven TCP/IP protocol suite and webbased application framework
  • Available 256/128/64 Bit Rijndael AES Encryption
  • Easy configuration through a web interface

Product Details

Product TypeDevice Server
Network Standard100Base-TX
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Serial PortYes
Media Type SupportedTwisted Pair
Number of Serial Ports2
Brand NameLantronix
ManufacturerLantronix Inc
Product NameWiPort NR Device Server
Package TypeBulk
Product LineWiPort NR
Manufacturer Part NumberWP5001000-01
Manufacturer Website Addresshttp://www.lantronix.com
Marketing InformationThe WiPort NR (No Radio) is the most compact integrated solution available to add Ethernet networking to any device with a serial interface. Using this integrated hardware and software module you will add to your profits by significantly reducing product development time risk and cost.

With a high level of integration in a compact package the WiPort NR Device Server™ features a Lantronix DSTni™ x86 Ethernet Processor SoC memory a 10/100 Ethernet transceiver and dual high-speed serial ports. All of this combines to give you a complete ready-touse network enabling solution.

Total pin compatibility with Lantronix's WiPort 802.11 wireless module enables a single board design that can be either wired networking or wireless networking ready using either the WiPort NR or the WiPort.

To enable access to a local network or the Internet the WiPort NR integrates a fully developed TCP/IP network stack and OS. The WiPort NR also includes an embedded web server that can be used to remotely configure monitor or troubleshoot the attached device.

WiPort NR serves web pages to a web browser when there is a need to gather information or communicate with networked devices. The WiPort NR becomes a conduit between you and your device over the network or Internet.

The Windows-based configuration software Device Installer™ simplifies installation and setup. The WiPort NR can also be configured locally through its serial port or remotely over a network using Telnet (password-protected) or a web browser. Flash memory provides for maintenance-free nonvolatile storage of web pages and allows future system software upgrades.

Hardware & Software Description

The WiPort NR functions independently of a PC providing a complete hardware and software solution for adding Ethernet or IP connectivity to your edge devices. Within a single package this powerful device server comes with a 10/100 Ethernet transceiver a reliable and proven operating system stored in flash memory an embedded web server and a full TCP/IP protocol stack.

The WiPort NR software runs on a Lantronix DSTni Ethernet Processor SoC which has 256 KB of internal SRAM and 16 KB of boot ROM. The WiPort NR communicates to the edge device through a 3.3V logic level interface. Two MB of flash memory is included for storing firmware and web pages

The WiPort NR runs on a single 3.3V supply and has a built-in voltage supervisory circuit.

Protocol Support

The WiPort NR uses the widely accepted Transmission Control Protocol (TCP) to assure that no data is lost or duplicated and that everything sent to the connection arrives correctly at the target.
Limited Warranty2 Year
Weight (Approximate)0.78 oz
Product FamilyWiPort NR
