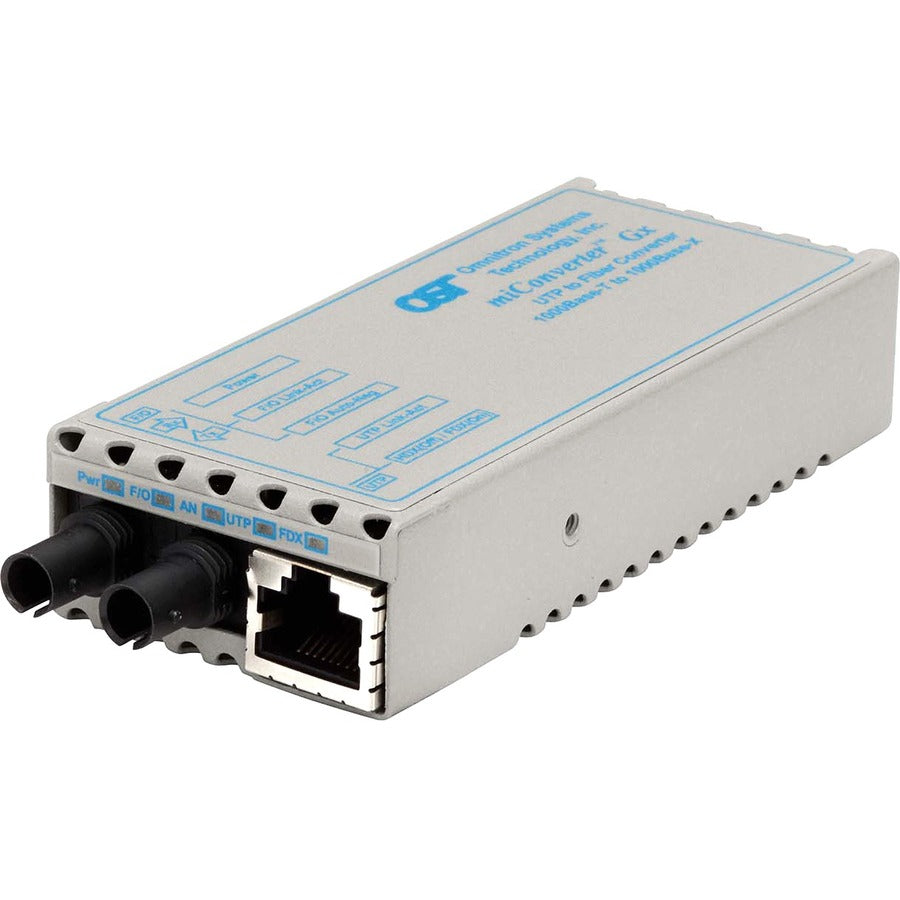

miConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km

miConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km

SKU: 1013299304      MFR: Omnitron Systems

GTIN: 800975021488

Product Description

miConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km - 1 x 1000BASE-T 1 x 1000BASE-LX US AC Powered Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 1201-1-1

Features

  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Parallel PortNo
Management PortNo
Digital AudioNo
Number of ST Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Digital Audio/VideoNo
Total Number of Ports2
ST Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height0.8"
Width1.7"
Depth4.1"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
Product SeriesGx
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model1201-1-x
Product NamemiConverter Gx ST Single-Mode 12km US AC Powered
Network Technology1000Base-T
Package TypeRetail
Product LinemiConverter
Input Voltage120 V AC
Manufacturer Part Number1201-1-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe miConverter Gx is a miniature 1000BASE-T UTP copper to 1000BASE-X fiber Gigabit Ethernet media converter. The miConverter Gx provides cost-effective fiber connectivity from Gigabit switches to diagnostic equipment desktop and laptop computers.

The miConverter Gx is the first Gigabit media converter powered by a USB port (1.0 1.1 and 2.0). An optional USB Power Adaptor Cable is available which reduces the module's weight and eliminates the need to tether the miConverter Gx to an electrical outlet.

  • Miniature Gigabit Ethernet media converter
  • Supports 1000BASE-T 1000BASE-X and the IEEE 802.3 specification
  • Plug-and-Play capability
  • USB power via optional Power Adapter Cable
  • Supports Full/Half-Duplex fiber optic auto-negotiation
  • Multimode and single-mode fiber options
  • LED indicators for UTP and fiber status
  • Domestic Universal and Country/Region specific power supply options
  • Wall-mount with optional mounting brackets or included Velcro® strips
  • Small and lightweight only 5 ounces (without power supply)
  • Cost-effective
  • Lifetime Warranty and free 24/7 Technical Support
Maximum Distance Supported7.46 Mile
Package Contents
  • miConverter Gx ST Single-Mode 12km US AC Powered
  • US Power Supply - 120Volt / 60Hz
  • Velcro Strip
  • User Manual
Limited WarrantyLifetime
Additional Information

Input Voltage:

  • 5-15VDC via 2.5mm barrel (0.2A @ 5VDC)
  • 100-120VAC/60Hz (0.03A @ 120VAC)
Weight (Approximate)5 oz
Product FamilymiConverter Gx
