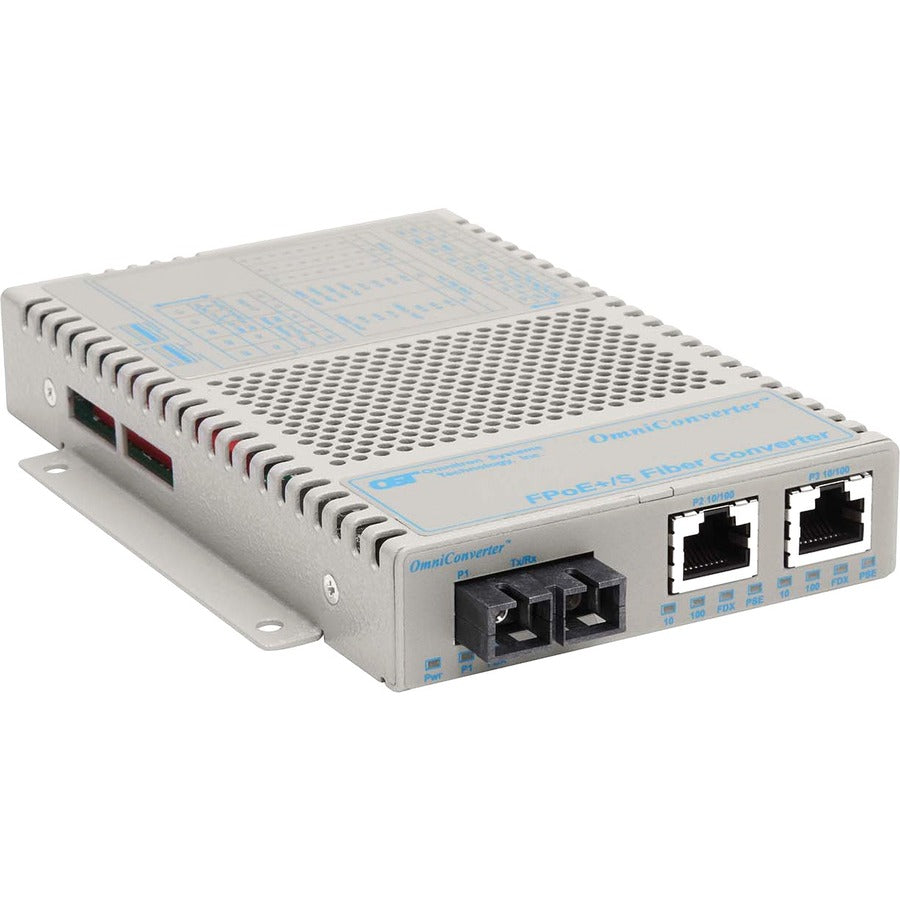

OmniConverter 10/100 PoE+ Ethernet Fiber Media Converter Switch RJ45 SC Multimode 5km Wide Temp

OmniConverter 10/100 PoE+ Ethernet Fiber Media Converter Switch RJ45 SC Multimode 5km Wide Temp

SKU: 1018584674      MFR: Omnitron Systems

GTIN: 0800975024663

Product Description

OmniConverter 10/100 PoE+ Ethernet Fiber Media Converter Switch RJ45 SC Multimode 5km Wide Temp - 2 x 10/100BASE-TX; 1 x 100BASE-FX; US AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 9322-0-21W

Features

  • Expand your network capacity and fulfill requirement with this 3 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyEthernet
Network (RJ-45)Yes
Number of PoE+ (RJ-45) Ports2
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports3
SC Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height1"
Width4.5"
Depth6"
Product SeriesFPoE+/S
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model9322-0-x
Product NameOmniConverter FPoE+/S 2x PoE+ SC Multimode 5km US AC Powered Wide Temp
Network Technology10/100Base-TX
Package TypeRetail
Product LineOmniConverter
Manufacturer Part Number9322-0-21W
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter FPoE+/S models are multi-port media converters that convert 10/100BASE-T UTP to 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE) they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch and supports a variety of port configurations including single or dual UTP and SFP ports.

The OmniConverter media converters can power PDs such as VoIP phones wireless access points network cameras building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings closets etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
Maximum Distance Supported3.11 Mile
Package Contents
  • OmniConverter FPoE+/S 2x PoE+ SC Multimode 5km US AC Powered Wide Temp
  • US Power Supply - 100-240Volt / 50-60Hz
  • US AC Power Cord
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)1 lb
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX and 100BASE-FX
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
Input Voltage120 V AC
Input Voltage240 V AC
Additional Information

Input Voltage:

  • +/- 46-57VDC Isolated via 3-Pin Terminal Connector (0.54A @ 48VDC)
Product FamilyOmniConverter FPoE+/S
