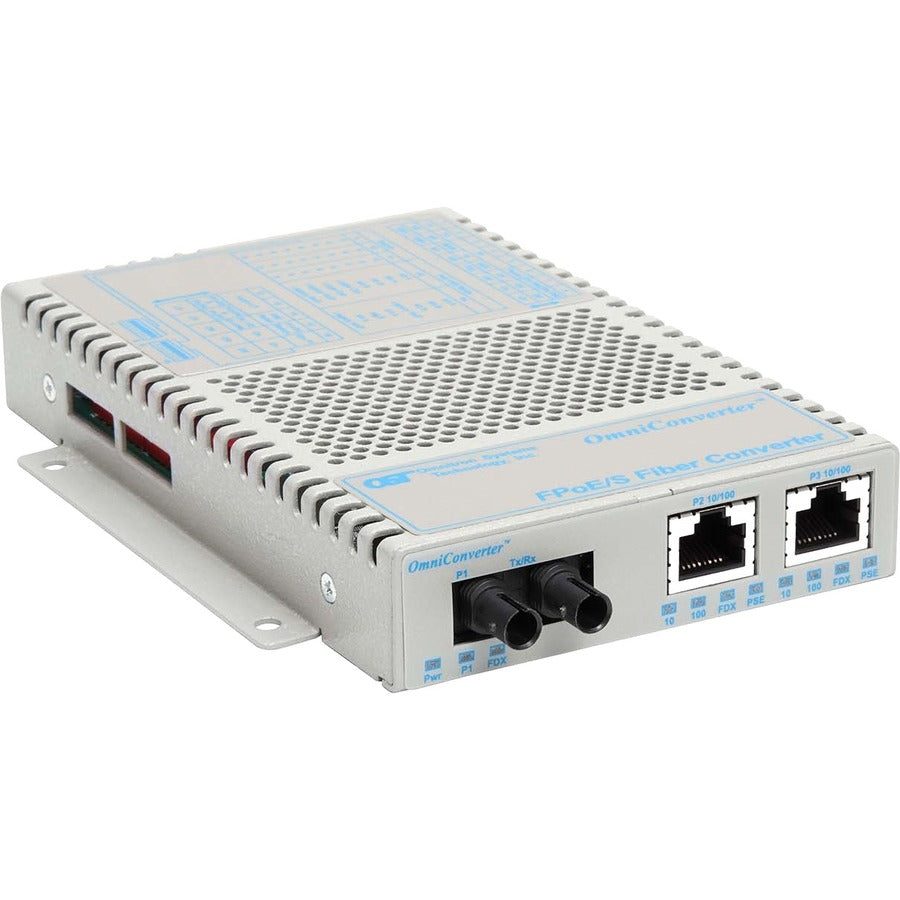

OmniConverter 10/100 PoE Ethernet Fiber Media Converter Switch RJ45 ST Single-Mode 30km

OmniConverter 10/100 PoE Ethernet Fiber Media Converter Switch RJ45 ST Single-Mode 30km

SKU: 1018229634      MFR: Omnitron Systems

GTIN: 0800975024311

Product Description

OmniConverter 10/100 PoE Ethernet Fiber Media Converter Switch RJ45 ST Single-Mode 30km - 2 x 10/100BASE-TX; 1 x 100BASE-FX; US AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 9301-1-21

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
  • Rackmountable feature for convenient and safe installation of device

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyEthernet
Network (RJ-45)Yes
Product FamilyOmniConverter FPoE/S
Number of PoE (RJ-45) Ports2
Number of ST Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports3
ST Port TypeDuplex
Brand NameOmnitron Systems
Form FactorRack-mountable
Network Technology10/100Base-TX
Maximum Distance Supported18.64 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height1"
Width4.5"
Depth6"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX and 100BASE-FX
  • IEEE 802.3af PoE
Product SeriesFPoE/S
ManufacturerOmnitron Systems
Product Model9301-1-x
Product NameOmniConverter FPoE/S 2x PoE ST Multimode 30km US AC Powered
Package TypeRetail
Product LineOmniConverter
Input Voltage120 V AC
Input Voltage240 V AC
Manufacturer Part Number9301-1-21
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter FPoE/S models are multi-port media converters that convert 10/100BASE-T UTP to 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE) they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch and supports a variety of port configurations including single or dual UTP and SFP ports.

The OmniConverter media converters can power PDs such as VoIP phones wireless access points network cameras building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings closets etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
Package Contents
  • OmniConverter FPoE/S 2x PoE ST Multimode 30km US AC Powered
  • US Power Supply - 100-240Volt / 50-60Hz
  • US AC Power Cord
  • User Manual
Limited WarrantyLifetime
Additional Information

Input Voltage:

  • 46-57VDC via 2.1mm barrel (0.80A @ 48VDC)
  • 100-240VAC/50-60Hz (0.35A @ 120VAC)
Weight (Approximate)1 lb
