• OMNICONVERTER 10G/SX DC EXT
    OMNICONVERTER 10G/SX DC EXT
1 1

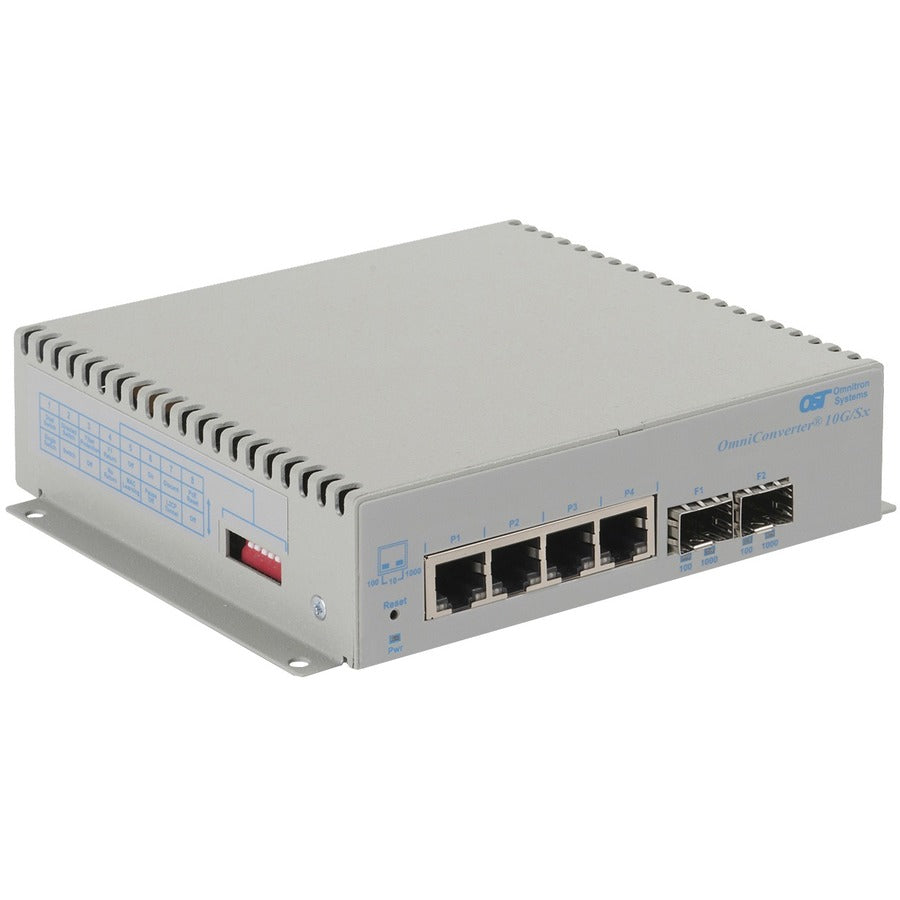

Omnitron Systems OmniConverter 10G/Sx 2xSFP/SFP+ 4xRJ-45 1xDC Powered Extended Temp

Omnitron Systems OmniConverter 10G/Sx 2xSFP/SFP+ 4xRJ-45 1xDC Powered Extended Temp

SKU: 1065692946      MFR: Omnitron Systems

GTIN: 800975042261

Product Description

Omnitron Systems OmniConverter 10G/Sx 2xSFP/SFP+ 4xRJ-45 1xDC Powered Extended Temp - 6 Ports - 2 Layer Supported - Modular - Optical Fiber Twisted Pair - Wall Mountable DIN Rail Mountable Shelf Mountable Rack-mountable - 5 Year Limited Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 2901-0-24-9Z

Features

  • Create your own LAN and connect your PC laptop printer and other peripherals with the help of 6 ports
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Gigabit Ethernet port for ultra-fast network speeds
  • Layer 2 switch provides a complete lineup of features including IGMP snooping port mirroring and spanning tree
  • The unmanaged switch provides a quick easy and cost-saving way to add wired networking to your home office or small business; no intervention needed
  • With Wall mounting feature you can conveniently install the switch while keeping the wires and cables organized

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationREACH
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Number of SFP+ Slots2
ModularYes
Uplink PortYes
Media Type SupportedOptical Fiber
Total Number of Network Ports6
Port/Expansion Slot Details4 x Gigabit Ethernet Network
Country of OriginUnited States
Height1.5"
Width6.3"
Depth5.2"
Expansion Slot TypeSFP+
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3ae
Safety:
  • UL 60950-1 UL-62368-1
  • IEC 62368:2014 /A11:2017
  • IEC 60950-1:2005+A1:2009
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013
  • CAN/CSA C22.2 No. 60950-1
  • CAN/CSA C22.2 No. 62368-1-14
  • CE Mark
EMC: EN 55032/EN 55024 CE Emissions/Immunity

EMI: CISPR 32 FCC 47 Part 15 Subpart B Class A

EMS:
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV; Signal:0.5 kV
  • IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: Signal: 3 V
  • IEC 61000-4-8 ( Magnetic Field)
  • IEC 61000-4-11
IP Rating: IP20 Protection
Product Series10G/Sx
Brand NameOmnitron Systems
Plug/Connector TypeTerminal Block (2 Wire)
Form FactorWall Mountable
ManufacturerOmnitron Systems
Product Model2901-0-24-9Z
Product NameOmniConverter 10G/Sx 2xSFP/SFP+ 4xRJ-45 1xDC Powered Extended Temp
Network Technology10/100/1000Base-T
Package TypeRetail
Product LineOmniConverter
Input Voltage12 V DC
Input Voltage57 V DC
Manufacturer Part Number2901-0-24-9Z
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter 10G/Sx is an unmanaged compact Ethernet switch that features two 1/10G uplink ports and four or eight 10/100/1000 RJ-45 copper user ports. The OmniConverter 10G/Sx enables network distance extension with fiber cabling.

The OmniConverter 10G/Sx is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The OmniConverter 10G/Sx supports Directed Switch mode which directs multicast traffic (such as video) only to the appropriate uplink port preventing the multicast video traffic from flooding other network ports.

The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The switches support Dual Device mode that enables the 10G/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode the 10G/Sx provides separate and independent data traffic paths between each uplink port and a group of user ports.

The 10G/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber dual or single-fiber and standard or CWDM wavelengths.

The compact OmniConverter 10G/Sx Ethernet switches can be wall mounted rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. The OmniConverter Ethernet switch models are available with 2-Pin DC Terminal or external 100-240V AC power adapters.
Packaged Quantity1
Power SourceDC
Package Contents
  • OmniConverter 10G/Sx 2xSFP/SFP+ 4xRJ-45 1xDC Powered Extended Temp
  • User Manual
Limited Warranty5 Year
Layer Supported2
Additional InformationOperating Temperature Range: -40 to +75 deg C
Weight (Approximate)1.50 lb
Product FamilyOmniConverter 10G/Sx
View full details
$1,739.99 USD
$1,739.99
Sale Sold out

Back Order

Get it by Mon, Jan 26 - Sat, Jan 31
