• OMNICONVERTER 10G/SX SWITCH DC
    OMNICONVERTER 10G/SX SWITCH DC
1 1

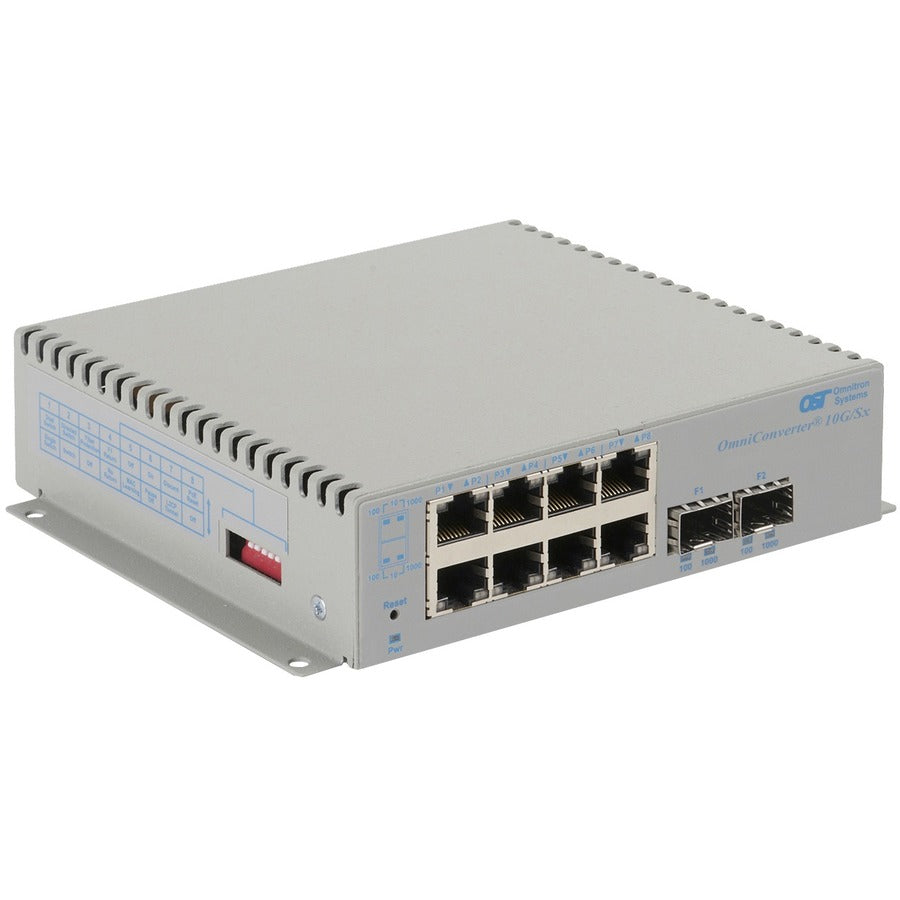

Omnitron Systems OmniConverter 10G/Sx 2xSFP/SFP+ 8xRJ-45 1xDC Powered Commercial Temp

Omnitron Systems OmniConverter 10G/Sx 2xSFP/SFP+ 8xRJ-45 1xDC Powered Commercial Temp

SKU: 1065692943      MFR: Omnitron Systems

GTIN: 800975042230

Product Description

Omnitron Systems OmniConverter 10G/Sx 2xSFP/SFP+ 8xRJ-45 1xDC Powered Commercial Temp - 10 Ports - 2 Layer Supported - Modular - Optical Fiber Twisted Pair - Wall Mountable DIN Rail Mountable Shelf Mountable Rack-mountable - 5 Year Limited Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 2901-0-28-9

Features

  • Features 10 networking ports to easily establish a local network or expand your existing one
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • With leading Layer 2 support experience enhanced convenience secure business operations and a borderless network experience
  • The unmanaged switch provides a quick easy and cost-saving way to add wired networking to your home office or small business; no intervention needed
  • With Wall mounting feature you can conveniently install the switch while keeping the wires and cables organized

Product Details

Product TypeEthernet Switch
ManageableNo
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Product FamilyOmniConverter 10G/Sx
Media Type SupportedOptical Fiber
Total Number of Network Ports10
Expansion Slot TypeSFP+
Brand NameOmnitron Systems
Plug/Connector TypeTerminal Block (2 Wire)
Form FactorWall Mountable
Power SourceDC
Layer Supported2
Environmentally FriendlyYes
Environmental CertificationREACH
Number of SFP+ Slots2
ModularYes
Uplink PortYes
Port/Expansion Slot Details8 x Gigabit Ethernet Network
Country of OriginUnited States
Height1.5"
Width6.3"
Depth5.2"
Product Series10G/Sx
ManufacturerOmnitron Systems
Product Model2901-0-28-9
Product NameOmniConverter 10G/Sx 2xSFP/SFP+ 8xRJ-45 1xDC Powered Commercial Temp
Network Technology10/100/1000Base-T
Package TypeRetail
Product LineOmniConverter
Input Voltage12 V DC
Input Voltage57 V DC
Manufacturer Part Number2901-0-28-9
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter 10G/Sx is an unmanaged compact Ethernet switch that features two 1/10G uplink ports and four or eight 10/100/1000 RJ-45 copper user ports. The OmniConverter 10G/Sx enables network distance extension with fiber cabling.

The OmniConverter 10G/Sx is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The OmniConverter 10G/Sx supports Directed Switch mode which directs multicast traffic (such as video) only to the appropriate uplink port preventing the multicast video traffic from flooding other network ports.

The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The switches support Dual Device mode that enables the 10G/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode the 10G/Sx provides separate and independent data traffic paths between each uplink port and a group of user ports.

The 10G/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber dual or single-fiber and standard or CWDM wavelengths.

The compact OmniConverter 10G/Sx Ethernet switches can be wall mounted rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. The OmniConverter Ethernet switch models are available with 2-Pin DC Terminal or external 100-240V AC power adapters.
Packaged Quantity1
Package Contents
  • OmniConverter 10G/Sx 2xSFP/SFP+ 8xRJ-45 1xDC Powered Commercial Temp
  • User Manual
Limited Warranty5 Year
Weight (Approximate)1.50 lb
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3ae
Safety:
  • UL 60950-1 UL-62368-1
  • IEC 62368:2014 /A11:2017
  • IEC 60950-1:2005+A1:2009
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013
  • CAN/CSA C22.2 No. 60950-1
  • CAN/CSA C22.2 No. 62368-1-14
  • CE Mark
EMC: EN 55032/EN 55024 CE Emissions/Immunity

EMI: CISPR 32 FCC 47 Part 15 Subpart B Class A

EMS:
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV; Signal:0.5 kV
  • IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: Signal: 3 V
  • IEC 61000-4-8 ( Magnetic Field)
  • IEC 61000-4-11
IP Rating: IP20 Protection
Additional InformationOperating Temperature Range: 0 to +50 deg C
View full details
