• OMNICONVERTER 10GPOE+/SX AC
    OMNICONVERTER 10GPOE+/SX AC
1 1

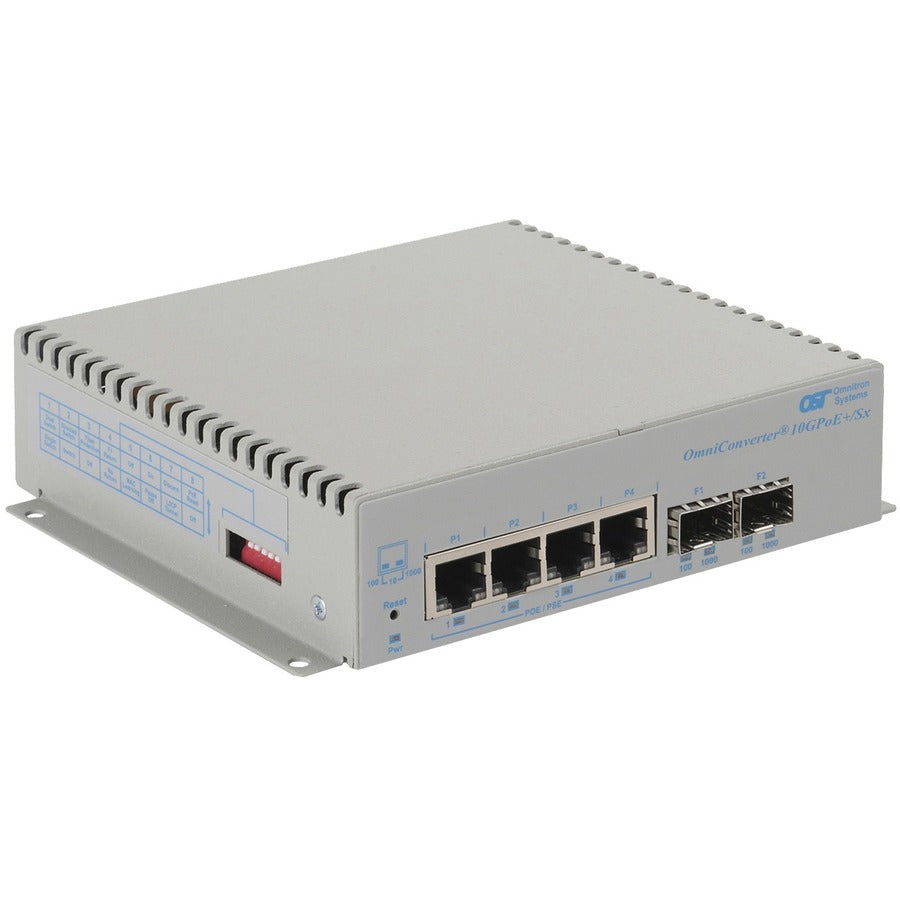

Omnitron Systems OmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 4xRJ-45 1xAC Powered Commercial Temp

Omnitron Systems OmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 4xRJ-45 1xAC Powered Commercial Temp

SKU: 1065692958      MFR: Omnitron Systems

GTIN: 800975041646

Product Description

Omnitron Systems OmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 4xRJ-45 1xAC Powered Commercial Temp - 6 Ports - 2 Layer Supported - Modular - 30 W PoE Budget - Optical Fiber Twisted Pair - PoE Ports - Wall Mountable DIN Rail Mountable Shelf Mountable Rack-mountable - 5 Year Limited Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 9581-0-24-1

Features

  • Quickly and easily set up a wired network with 6 networking ports
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Gigabit Ethernet port for ultra-fast network speeds
  • With leading Layer 2 support experience enhanced convenience secure business operations and a borderless network experience
  • The unmanaged switch provides a quick easy and cost-saving way to add wired networking to your home office or small business; no intervention needed
  • No need to deal with power supply issues the switch comes with a separate AC adapter to power up the unit
  • With Wall mounting feature you can conveniently install the switch while keeping the wires and cables organized

Product Details

Expansion Slot TypeSFP+
Brand NameOmnitron Systems
Plug/Connector TypeBarrel
Form FactorWall Mountable
Power SourceAC Adapter
Layer Supported2
Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationREACH
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Number of SFP+ Slots2
ModularYes
Uplink PortYes
Media Type SupportedOptical Fiber
Total Number of Network Ports6
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x Gigabit Ethernet PoE+
PoE Budget30 W
Country of OriginUnited States
Height1.5"
Width6.3"
Depth5.2"
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3at
Safety:
  • UL 60950-1 UL-62368-1
  • IEC 62368:2014 /A11:2017
  • IEC 60950-1:2005+A1:2009
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013
  • CAN/CSA C22.2 No. 60950-1
  • CAN/CSA C22.2 No. 62368-1-14
  • CE Mark
EMC: EN 55032/EN 55024 CE Emissions/Immunity

EMI: CISPR 32 FCC 47 Part 15 Subpart B Class A

EMS:
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV; Signal:0.5 kV
  • IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: Signal: 3 V
  • IEC 61000-4-8 ( Magnetic Field)
  • IEC 61000-4-11
IP Rating: IP20 Protection
Product Series10GPoE+/Sx
ManufacturerOmnitron Systems
Product Model9581-0-24-1
Product NameOmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 4xRJ-45 1xAC Powered Commercial Temp
Network Technology10/100/1000Base-T
Package TypeRetail
Product LineOmniConverter
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part Number9581-0-24-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter 10GPoE+/Sx is a compact unmanaged PoE and PoE+ Ethernet switch that feature two 1/10G uplink ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports.

The OmniConverter 10GPoE+/Sx is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

All models support Directed Switch mode which directs multicast traffic (such as video) only to the appropriate uplink port preventing multicast traffic from flooding other network ports.

The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The switches support Dual Device mode that enables the 10GPoE+/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode the 10GPoE+/Sx provides separate and independent data traffic paths between each uplink port and a group of user ports.

The 10GPoE+/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber dual or single-fiber and standard or CWDM wavelengths.

The 10GPoE+/Sx automatically negotiate and deliver the power level required by a Powered Device (PD) partner. The 10GPoE+/Sx can deliver up to 30 Watts of power per user port.

The switches features a Remote PoE Power Reset that can be configured with a DIP-switch. This feature enables the user to remotely power-cycle and reset each PD increasing network reliability up time and save manpower time and expense by automating the recovery of remote PD equipment.

All models can be wall mounted rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.
Packaged Quantity1
Package Contents
  • OmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 4xRJ-45 1xAC Powered Commercial Temp
  • Power Adapter
  • User Manual
Limited Warranty5 Year
Additional InformationInput Voltage:
  • 3.5A max at 115VAC
  • 2.5A max at 230VAC
  • Supplied adapter provides 250W
Operating Temperature Range: 0 to +50 deg C
Weight (Approximate)1.50 lb
Product FamilyOmniConverter 10GPoE+/Sx
View full details
