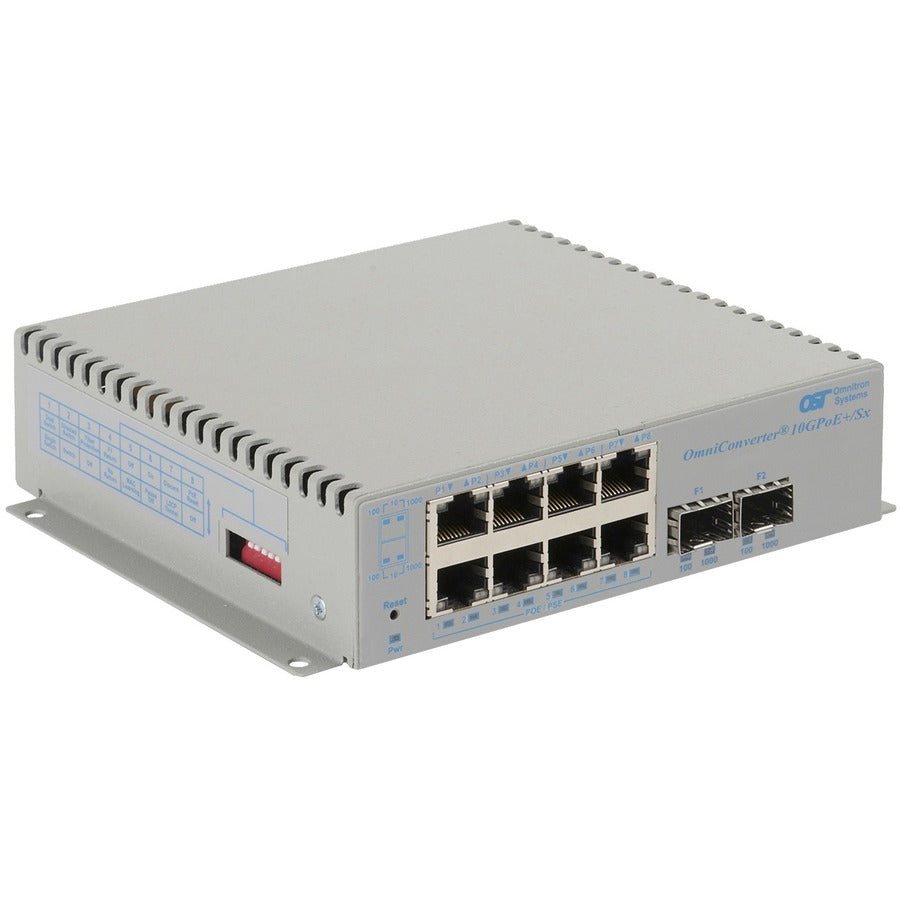

• OMNICONVERTER 10GPOE+/SX DC ET
    OMNICONVERTER 10GPOE+/SX DC ET
1 1

Omnitron Systems OmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 8xRJ-45 1xDC Powered Extended Temp

Omnitron Systems OmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 8xRJ-45 1xDC Powered Extended Temp

SKU: 1065692967      MFR: Omnitron Systems

GTIN: 800975041738

Product Description

Omnitron Systems OmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 8xRJ-45 1xDC Powered Extended Temp - 10 Ports - 2 Layer Supported - Modular - 30 W PoE Budget - Optical Fiber Twisted Pair - PoE Ports - Wall Mountable DIN Rail Mountable Shelf Mountable Rack-mountable - 5 Year Limited Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 9581-0-28-9Z

Features

  • Expand your network capacity with the help of 10 networking ports and transfer your data quickly and easily
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • With leading Layer 2 support experience enhanced convenience secure business operations and a borderless network experience
  • The unmanaged switch provides a quick easy and cost-saving way to add wired networking to your home office or small business; no intervention needed
  • With Wall mounting feature you can conveniently install the switch while keeping the wires and cables organized

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationREACH
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Number of SFP+ Slots2
ModularYes
Uplink PortYes
Media Type SupportedOptical Fiber
Total Number of Network Ports10
PoE (RJ-45) PortYes
Port/Expansion Slot Details8 x Gigabit Ethernet PoE+
PoE Budget30 W
Country of OriginUnited States
Height1.5"
Width6.3"
Depth5.2"
Expansion Slot TypeSFP+
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3at
Safety:
  • UL 60950-1 UL-62368-1
  • IEC 62368:2014 /A11:2017
  • IEC 60950-1:2005+A1:2009
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013
  • CAN/CSA C22.2 No. 60950-1
  • CAN/CSA C22.2 No. 62368-1-14
  • CE Mark
EMC: EN 55032/EN 55024 CE Emissions/Immunity

EMI: CISPR 32 FCC 47 Part 15 Subpart B Class A

EMS:
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV; Signal:0.5 kV
  • IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: Signal: 3 V
  • IEC 61000-4-8 ( Magnetic Field)
  • IEC 61000-4-11
IP Rating: IP20 Protection
Product Series10GPoE+/Sx
Brand NameOmnitron Systems
Plug/Connector TypeTerminal Block (2 Wire)
Form FactorWall Mountable
ManufacturerOmnitron Systems
Product Model9581-0-28-9Z
Product NameOmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 8xRJ-45 1xDC Powered Extended Temp
Network Technology10/100/1000Base-T
Package TypeRetail
Product LineOmniConverter
Input Voltage46 V DC
Input Voltage57 V DC
Manufacturer Part Number9581-0-28-9Z
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter 10GPoE+/Sx is a compact unmanaged PoE and PoE+ Ethernet switch that feature two 1/10G uplink ports eight 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports.

The OmniConverter 10GPoE+/Sx is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

All models support Directed Switch mode which directs multicast traffic (such as video) only to the appropriate uplink port preventing multicast traffic from flooding other network ports.

The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The switches support Dual Device mode that enables the 10GPoE+/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode the 10GPoE+/Sx provides separate and independent data traffic paths between each uplink port and a group of user ports.

The 10GPoE+/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber dual or single-fiber and standard or CWDM wavelengths.

The 10GPoE+/Sx automatically negotiate and deliver the power level required by a Powered Device (PD) partner. The 10GPoE+/Sx can deliver up to 30 Watts of power per user port.

The switches features a Remote PoE Power Reset that can be configured with a DIP-switch. This feature enables the user to remotely power-cycle and reset each PD increasing network reliability up time and save manpower time and expense by automating the recovery of remote PD equipment.

All models can be wall mounted rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.
Packaged Quantity1
Power SourceDC
Package Contents
  • OmniConverter 10GPoE+/Sx PoE+ 2xSFP/SFP+ 8xRJ-45 1xDC Powered Extended Temp
  • User Manual
Limited Warranty5 Year
Layer Supported2
Additional InformationOperating Temperature Range: -40 to +75 deg C
Weight (Approximate)1.70 lb
Product FamilyOmniConverter 10GPoE+/Sx
View full details
$2,325.99 USD
$2,325.99
Sale Sold out

Back Order

Get it by Mon, Jan 26 - Sat, Jan 31
