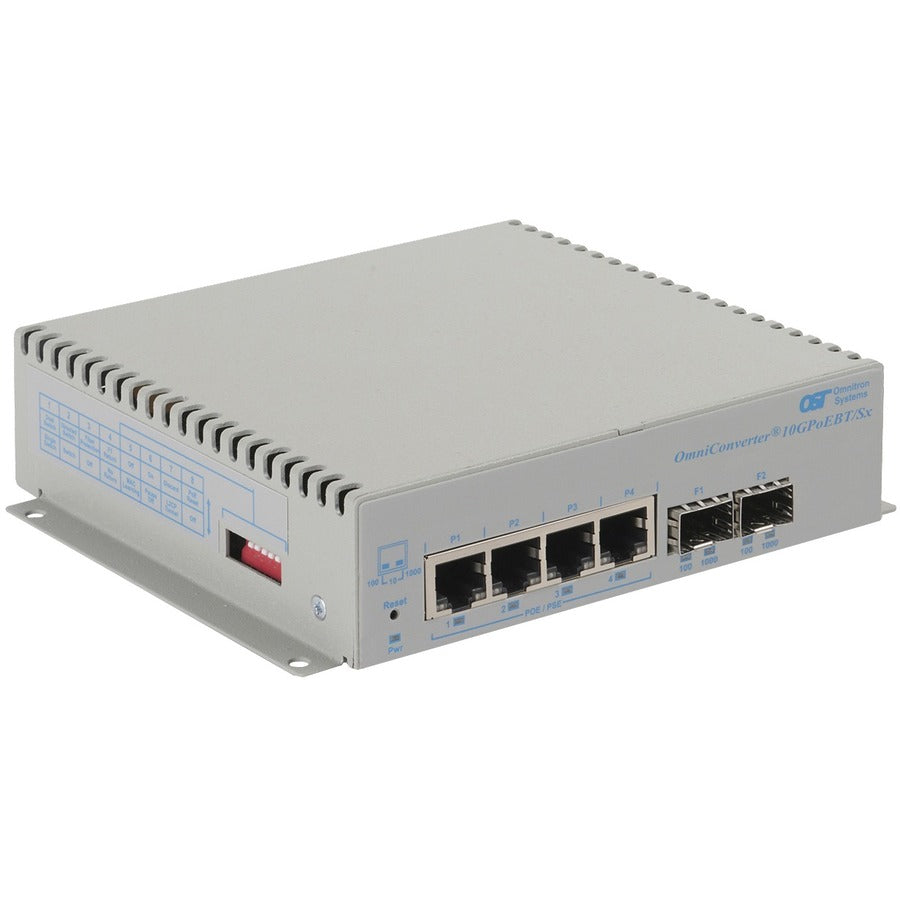

Omnitron Systems OmniConverter 10GPoEBT/Sx 3062B-0-24-1 Ethernet Switch

Omnitron Systems OmniConverter 10GPoEBT/Sx 3062B-0-24-1 Ethernet Switch

SKU: 1065980807      MFR: Omnitron Systems

GTIN: 800975041950

Product Description

Omnitron Systems OmniConverter 10GPoEBT/Sx 3062B-0-24-1 Ethernet Switch - 6 Ports - 2 Layer Supported - Modular - 2 SFP Slots - 250 W Power Consumption - 100 W PoE Budget - Optical Fiber Twisted Pair - PoE Ports - Wall Mountable DIN Rail Mountable Shelf Mountable Rack-mountable - 5 Year Limited Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 3062B-0-24-1

Features

  • Quickly and easily set up a wired network with 6 networking ports
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Layer 2 switch provides a complete lineup of features including IGMP snooping port mirroring and spanning tree
  • The unmanaged switch provides a quick easy and cost-saving way to add wired networking to your home office or small business; no intervention needed
  • No need to deal with power supply issues the switch comes with a separate AC adapter to power up the unit
  • With Wall mounting feature you can conveniently install the switch while keeping the wires and cables organized

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationWEEE
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Number of SFP Slots2
ModularYes
Uplink PortYes
Media Type SupportedOptical Fiber
Total Number of Network Ports6
Shared SFP SlotNo
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x Gigabit Ethernet Hi-PoE
PoE Budget100 W
Country of OriginUnited States
Height1.5"
Width6.3"
Depth5.2"
Expansion Slot TypeSFP+
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Safety:
  • UL 60950-1 UL-62368-1
  • IEC 62368:2014 /A11:2017
  • IEC 60950-1:2005+A1:2009
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013
  • CAN/CSA C22.2 No. 60950-1
  • CAN/CSA C22.2 No. 62368-1-14
  • CE Mark
EMC: EN 55032/EN 55024 CE Emissions/Immunity

EMI: CISPR 32 FCC 47 Part 15 Subpart B Class A

EMS:
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV; Signal:0.5 kV
  • IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: Signal: 3 V
  • IEC 61000-4-8 ( Magnetic Field)
  • IEC 61000-4-11
IP Rating: IP20 Protection
Product Series10GPoEBT/Sx
Brand NameOmnitron Systems
Plug/Connector TypeBarrel
Form FactorWall Mountable
ManufacturerOmnitron Systems
Product Model3062B-0-24-1
Product NameOmniConverter 10GPoEBT/Sx 3062B-0-24-1 Ethernet Switch
Network Technology10/100/1000Base-T
Package TypeRetail
Power Consumption250 W
Product LineOmniConverter
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part Number3062B-0-24-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter 10GPoEBT/Sx are unmanaged Ethernet switches that feature two 1/10G uplink ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports. The 10GPoEBT/Sx available with 60W or 100W (IEEE 802.3bt) per user port.

The OmniConverter PoE switches are Layer 2 Ethernet switches that forward frames to any port based on their MAC address.

All models support Directed Switch mode which directs multicast traffic (such as video) only to the appropriate uplink port preventing multicast traffic from flooding other network ports.

The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The switches support Dual Device mode that enables the 10GPoEBT/Sx to operate as two independent and isolated Ethernet switches.

The 10GPoEBT/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber dual or single-fiber and standard or CWDM wavelengths.

The switches automatically negotiate and deliver the power level required by a Powered Device (PD) partner. Depending on the model of the OmniConverter PoE switch the switch can deliver up to 60 or 100 Watts of power per user port.

The switches features a Remote PoE Power Reset that can be configured with a DIP-switch. This feature enables the user to remotely power-cycle and reset each PD increasing network reliability up time and save manpower time and expense by automating the recovery of remote PD equipment.

All models can be wall mounted rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.
Packaged Quantity1
Power SourceAC Adapter
Package Contents
  • OmniConverter 10GPoEBT/Sx 3062B-0-24-1 Ethernet Switch
  • User Manual
  • AC Adapter
Limited Warranty5 Year
Layer Supported2
Additional InformationInput Voltage:
  • 3.5A max at 115VAC
  • 2.5A max at 230VAC
Operating Temperature Range: 0 to +50 deg C
Weight (Approximate)1.60 lb
Product FamilyOmniConverter 10GPoEBT/Sx
View full details
$2,478.99 USD
$2,478.99
Sale Sold out

Back Order
