• RUGGEDNET 10G/MI SWITCH DC
    RUGGEDNET 10G/MI SWITCH DC
1 1

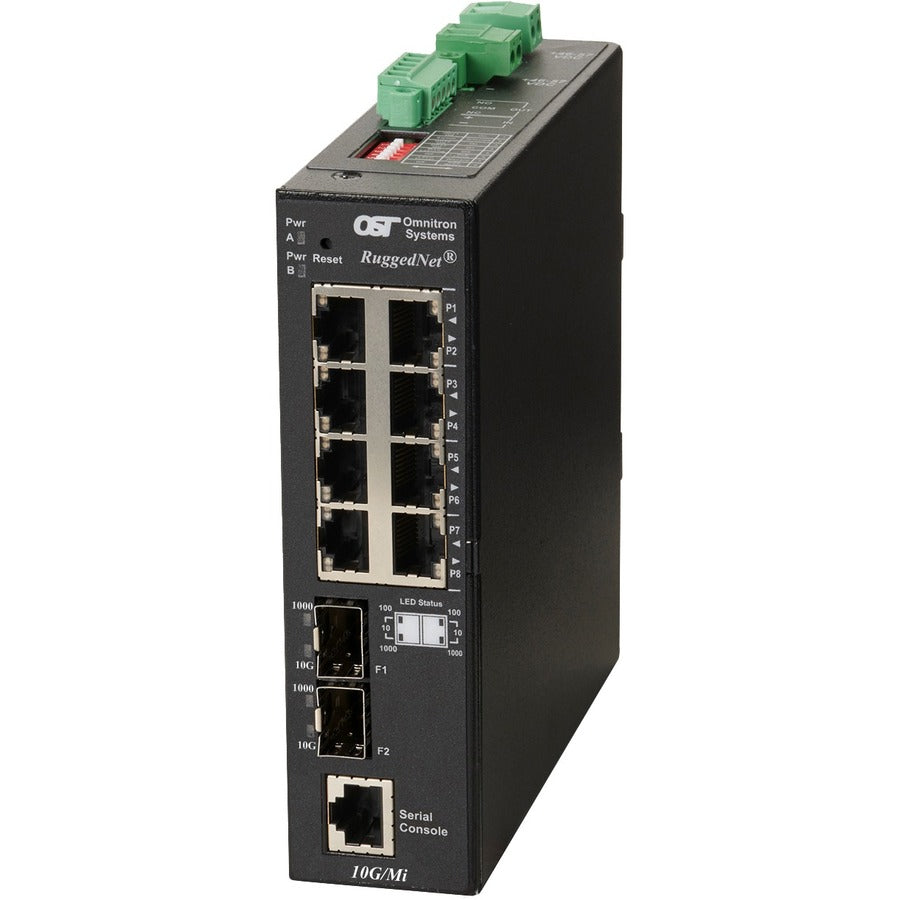

Omnitron Systems RuggedNet 10G/Mi 2xSFP/SFP+ + 8xRJ-45 2xDC Powered Industrial Temp

Omnitron Systems RuggedNet 10G/Mi 2xSFP/SFP+ + 8xRJ-45 2xDC Powered Industrial Temp

SKU: 1065692969      MFR: Omnitron Systems

GTIN: 800975041578

Product Description

Omnitron Systems RuggedNet 10G/Mi 2xSFP/SFP+ + 8xRJ-45 2xDC Powered Industrial Temp - 10 Ports - Manageable - 2 Layer Supported - Modular - Optical Fiber Twisted Pair - PoE Ports - Wall Mountable DIN Rail Mountable Shelf Mountable Rack-mountable - 5 Year Limited Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 2902-0-28-2Z

Features

  • Expand your network capacity with the help of 10 networking ports and transfer your data quickly and easily
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Layer 2 switch provides a complete lineup of features including IGMP snooping port mirroring and spanning tree
  • Management capability provides control over setup and configuration of your network
  • With Wall mounting feature you can conveniently install the switch while keeping the wires and cables organized

Product Details

Product TypeEthernet Switch
ManageableYes
Environmentally FriendlyYes
Environmental CertificationREACH
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Number of SFP+ Slots2
ModularYes
Management PortYes
Uplink PortYes
Media Type SupportedOptical Fiber
Total Number of Network Ports10
PoE (RJ-45) PortYes
Port/Expansion Slot Details8 x Gigabit Ethernet PoE+
Country of OriginUnited States
Height5.5"
Width1.5"
Depth5.5"
Expansion Slot TypeSFP+
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3ae
  • IEEE 802.1Q
  • IEEE 802.1ad
  • IEEE 802.1ab
  • IEEE 802.1w
  • IEEE 802.1ax
  • RFC 5424
  • RFC 4541
  • IEC 624339-2
  • SMTP SNTP
  • RADIUS TACACS+ IEEE 802.1x
Safety:
  • UL 60950-1 UL-62368-1
  • IEC 60950-1:2005+A1:2009
  • IEC 62368:2014/A11:2017
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013
  • CAN/CSA C22.2 No. 60950-1
  • CAN/CSA C22.2 No. 62368-1-14
  • CE Mark
EMC:
  • EN 55032/EN 55024 CE Emissions/Immunity
  • IEC 61000-6-4 Industrial Emissions
  • IEC 61000-6-2 Industrial Immunity
EMI:
  • CISPR 32
  • FCC 47 Part 15 Subpart B Class A
EMS:
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: Signal: 10 V
  • IEC 61000-4-8 ( Magnetic Field)
  • IEC 61000-4-11 (General Immunity in Industrial Environments )
IP Rating: IP40 Protection
Product Series10G/Mi
Brand NameOmnitron Systems
Plug/Connector TypeTerminal Block (2 Wire)
Form FactorWall Mountable
ManufacturerOmnitron Systems
Product Model2902-0-28-2Z
Product NameRuggedNet 10G/Mi 2xSFP/SFP+ + 8xRJ-45 2xDC Powered Industrial Temp
Network Technology10/100/1000Base-T
Package TypeRetail
Product LineRuggedNet
Input Voltage12 V DC
Input Voltage57 V DC
Manufacturer Part Number2902-0-28-2Z
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe RuggedNet 10G/Mi is a ruggedized managed industrial Ethernet switch that features two 1/10G uplink ports and four 10/100/1000 RJ-45 copper user ports. The RuggedNet 10G/Mi enables industrial network distance extension with fiber cabling.

The RuggedNet 10G/Mi is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

All models support Directed Switch mode which directs multicast traffic (such as video) only to the appropriate uplink port preventing multicast traffic from flooding other network ports.
The switches support redundant uplinks industrial ring Media Redundancy Protocol (MRP) Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.

The switches support Dual Device mode that enables the 10G/Mi to operate as two independent and isolated Ethernet switches. In Dual Device mode the 10G/Mi provides separate and independent data traffic paths between each uplink port and a group of user ports.

The mode of operation can be configured using easily accessible DIP-switches or using Web Telnet SSH SNMPv1/v2c/v3 or Serial Console management interfaces. These management interfaces provide access to filtering and security options such as broadcast storm prevention IGMP IEEE 802.1x RADIUS TACACS+ and Access Control Lists. Email event notification and alarm reporting is provided using Simple Mail Transfer Protocol.

The RuggedNet switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber dual or single-fiber and standard or CWDM wavelengths.

The RuggedNet compact industrial Ethernet switches can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
Packaged Quantity1
Power SourceDC
Package Contents
  • RuggedNet 10G/Mi 2xSFP/SFP+ + 8xRJ-45 2xDC Powered Industrial Temp
  • User Manual
  • DIN Rail Mount
  • DIN-rail Mounting Clip
Limited Warranty5 Year
Layer Supported2
Additional InformationManagement Port: 1

Number of Serial Ports: 1

Management: Web Telnet SSH Serial Console SNMPv1/v2/v3

Alarm Contacts (Output):
  • 2 form C Relays for Normally Open and
  • Normally Closed Operation
  • 110VDC/125VAC Maximum Voltage
  • 2A Maximum Current
Alarm Sensor (Input): 2.0ma @ 3.3VDC Closure Detection

Operating Temperature Range: -40 to +75 deg C
Weight (Approximate)1.77 lb
Product FamilyRuggedNet 10G/Mi
View full details
$2,057.99 USD
$2,057.99
Sale Sold out

Back Order

Get it by Sun, Jan 25 - Fri, Jan 30


Update


Shipping calculated at checkout.
