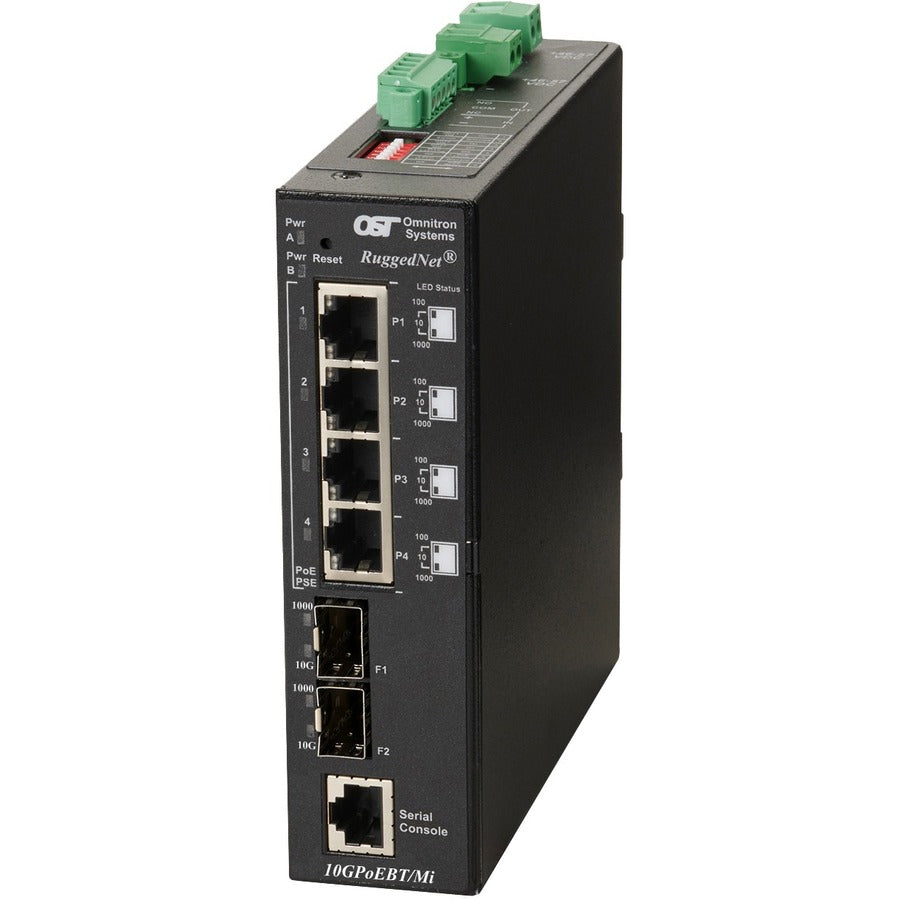

Omnitron Systems RuggedNet 10GPoEBT/Mi 3360B-0-24-2Z Ethernet Switch

Omnitron Systems RuggedNet 10GPoEBT/Mi 3360B-0-24-2Z Ethernet Switch

SKU: 1065692976      MFR: Omnitron Systems

GTIN: 800975041608

Product Description

Omnitron Systems RuggedNet 10GPoEBT/Mi 3360B-0-24-2Z Ethernet Switch - 6 Ports - Manageable - 2 Layer Supported - Modular - 60 W PoE Budget - Optical Fiber Twisted Pair - PoE Ports - Wall Mountable DIN Rail Mountable Shelf Mountable Rack-mountable - 5 Year Limited Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 3360B-0-24-2Z

Features

  • Quickly and easily set up a wired network with 6 networking ports
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Gigabit Ethernet port for ultra-fast network speeds
  • Layer 2 switch provides a complete lineup of features including IGMP snooping port mirroring and spanning tree
  • Management capability provides control over setup and configuration of your network

Product Details

Product TypeEthernet Switch
ManageableYes
Environmentally FriendlyYes
Environmental CertificationREACH
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Number of SFP+ Slots2
ModularYes
Management PortYes
Uplink PortYes
Media Type SupportedOptical Fiber
Total Number of Network Ports6
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x Gigabit Ethernet Hi-PoE
PoE Budget60 W
Country of OriginUnited States
Height5.5"
Width1.5"
Depth5.5"
Expansion Slot TypeSFP+
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.1Q
  • IEEE 802.1ad
  • IEEE 802.1ab
  • IEEE 802.1w
  • IEEE 802.1ax
  • RFC 5424
  • RFC 4541
  • IEC 624339-2
  • SMTP SNTP
  • RADIUS TACACS+ IEEE 802.1x
Safety:
  • UL 60950-1 UL-62368-1
  • IEC 60950-1:2005+A1:2009
  • IEC 62368:2014/A11:2017
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013
  • CAN/CSA C22.2 No. 60950-1
  • CAN/CSA C22.2 No. 62368-1-14
  • CE Mark
EMC:
  • EN 55032/EN 55024 CE Emissions/Immunity
  • IEC 61000-6-4 Industrial Emissions
  • IEC 61000-6-2 Industrial Immunity
EMI:
  • CISPR 32
  • FCC 47 Part 15 Subpart B Class A
EMS:
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: Signal: 10 V
  • IEC 61000-4-8 ( Magnetic Field)
  • IEC 61000-4-11 (General Immunity in Industrial Environments )
IP Rating: IP40 Protection
Product Series10GPoEBT/Mi
Brand NameOmnitron Systems
Plug/Connector TypeTerminal Block (2 Wire)
Form FactorWall Mountable
ManufacturerOmnitron Systems
Product Model3360B-0-24-2Z
Product NameRuggedNet 10GPoEBT/Mi 3360B-0-24-2Z Ethernet Switch
Network Technology10/100/1000Base-T
Package TypeRetail
Product LineRuggedNet
Input Voltage46 V DC
Input Voltage57 V DC
Manufacturer Part Number3360B-0-24-2Z
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe RuggedNet 10GPoEBT/Mi are industrial ruggedized and temperature-hardened managed Ethernet switches that feature two 1/10G uplink ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports. The 10GPoEBT/Mi available with 60W or 100W (IEEE 802.3bt) per user port.

The RuggedNet PoE switches are Layer 2 Ethernet switches that forward frames to any port based on their MAC address.

All models support Directed Switch mode which directs multicast traffic (such as video) only to the appropriate uplink port preventing multicast traffic from flooding other network ports.

The switches support redundant uplinks industrial ring Media Redundancy Protocol (MRP) Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.

The switches support Dual Device mode that enables the 10GPoEBT/Mi to operate as two independent and isolated Ethernet switches.

The mode of operation can be configured using easily accessible DIP-switches or using Web Telnet SSH SNMPv1/v2c/v3 or Serial Console management interfaces. These management interfaces provide access to filtering and security options such as broadcast storm prevention IGMP IEEE 802.1x RADIUS TACACS+ and Access Control Lists. Email event notification and alarm reporting is provided using Simple Mail Transfer Protocol.

The RuggedNet PoE switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber dual or single-fiber and standard or CWDM wavelengths.

The switches feature a Remote PoE Power Reset function that enables the user to remotely power-cycle and reset each PD. They also feature a configurable Heartbeat Reset function that automatically pings the attached PDs and automatically power cycles and resets the PDs when detecting a heartbeat loss. The Remote Power Reset and the Heartbeat Reset functions increase the networks reliability up time and save manpower time and expense by automating the recovery of remote PD equipment.

All models can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
Packaged Quantity1
Power SourceDC
Package Contents
  • RuggedNet 10GPoEBT/Mi 60W IEEE 802.3bt 2xSFP/SFP+ + 4xRJ-45 2xDC Powered Industrial Temp
  • User Manual
  • DIN Rail Mount
  • DIN-rail Mounting Clip
Limited Warranty5 Year
Layer Supported2
Additional InformationManagement Port: 1

Number of Serial Ports: 1

Management: Web Telnet SSH Serial Console SNMPv1/v2/v3

Alarm Contacts (Output):
  • 2 form C Relays for Normally Open and
  • Normally Closed Operation
  • 110VDC/125VAC Maximum Voltage
  • 2A Maximum Current
Alarm Sensor (Input): 2.0ma @ 3.3VDC Closure Detection

Operating Temperature Range: -40 to +75 deg C
Weight (Approximate)1.70 lb
Product FamilyRuggedNet 10GPoEBT/Mi
View full details
