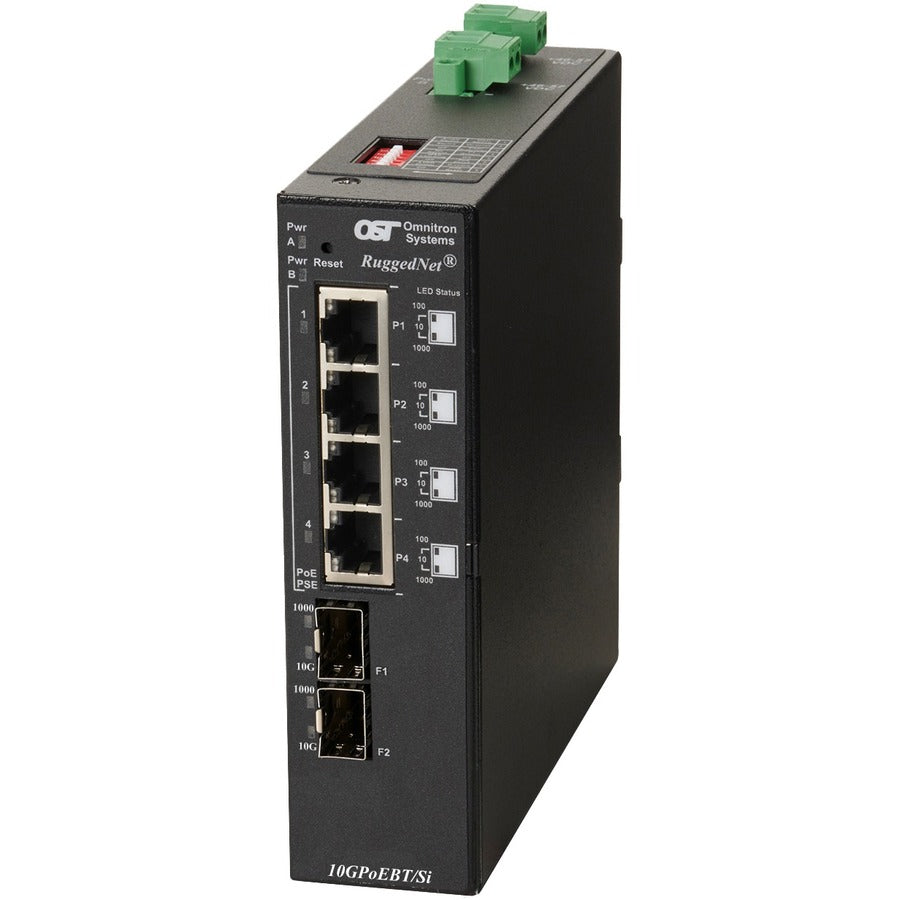

Omnitron Systems RuggedNet 10GPoEBT/Si 3260B-0-24-2Z Ethernet Switch

Omnitron Systems RuggedNet 10GPoEBT/Si 3260B-0-24-2Z Ethernet Switch

SKU: 1065692978      MFR: Omnitron Systems

GTIN: 800975041622

Product Description

Omnitron Systems RuggedNet 10GPoEBT/Si 3260B-0-24-2Z Ethernet Switch - 6 Ports - 2 Layer Supported - Modular - 60 W PoE Budget - Optical Fiber Twisted Pair - PoE Ports - Wall Mountable DIN Rail Mountable Shelf Mountable Rack-mountable - 5 Year Limited Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 3260B-0-24-2Z

Features

  • Quickly and easily set up a wired network with 6 networking ports
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Gigabit Ethernet port for ultra-fast network speeds
  • With leading Layer 2 support experience enhanced convenience secure business operations and a borderless network experience
  • The unmanaged switch provides a quick easy and cost-saving way to add wired networking to your home office or small business; no intervention needed
  • With Wall mounting feature you can conveniently install the switch while keeping the wires and cables organized

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationREACH
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Number of SFP+ Slots2
ModularYes
Uplink PortYes
Media Type SupportedOptical Fiber
Total Number of Network Ports6
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x Gigabit Ethernet Hi-PoE
PoE Budget60 W
Country of OriginUnited States
Height5.5"
Width1.5"
Depth5.5"
Expansion Slot TypeSFP+
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Safety:
  • UL 60950-1 UL-62368-1
  • IEC 60950-1:2005+A1:2009
  • IEC 62368:2014/A11:2017
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013
  • CAN/CSA C22.2 No. 60950-1
  • CAN/CSA C22.2 No. 62368-1-14
  • CE Mark
EMC:
  • EN 55032/EN 55024 CE Emissions/Immunity
  • IEC 61000-6-4 Industrial Emissions
  • IEC 61000-6-2 Industrial Immunity
EMI:
  • CISPR 32
  • FCC 47 Part 15 Subpart B Class A
EMS:
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: Signal: 10 V
  • IEC 61000-4-8 ( Magnetic Field)
  • IEC 61000-4-11 (General Immunity in Industrial Environments )
IP Rating: IP40 Protection
Product Series10GPoEBT/Si
Brand NameOmnitron Systems
Plug/Connector TypeTerminal Block (2 Wire)
Form FactorWall Mountable
ManufacturerOmnitron Systems
Product Model3260B-0-24-2Z
Product NameRuggedNet 10GPoEBT/Si 3260B-0-24-2Z Ethernet Switch
Network Technology10/100/1000Base-T
Package TypeRetail
Product LineRuggedNet
Input Voltage46 V DC
Input Voltage57 V DC
Manufacturer Part Number3260B-0-24-2Z
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe RuggedNet 10GPoEBT/Si are industrial ruggedized and temperature-hardened unmanaged Ethernet switches that feature two 1/10G uplink ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports. The 10GPoEBT/Si available with 60W or 100W (IEEE 802.3bt) per user port.

The RuggedNet PoE switches are Layer 2 Ethernet switches that forward frames to any port based on their MAC address.

All models support Directed Switch mode which directs multicast traffic (such as video) only to the appropriate uplink port preventing multicast traffic from flooding other network ports.
The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The switches support Dual Device mode that enables the 10GPoEBT/Si to operate as two independent and isolated Ethernet switches.
The modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the RuggedNet for ease of identification and use.

The RuggedNet PoE switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber dual or single-fiber and standard or CWDM wavelengths.

The switches automatically negotiate and deliver the power level required by a Powered Device (PD) partner. Depending on the model of the RuggedNet PoE switch the switch can deliver up to 60 or 100 Watts of power per user port.

The switches features a Remote PoE Power Reset that can be configured with a DIP-switch. This feature enables the user to remotely power-cycle and reset each PD increasing network reliability up time and save manpower time and expense by automating the recovery of remote PD equipment.

All models can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
Packaged Quantity1
Power SourceDC
Package Contents
  • RuggedNet 10GPoEBT/Si 60W IEEE 802.3bt 2xSFP/SFP+ 4xRJ-45 2xDC Powered Industrial Temp
  • User Manual
  • DIN Rail Mount
Limited Warranty5 Year
Layer Supported2
Additional InformationOperating Temperature Range: -40 to +75 deg C
Weight (Approximate)1.70 lb
Product FamilyRuggedNet 10GPoEBT/Si
