• FCC 47 Part 15 Subpart B Class A
• ICES-003 (Canada)
• EN55011 (CISPR11)
• EN55032 (CISPR32)
• EN61000-3-2 Limits for Harmonic Current Emissions
• EN61000-3-3 Limits of Voltage Fluctuations and Flicker

• EN55024
• EN61000-4-2 (ESD): Contact
• EN 61000-4-3 (RS): EN 61000-4-4 (EFT)
• EN61000-4-5 (Surge)
• EN 61000-4-6 (CS)
• EN 61000-4-8 (PFMF)
• EN 61000-4-11

• UL/ULC/EN 62368-1 (previously 60950-1)
• CE Mark
• CAN/CSA C22.2 No. 62368-1-14

Other:

• CCATS - G168387
• ECCN - 5A992
• HTSUS Number: 8517.62.0020

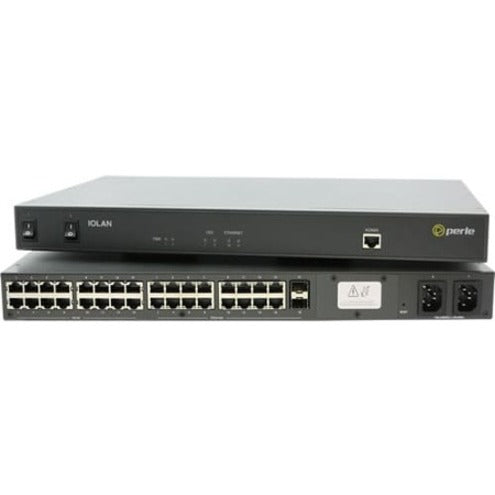

The IOLAN SCR1618 Console Server provides data center managers with secure remote console management of any device with an RS232 or Ethernet RJ45 console port. This cost-effective 1U rack solution maintains protocol integrity across Ethernet and adds full IPv4/IPv6 routing capabilities with support for RIP OSPF and BGP protocols. An integrated firewall and two-factor authentication enhance security while the powerful multi-core CPU ensures lightning-fast routing and switching. With advanced failover to multiple networks and Zero Touch Provisioning (ZTP) the IOLAN SCR is ideal for data center management and out-of-band management of IT assets from anywhere in the world.

Console Management for IT assets

The IOLAN SCR1618 Console Server supports Ethernet and RS232 RJ45 connectivity to console ports on equipment such as Cisco Juniper HP routers switches firewalls servers PBXs network storage equipment and security appliances through an IP network. The RS232 RJ45 ports are software configurable to use straight thru or rolled cables to connect your Cisco equipment. In addition a DCD pin can be configured for 3rd party devices that need this extra signal. This means the Perle IOLAN SCR supports more serial devices than any other Console Server on the market. This makes it an ideal out of band management solution for IT equipment located in data centers or remote sites.

Advanced Network Security Authentication and Data Encryption

2 Factor Authentication (2FA) ensures access to equipment and data is limited to authorized users while remote authentication (RADIUS TACACS+ & LDAP) management enables integration with enterprise-grade systems to control access to devices in the field.

The built-in firewall offers intuitive policies to protect inside networks from unauthorized access. The firewall also allows inside networks to be separated from each other. If there are network resources that need to be available to an outside user such as a web or FTP server these resources can be placed on a separate network behind the firewall in a demilitarized zone (DMZ).

Network data transmissions and access to remote console admin ports on IT equipment are protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (TLS/SSL). By using encryption technologies an IOLAN SCR Console Server protects sensitive and confidential data before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices all the major encryption ciphers such as AES 3DES RC4 RC2 and CAST128 are fully supported.

With multiple concurrent VPN sessions OpenVPN and IPSec VPN robust authentication and encryption of IP packets is provided at the network layer of the OSI model. This is ideal for multi-vendor interoperation within a network providing flexibility and the ability to match the right solution for a particular application.

High Availability Access

To simplify management and respond swiftly to issues network administrators require access to all console ports via a single portal view. Perle's cloud-based centralized management solution puts all your network and IT infrastructure into a single application and provides secure reliable access and visibility during normal operations and critical network failures. Scalable to suit any business requirement Cloud Centralized Management reduces human error and guarantees repeatability.

• IOLAN SCR1618 Device Server
• Front and Rear Mounting Hardware
