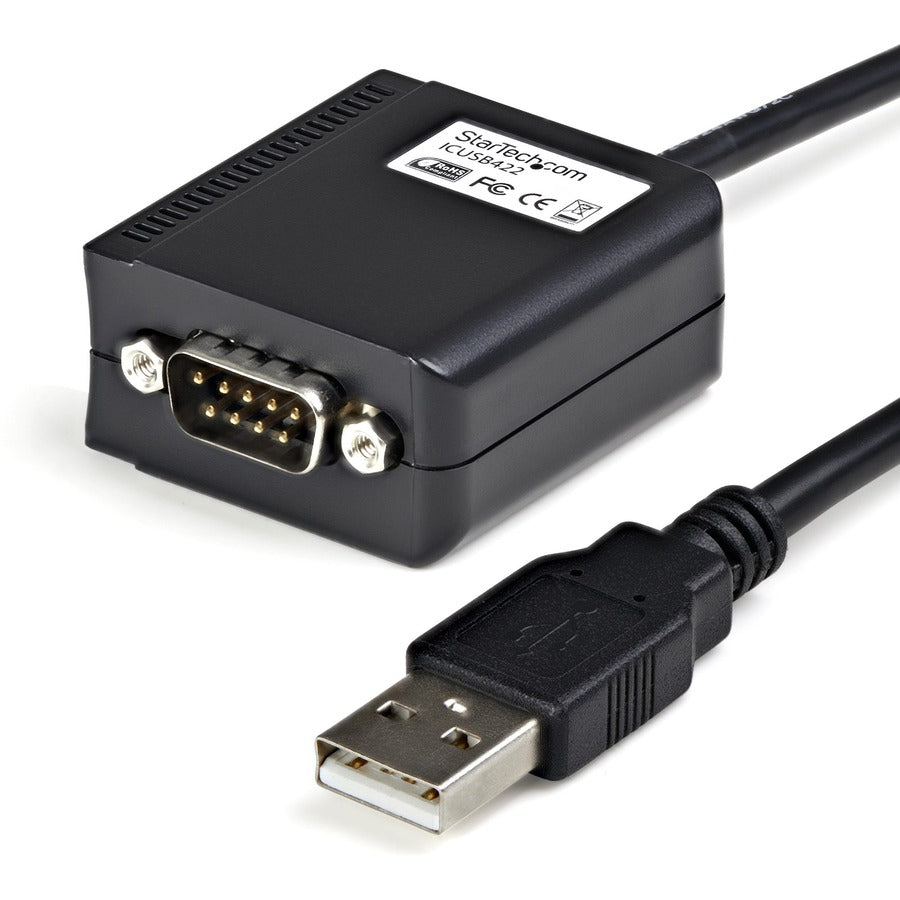

StarTech.com 6ft RS422/485 USB Serial Adapter w/ COM Retention

StarTech.com 6ft RS422/485 USB Serial Adapter w/ COM Retention

SKU: 1014372803      MFR: StarTech.com

GTIN: 065030836548

Product Description

StarTech.com 6ft RS422/485 USB Serial Adapter w/ COM Retention - Add an RS422/485 serial port to your system through USB; features COM port retention - USB to Serial - usb to rs485 - USB to DB9 - usb to rs422 - USB to serial Adapter

Manufacturer : StarTech.com

Manufacturer Part No : ICUSB422

Features

  • USB to Straight-Through RS422/485 Serial Adapter
  • Supported baud rates from 300bps to 921.6 Kbps
  • Being able to rename devices no matter how many are plugged in
  • Supports COM Port retention
  • Configurable port for RS422 or RS485 support
  • Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
  • Backwards compatible with USB 1.1
  • Integrated adapter and cable eliminates the need for additional cables
  • Two interface modes; 4 wire RS422(TxD+/- RxD+/-) and 2 wire RS485 (DATA+ DATA-)
  • 120 OHM terminator that can be Enabled/Disabled by DIP switch

Product Details

Product TypeData Transfer Cable
Connector on First End1 x 9-pin DB-9 Male RS-422 Serial
Connector on Second End1 x Type A Female USB 1.1 USB
Environmentally FriendlyYes
Environmental CertificationRoHS
TAA CompliantYes
Country of OriginTaiwan
ColorBlack
Brand NameStarTech.com
ConductorCopper
ManufacturerStarTech.com
Product Name6ft RS422/485 USB Serial Adapter with COM Retention
Data Transfer Rate921.6 kbit/s
Device SupportedTablet PC
Manufacturer Part NumberICUSB422
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration and requires minimal software.

The serial adapter is USB-powered eliminating the aggravation of requiring an external power adapter. With COM port retention assigned port settings are saved so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.

The ICUSB422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
Packaged Quantity1
Package Contents
  • 6ft RS422/485 USB Serial Adapter with COM Retention
  • 1 x Driver CD
  • 1 x Instruction Manual
Limited Warranty2 Year
Additional Information

Operating System(s):

  • Windows 8 / 7 / Vista / XP (32/64-bit)
  • Windows 2000
  • Windows CE (4.2+)
  • Windows Server 2008 R2
  • Windows Server 2003 (32/64-bit)
  • Mac OS v.9.x v.10.x (Tested up to v.10.8)
  • Linux
Cable Length6 ft
Weight (Approximate)0.22 lb
Connector on First EndDB-9 Male Serial
Connector on Second EndType A Female USB
View full details
$72.87 USD
$72.87
Sale Sold out

In Stock

In-Stock Will be immediately shipped once you confirm your order


Update


Shipping calculated at checkout.

StarTech.com 6ft RS422/485 USB Serial Adapter w/ COM Retention - Add an RS422/485 serial port to your system through USB; features COM port retention - USB to Serial - usb to rs485 - USB to DB9 - usb to rs422 - USB to serial Adapter

Manufacturer : StarTech.com

Manufacturer Part No : ICUSB422

Features

  • USB to Straight-Through RS422/485 Serial Adapter
  • Supported baud rates from 300bps to 921.6 Kbps
  • Being able to rename devices no matter how many are plugged in
  • Supports COM Port retention
  • Configurable port for RS422 or RS485 support
  • Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
  • Backwards compatible with USB 1.1
  • Integrated adapter and cable eliminates the need for additional cables
  • Two interface modes; 4 wire RS422(TxD+/- RxD+/-) and 2 wire RS485 (DATA+ DATA-)
  • 120 OHM terminator that can be Enabled/Disabled by DIP switch

Product Details

Product TypeData Transfer Cable
Connector on First End1 x 9-pin DB-9 Male RS-422 Serial
Connector on Second End1 x Type A Female USB 1.1 USB
Environmentally FriendlyYes
Environmental CertificationRoHS
TAA CompliantYes
Country of OriginTaiwan
ColorBlack
Brand NameStarTech.com
ConductorCopper
ManufacturerStarTech.com
Product Name6ft RS422/485 USB Serial Adapter with COM Retention
Data Transfer Rate921.6 kbit/s
Device SupportedTablet PC
Manufacturer Part NumberICUSB422
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration and requires minimal software.

The serial adapter is USB-powered eliminating the aggravation of requiring an external power adapter. With COM port retention assigned port settings are saved so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.

The ICUSB422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
Packaged Quantity1
Package Contents
  • 6ft RS422/485 USB Serial Adapter with COM Retention
  • 1 x Driver CD
  • 1 x Instruction Manual
Limited Warranty2 Year
Additional Information

Operating System(s):

  • Windows 8 / 7 / Vista / XP (32/64-bit)
  • Windows 2000
  • Windows CE (4.2+)
  • Windows Server 2008 R2
  • Windows Server 2003 (32/64-bit)
  • Mac OS v.9.x v.10.x (Tested up to v.10.8)
  • Linux
Cable Length6 ft
Weight (Approximate)0.22 lb
Connector on First EndDB-9 Male Serial
Connector on Second EndType A Female USB
