3000VA on-line double-conversion UPS system for critical server network and telecommunications equipment. 3U rackmount form factor with an installed depth of 26 inches. Expandable battery runtime with optional BP72V15-2U (limit 1) BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs. Full time sine wave 110 or 120V output with +/-2% voltage regulation. Online double-conversion Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC then re-converts output back to completely regulated filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. NEMA L5-30P input plug. NEMA 5-15 NEMA 5-15/20R and NEMA L5-30R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous communications via USB port DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for viewing in rackmount or tower configurations. Dataline surge suppression for dialup DSL or network Ethernet connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Fault-tolerant auto-bypass mode. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITHD 2-post rackmount accessories available. Field-replaceable hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. $250000 Ultimate Lifetime Insurance (U.S. Canada and Puerto Rico only).

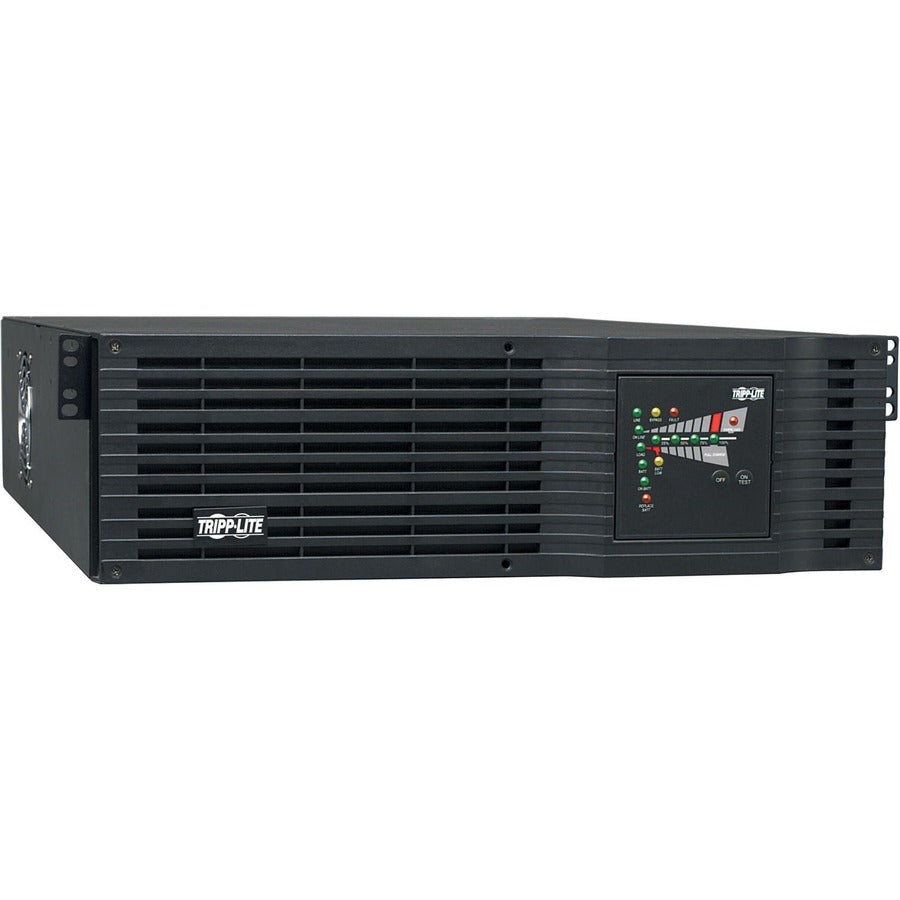

• SU3000RTXL3U Rack-Tower UPS System
• PowerAlert Software and cabling
• Mounting hardware for 4 post rackmount installation / tower stands
• Warranty information
• Instruction manual

• True on-line double conversion UPS provides pure sine wave AC output at all times
• Maintains continuous operation through blackouts voltage fluctuations and surges with zero transfer time
• Removes harmonic distortion electrical impulses frequency variations and other hard to solve power problems
• Accepts input voltages between 80 and 138 (65 to 138 at loads under 70%) regulating output to 120V +/-2%
• 3000VA / 2400 watt power capacity with 9 total outlets (4 NEMA5-15R 4 NEMA5-20R & 1 NEMAL5-30R)
• Standard internal battery set provides 17 minutes runtime at half load
• Expandable runtime with multiple external battery packs (part# BP72V12-2U)
• Innovative design makes unit adaptable for rackmount tower or stacking applications
• Uses only 3 rack spaces (3U) in standard 19 inch rack
• DB9 serial port for network interface; SNMP compatible
• Slot for optional SNMP/web card (part# SNMPWEBCARD)
• PowerAlert unattended shutdown software and 6 ft. network cable included
• Compatible with Tripp Lite's Watchdog system service software
• $250000 Ultimate Lifetime connected equipment insurance
• 2 year manufacturers product warranty
• Diagnostic LEDs
• Battery replacement door
• Mounting hardware included for 4 post rack enclosures optional 2POSTRMKIT accessory enables installation in 2 post telecom racks
