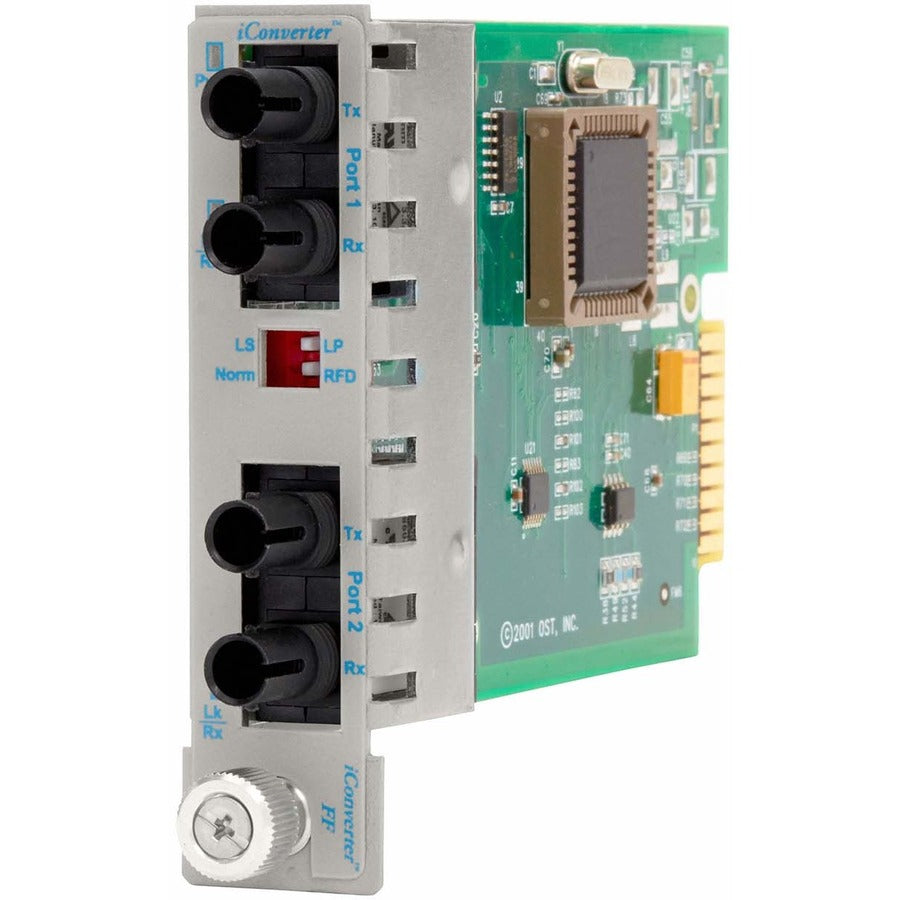

• iConverter 100Mbps Ethernet Fiber to Fiber Media Converter ST Multimode 5km to Single-Mode 30km Module Wide Temp
    iConverter 100Mbps Ethernet Fiber to Fiber Media Converter ST Multimode 5km to Single-Mode 30km Module Wide Temp
1 1

iConverter 100Mbps Ethernet Fiber to Fiber Media Converter ST Multimode 5km to Single-Mode 30km Module Wide Temp

iConverter 100Mbps Ethernet Fiber to Fiber Media Converter ST Multimode 5km to Single-Mode 30km Module Wide Temp

SKU: 1027384773      MFR: Omnitron Systems

GTIN: 800975026537

Product Description

iConverter 100Mbps Ethernet Fiber to Fiber Media Converter ST Multimode 5km to Single-Mode 30km Module Wide Temp - 1 x 100BASE-FX; 1 x 100BASE-LX; Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8620-1-W

Features

  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • Supports optical fiber cable for durable performance minimal signal loss and fast data transfers to greater distances
  • With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
  • Takes minimal energy and effort to get installed internally

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Number of ST Ports2
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
ST Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Product Series100FF
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model8620-1-x
Product NameiConverter 100FF ST Multimode 5km to ST Single-Mode 30km Plug-in Module Wide Temp
Network Technology100Base-FX
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8620-1-W
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter 100FF media converter provides multimode to single-mode and dual fiber to single fiber conversion. The 100FF is a cost-effective solution for extending fiber network distances.

iConverter 100FF models are available with multimode single-mode and single-fiber options. The single-mode fiber port supports ST or SC connectors and distances up to 120km. The multimode fiber port supports ST or SC connectors and distances up to 5km.

The 100FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection isolation and reporting.

The iConverter 100FF is available as a compact unmanaged standalone unit or as a chassis plug-in module that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis or in a 1-Module chassis with AC or DC power input.

The standalone 100FF can be wall-mounted and is DC powered. It can be ordered with an external AC/DC power adapter or it can be directly powered using a 2-pin terminal connector.
Maximum Distance Supported18.64 Mile
Package Contents
  • iConverter 100FF ST Multimode 5km to ST Single-Mode 30km Plug-in Module Wide Temp
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)8 oz
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3u 100BASE-FX
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
Additional Information

Operating Temperature Range:

  • -40 to +60 deg C
Product FamilyiConverter 100FF
View full details
$1,118.99 USD
$1,118.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

iConverter 100Mbps Ethernet Fiber to Fiber Media Converter ST Multimode 5km to Single-Mode 30km Module Wide Temp - 1 x 100BASE-FX; 1 x 100BASE-LX; Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8620-1-W

Features

  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • Supports optical fiber cable for durable performance minimal signal loss and fast data transfers to greater distances
  • With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
  • Takes minimal energy and effort to get installed internally

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Number of ST Ports2
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
ST Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Product Series100FF
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model8620-1-x
Product NameiConverter 100FF ST Multimode 5km to ST Single-Mode 30km Plug-in Module Wide Temp
Network Technology100Base-FX
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8620-1-W
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter 100FF media converter provides multimode to single-mode and dual fiber to single fiber conversion. The 100FF is a cost-effective solution for extending fiber network distances.

iConverter 100FF models are available with multimode single-mode and single-fiber options. The single-mode fiber port supports ST or SC connectors and distances up to 120km. The multimode fiber port supports ST or SC connectors and distances up to 5km.

The 100FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection isolation and reporting.

The iConverter 100FF is available as a compact unmanaged standalone unit or as a chassis plug-in module that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis or in a 1-Module chassis with AC or DC power input.

The standalone 100FF can be wall-mounted and is DC powered. It can be ordered with an external AC/DC power adapter or it can be directly powered using a 2-pin terminal connector.
Maximum Distance Supported18.64 Mile
Package Contents
  • iConverter 100FF ST Multimode 5km to ST Single-Mode 30km Plug-in Module Wide Temp
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)8 oz
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3u 100BASE-FX
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
Additional Information

Operating Temperature Range:

  • -40 to +60 deg C
Product FamilyiConverter 100FF
