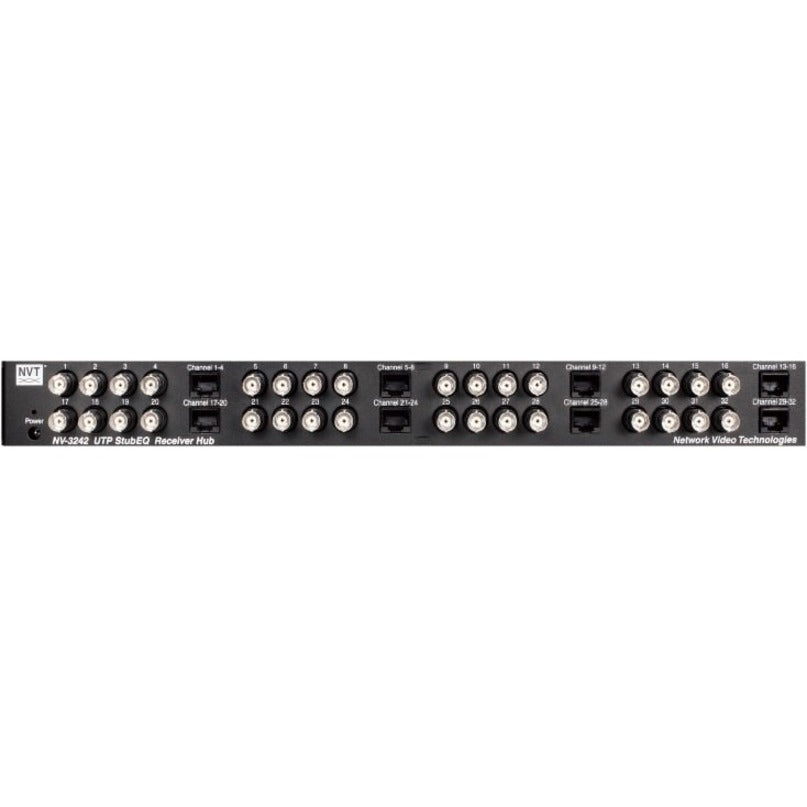

NVT Phybridge 32-Channel StubEQ Active Receiver Hub

NVT Phybridge 32-Channel StubEQ Active Receiver Hub

SKU: 1058940474      MFR: Phybridge Inc

Product Description

NVT Phybridge 32-Channel StubEQ Active Receiver Hub - 1509186.35 ft Range - 8 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable Wall Mountable Desktop

Manufacturer : Phybridge Inc

Manufacturer Part No : NV-3242

Product Details

Number of Network (RJ-45) Ports8
Media Type SupportedTwisted Pair
Connectivity TechnologyWired
Brand NameNVT Phybridge
Form FactorRack-mountable
Product TypeVideo Extender Receiver
Twisted Pair Cable StandardCategory 5
Maximum Operating Distance1509186.35 ft
Network (RJ-45)Yes
Receiver Height1.70"
Receiver Width17"
Receiver Depth8.13"
ManufacturerPhybridge Inc
Product ModelNV-3242
Product Name32-Channel StubEQ Active Receiver Hub
Manufacturer Part NumberNV-3242
Manufacturer Website Addresshttp://www.phybridge.com
Marketing InformationFeatures:
  • Adaptive StubEQTM fully automatic 2-band equalization provides adjustment-free equalization every time
  • Compact rack-mountable 19" 1U high enclosure features 32 channels
  • Full motion CCTV video at distances up to 1500ft (460km) when used with any passive NVT transceiver or hub; 2000ft (600m) when used with the NV-653T active transmitter
  • RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptors (included)
  • Exceptional interference rejection
  • Built-in transient protection and ground-lifting
  • Compatible with qualified UTP cameras
  • Includes rack mount hardware and eight NV-RJ45A adaptors
  • Limited lifetime warranty
Employing NVT's latest generation StubEQTM technology the NV-3242 is a 32-channel active (amplified) hub that allows the transmission of full-motion monochrome or color video for distances up to 2000ft (600m) using Category 2 or better unshielded twisted-pair (UTP) wire. The receiver hub continuously and automatically conditions the video signal compensating for cable attenuation ground loops and voltage transients independent of video signal content. The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone datacom or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "humbars" when ground-potential differences exist. With built-in transient protection damaging voltage spikes are eliminated.
Package Contents
  • 32-Channel StubEQ Active Receiver Hub
  • Rack Mount "L" Brackets
  • Rubber Feet
  • 8 x NV-RJ45A RJ45 to-Screw-Terminal
Limited WarrantyLifetime
