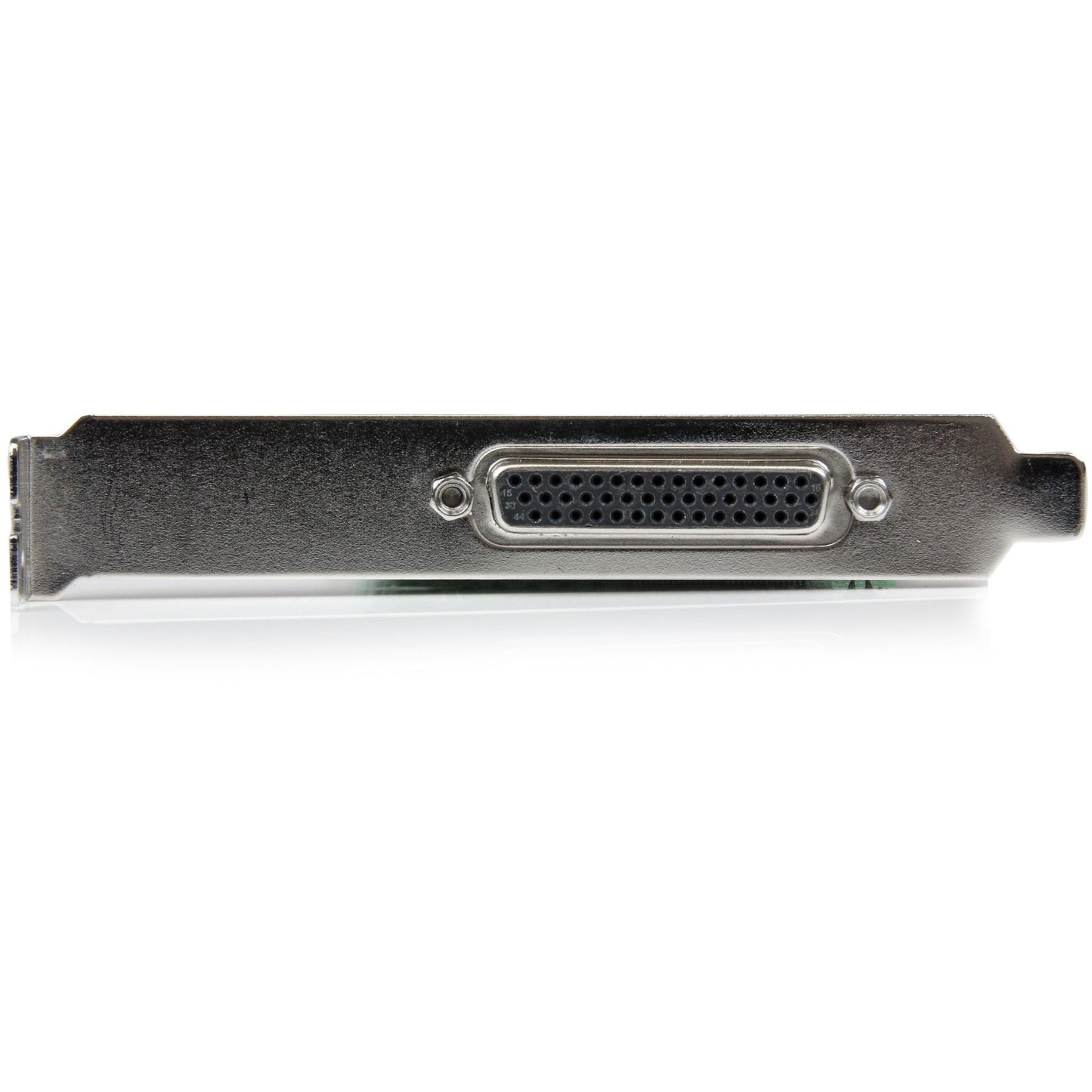

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485

SKU: 1023915507      MFR: StarTech.com

GTIN: 065030849357

Product Description

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - Add two RS232 and two RS422/485 serial ports to your PC through a PCI-Express expansion slot - pcie rs485 - pci express rs485 - pcie rs485 - pci express rs422 - pcie rs422

Manufacturer : StarTech.com

Manufacturer Part No : PEX4S232485

Features

  • 4 port (2 x RS232 2 x RS422/485) serial combo card
  • RS232 data transfer rates up to 460 Kbps
  • Supports 2-Wire / 4-Wire RS485 modes
  • 256-byte deep FIFO per transmitter and receiver
  • Standard and low-profile bracket included
  • Compliant with PCI-Express Specification 1.0a
  • Supports PCI Power Management 1.1

Product Details

Product TypeMultiport Serial Adapter
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Data Transfer Rate3.59 Mbit/s
TAA CompliantYes
Country of OriginTaiwan
Height2.7"
Width0.6"
Brand NameStarTech.com
Form FactorPlug-in Card
ManufacturerStarTech.com
Product Name4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
Manufacturer Part NumberPEX4S232485
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232 and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol supporting RS-232 RS-422 RS-485 2-wire or RS-485 4-wire operating modes.

A flexible solution for adding serial ports to full-sized or small form factor systems the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer
Packaged Quantity1
Platform SupportedPC
Ports Expandability4 x DB-9 RS-232/422/485 - Serial Via Cable
Package Contents
  • 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
  • 1 x Breakout Cable
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
Limited WarrantyLifetime
Host InterfacePCI Express x1
Weight (Approximate)2.40 oz
Number of Ports4
View full details
