• StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650
    StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650
  • StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650
1 2

StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650

StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650

SKU: 1020869901      MFR: StarTech.com

GTIN: 65030844611

Product Description

StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 - Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot - mini pcie serial card - 4 port rs232 - 4 port serial adapter - 4 port serial pci express mini card - pci express mini card db9

Manufacturer : StarTech.com

Manufacturer Part No : MPEX4S552

Features

  • Four high speed RS232 serial ports with data transfer rates up to 921.6 Kbps
  • High Performance 16650 UART
  • Includes 4x 30cm IDC to DB9 serial cables
  • 256-byte deep FIFO per transmitter and receiver

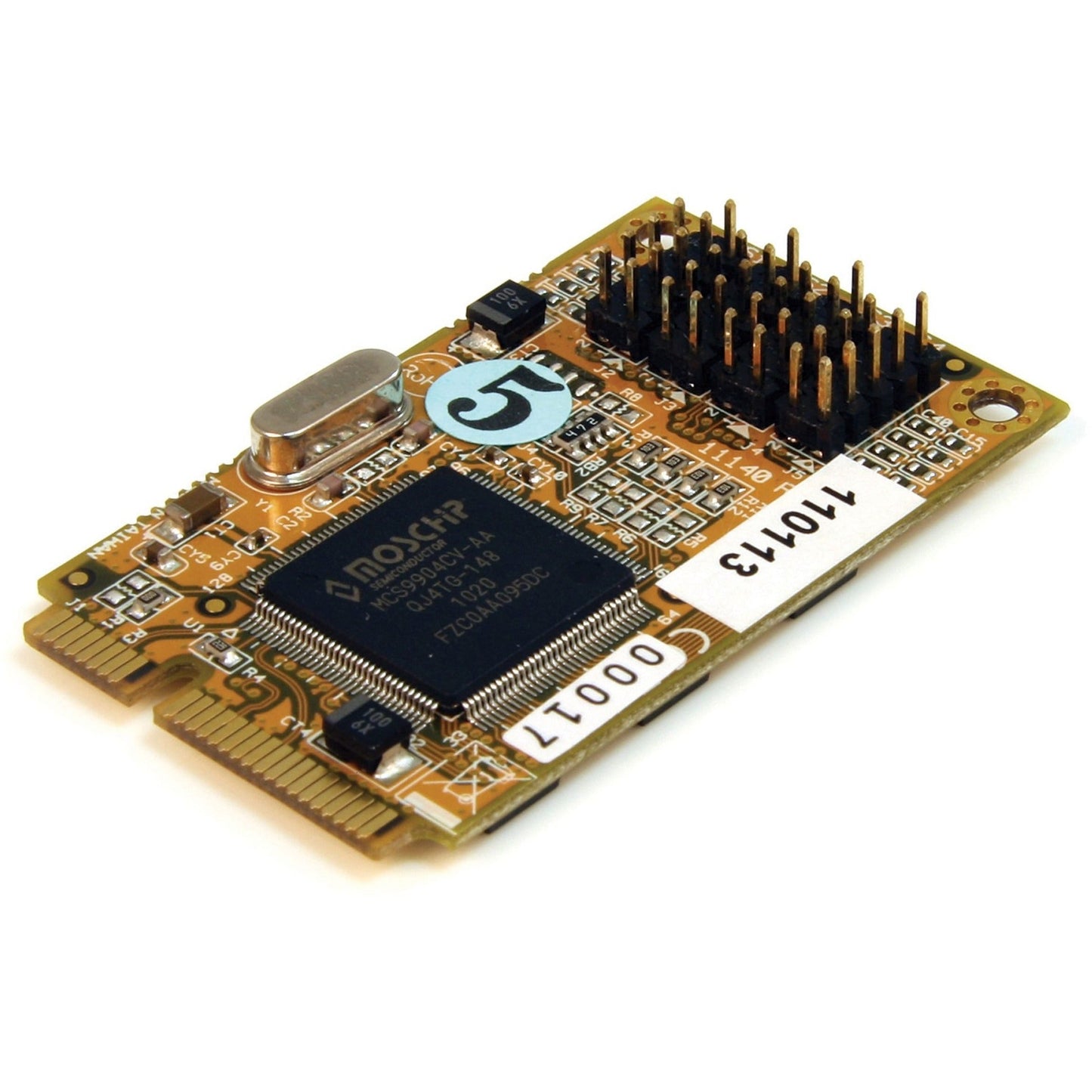

  • Native single-chip single lane PCI Express
  • In-band software flow control using programmable Xon/Xoff in both directions
  • Automated out-of-band hardware flow control using RTS/CTS
  • Compliant with PCI Express base specifications revision 1.1

Product Details

Product TypeMultiport Serial Adapter
Environmentally FriendlyYes
Environmental CertificationRoHS
Card LengthFull-length
Maximum Data Transfer Rate7.20 Mbit/s
TAA CompliantYes
Country of OriginTaiwan
Height1.2"
Width0.4"
Brand NameStarTech.com
Form FactorPlug-in Card
ManufacturerStarTech.com
Product Name4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
Manufacturer Part NumberMPEX4S552
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.

A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .

Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

More from the Manufacturer
Ports Expandability4 x DB-9 RS-232 - Serial
Package Contents

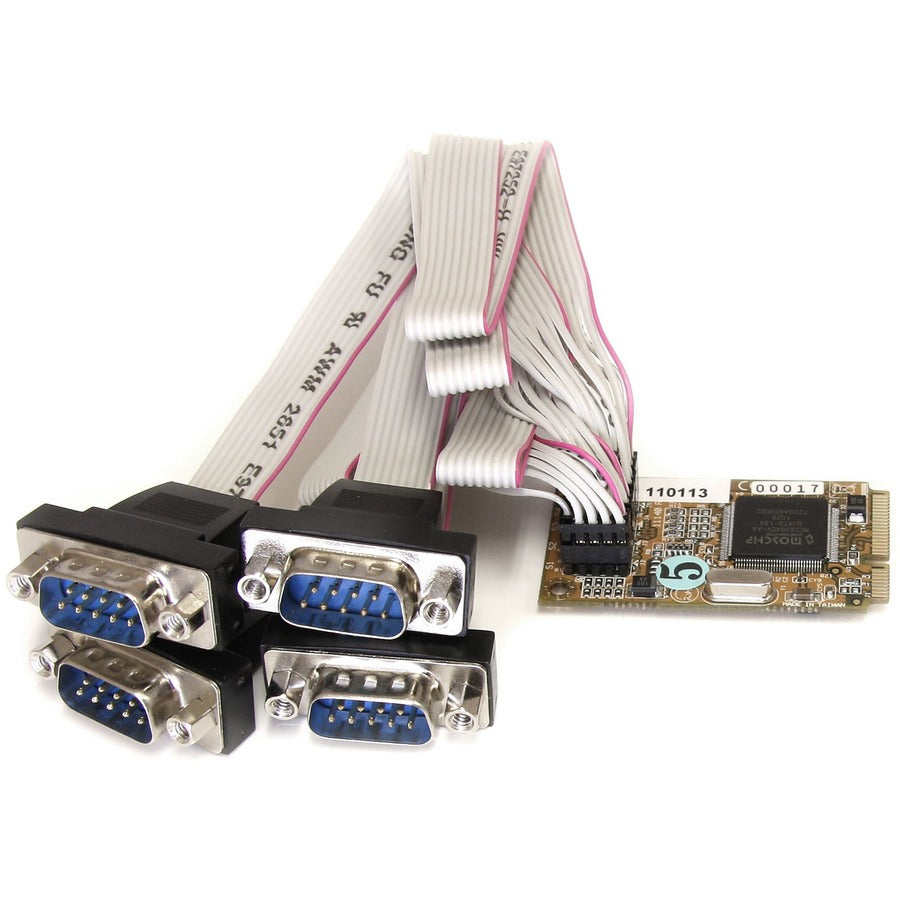

  • 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
  • 4 x DB9 Ribbon Cable
  • 1 x Driver CD
  • 1 x Instruction Manual
Limited WarrantyLifetime
Host InterfaceMini PCI Express
Weight (Approximate)5.30 oz
Number of Ports4
ColorGreen
Platform SupportedPC
View full details
$94.99 USD
$94.99
Sale Sold out

In Stock

In-Stock Will be immediately shipped once you confirm your order


Update


Shipping calculated at checkout.

StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 - Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot - mini pcie serial card - 4 port rs232 - 4 port serial adapter - 4 port serial pci express mini card - pci express mini card db9

Manufacturer : StarTech.com

Manufacturer Part No : MPEX4S552

Features

  • Four high speed RS232 serial ports with data transfer rates up to 921.6 Kbps
  • High Performance 16650 UART
  • Includes 4x 30cm IDC to DB9 serial cables
  • 256-byte deep FIFO per transmitter and receiver
  • Native single-chip single lane PCI Express
  • In-band software flow control using programmable Xon/Xoff in both directions
  • Automated out-of-band hardware flow control using RTS/CTS
  • Compliant with PCI Express base specifications revision 1.1

Product Details

Product TypeMultiport Serial Adapter
Environmentally FriendlyYes
Environmental CertificationRoHS
Card LengthFull-length
Maximum Data Transfer Rate7.20 Mbit/s
TAA CompliantYes
Country of OriginTaiwan
Height1.2"
Width0.4"
Brand NameStarTech.com
Form FactorPlug-in Card
ManufacturerStarTech.com
Product Name4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
Manufacturer Part NumberMPEX4S552
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.

A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .

Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

More from the Manufacturer
Ports Expandability4 x DB-9 RS-232 - Serial
Package Contents
  • 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
  • 4 x DB9 Ribbon Cable
  • 1 x Driver CD
  • 1 x Instruction Manual
Limited WarrantyLifetime
Host InterfaceMini PCI Express
Weight (Approximate)5.30 oz
Number of Ports4
ColorGreen
Platform SupportedPC
