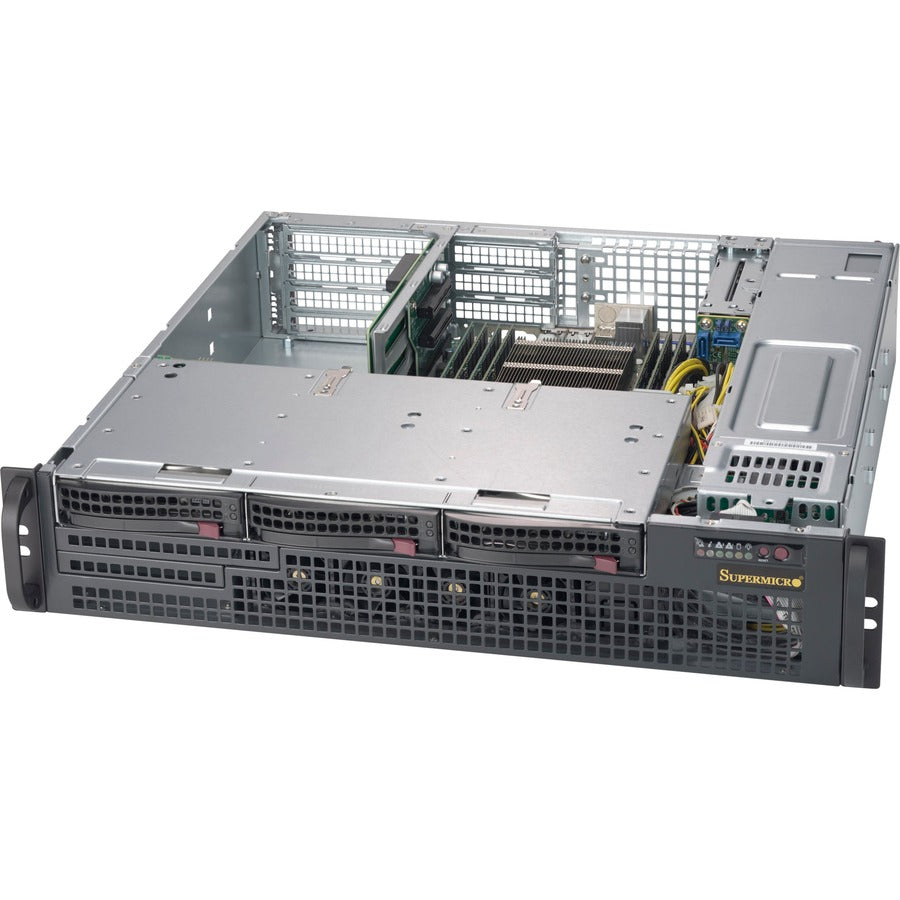

• Supermicro SuperChassis 825MBTQC-R802WB
    Supermicro SuperChassis 825MBTQC-R802WB
1 1

Supermicro SuperChassis 825MBTQC-R802WB

Supermicro SuperChassis 825MBTQC-R802WB

SKU: 1040658149      MFR: Supermicro Computer Inc

GTIN: 672042291601

Product Description

Supermicro SuperChassis 825MBTQC-R802WB - Rack-mountable - Black - 2U - 3 x Bay - 4 x 1.57" x Fan(s) Installed - 2 x 800 W - Power Supply Installed - 5 x Fan(s) Supported - 3 x External 3.5" Bay - 7x Slot(s)

Manufacturer : Supermicro Computer Inc

Manufacturer Part No : CSE-825MBTQC-R802WB

Features

  • 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO 12.8" x 13.4" motherboards
  • 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
  • 3-port SC825M SAS3 12Gbps TQ backplane support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
  • 1U 800W Redundant Power Supply 76mm width W/PMbus Titanium
  • 4 full height expansion slot(s) (Riser Card Required) 3 low-profile expansion slot(s) (Riser Card Required)
  • 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  • Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control

Product Details

Product TypeComputer Case
Number of Fans Supported5
Number of Fans Installed4
Number of External 3.5" Bays3
Compatible Rack Unit2U
Number of Power Supplies Supported2
Number of Power Supplies Installed2
Power Supply Wattage800 W
Number of Total Expansion Bays3
Number of Total Expansion Slots7
Installed Fan Size1.57"
Power Supply InstalledYes
Height3.5"
Width17.2"
Depth17.7"
ColorBlack
Brand NameSupermicro
Form FactorRack-mountable
ManufacturerSupermicro Computer Inc
Product Model825MBTQC-R802WB
Product NameSuperChassis 825MBTQC-R802WB
Product LineSuperChassis
Manufacturer Part NumberCSE-825MBTQC-R802WB
Manufacturer Website Addresshttp://www.supermicro.com
Package Contents
  • SuperChassis 825MBTQC-R802WB
  • 1 x SC823M Intel DP X10 Universal Mylar Air Shroud 12x13MB
  • 1 x 3-port SC825M SAS3 12Gbps TQ backplane support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
  • 1 x Round 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
  • 2 x NEMA5-15P to C13 US power cord 16AWG 6ft PBF (default for high watt)
  • 1 x Black DVD dummy cover for SC825M
  • 4 x 40x40x56 mm 13K-11K RPM Counter-rotating FanRoHS/REACH
  • 1 x Front control board Dual color LED(FP836-D)forSC823M825825M828829835836
  • 1 x Fan Tray for Five 4056 Fans for 825M
  • 1 x Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
  • 3 x Black gen 5.5 hot-swap 3.5"; HDD tray
  • 1 x HDD cage housing 3 trays for SC825M
  • 1 x SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
  • 2 x 1U 800W 90-264VAC/47-63Hz and wide DC input 180Vdc~300Vdc
  • 1 x Rail set quick/quick default for 23U 17.2";W
  • 1 x SC826B 216B WIO rear window
Limited Warranty3 Year
Product FamilySuperChassis
View full details
$1,107.99 USD
$1,107.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Supermicro SuperChassis 825MBTQC-R802WB - Rack-mountable - Black - 2U - 3 x Bay - 4 x 1.57" x Fan(s) Installed - 2 x 800 W - Power Supply Installed - 5 x Fan(s) Supported - 3 x External 3.5" Bay - 7x Slot(s)

Manufacturer : Supermicro Computer Inc

Manufacturer Part No : CSE-825MBTQC-R802WB

Features

  • 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO 12.8" x 13.4" motherboards
  • 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
  • 3-port SC825M SAS3 12Gbps TQ backplane support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
  • 1U 800W Redundant Power Supply 76mm width W/PMbus Titanium
  • 4 full height expansion slot(s) (Riser Card Required) 3 low-profile expansion slot(s) (Riser Card Required)
  • 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  • Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control

Product Details

Product TypeComputer Case
Number of Fans Supported5
Number of Fans Installed4
Number of External 3.5" Bays3
Compatible Rack Unit2U
Number of Power Supplies Supported2
Number of Power Supplies Installed2
Power Supply Wattage800 W
Number of Total Expansion Bays3
Number of Total Expansion Slots7
Installed Fan Size1.57"
Power Supply InstalledYes
Height3.5"
Width17.2"
Depth17.7"
ColorBlack
Brand NameSupermicro
Form FactorRack-mountable
ManufacturerSupermicro Computer Inc
Product Model825MBTQC-R802WB
Product NameSuperChassis 825MBTQC-R802WB
Product LineSuperChassis
Manufacturer Part NumberCSE-825MBTQC-R802WB
Manufacturer Website Addresshttp://www.supermicro.com
Package Contents
  • SuperChassis 825MBTQC-R802WB
  • 1 x SC823M Intel DP X10 Universal Mylar Air Shroud 12x13MB
  • 1 x 3-port SC825M SAS3 12Gbps TQ backplane support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
  • 1 x Round 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
  • 2 x NEMA5-15P to C13 US power cord 16AWG 6ft PBF (default for high watt)
  • 1 x Black DVD dummy cover for SC825M
  • 4 x 40x40x56 mm 13K-11K RPM Counter-rotating FanRoHS/REACH
  • 1 x Front control board Dual color LED(FP836-D)forSC823M825825M828829835836
  • 1 x Fan Tray for Five 4056 Fans for 825M
  • 1 x Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
  • 3 x Black gen 5.5 hot-swap 3.5"; HDD tray
  • 1 x HDD cage housing 3 trays for SC825M
  • 1 x SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
  • 2 x 1U 800W 90-264VAC/47-63Hz and wide DC input 180Vdc~300Vdc
  • 1 x Rail set quick/quick default for 23U 17.2";W
  • 1 x SC826B 216B WIO rear window
Limited Warranty3 Year
Product FamilySuperChassis
