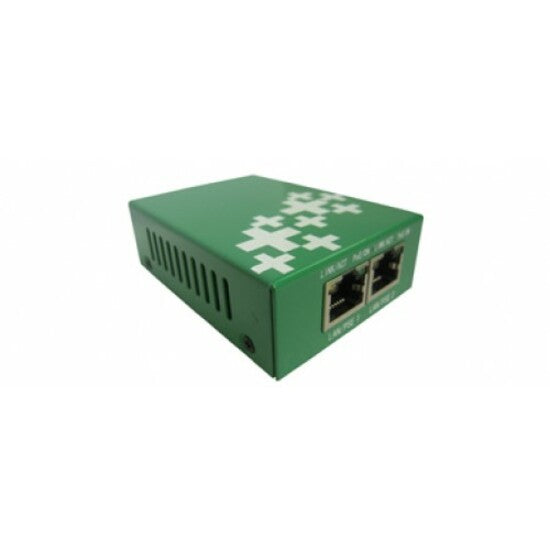

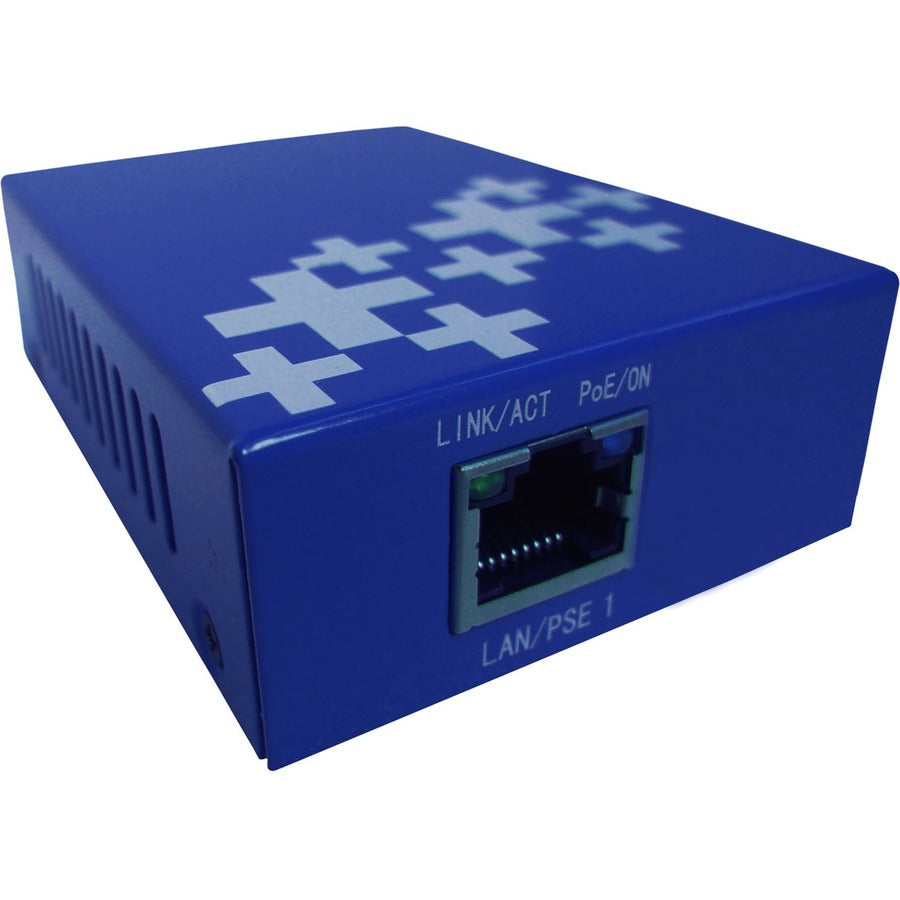

4XEM 1-Port 100M 10/100 Mbps PoE Extender

4XEM 1-Port 100M 10/100 Mbps PoE Extender

SKU: 1024354493      MFR: 4XEM Corporation

GTIN: 0873791005789

Product Description

4XEM 1-Port 100M 10/100 Mbps PoE Extender

Manufacturer : 4XEM Corporation

Manufacturer Part No : 4XLS101

Product Details

Product TypeNetwork Extender
Brand Name4XEM
Height1"
Width2.5"
Length3.4"
Manufacturer4XEM Corporation
Product Name1-Port PoE Extender
Manufacturer Part Number4XLS101
Manufacturer Website Addresshttp://www.4xem.com
Marketing InformationDeliver both data and power over Ethernet and beyond 100 meters to a PoE network device with 4XEM'S 100M 10/100 PoE Extender. This durable and high quality PoE Extender supports 10/100Mbps data rates and delivers IEEE 802.3 at power levels up to 25.5W. Powered via PoE inputs the extender does not require local power. Simply plug and play with no configuration required. Multiple extenders can be cascaded to reach up to 500 meters. Go long!

Problem it solves: Cost effective solution to easily get juice to a network camera IP phone or other network powered device beyond the 100 meter PoE limit.

4XEM gear is respected industry wide for its high performance premium quality and durability.
Limited Warranty1 Year
Additional InformationPoE Functions

PoE standard

IEEE 802.3af Power over Ethernet / PSE

IEEE 802.3at Power over Ethernet / PSE

PoE Pin definition

Endspan?12?36? Defaulting

Midspan?45?78? Optional

PoE ports

Max Watts: 15.4 Watts

Max Watts: 25.5 Watts

Hardware

Ports

2x10/100M Auto-sensing (LS101)

3x10/100M Auto-sensing (LS102)

5x10/100M Auto-sensing (LS105)

Cabling

Cat.5 UPT cable ??100m?

LED indicator

Power Link Act PoE

Dimension(L*W*H)

86mm*64mm*25mm

Enviornment

Working Temp.: 0??55?

Storage Temp: -40??70?

Operating Humidity: 10%?90%Non-condensing

Storage Humidity: 5%?90% Non-condensing

Power

PoE inputs

Watts

Max 5 W

Network Function

Standards

IEEE 802.3 802.3u 802.3x 802.3af 802.3at CSMA/CD TCP/IP

Function

Compatible with IEEE 802.3af PD devices

PoE power priority

Wire-speed forwarding

IEEE802.3X Full duplex flow control and Backpressure

Half duplex flow control
View full details
