• RDR ENTRYPROX SC GRY LEAD FREE
    RDR ENTRYPROX SC GRY LEAD FREE
1 1

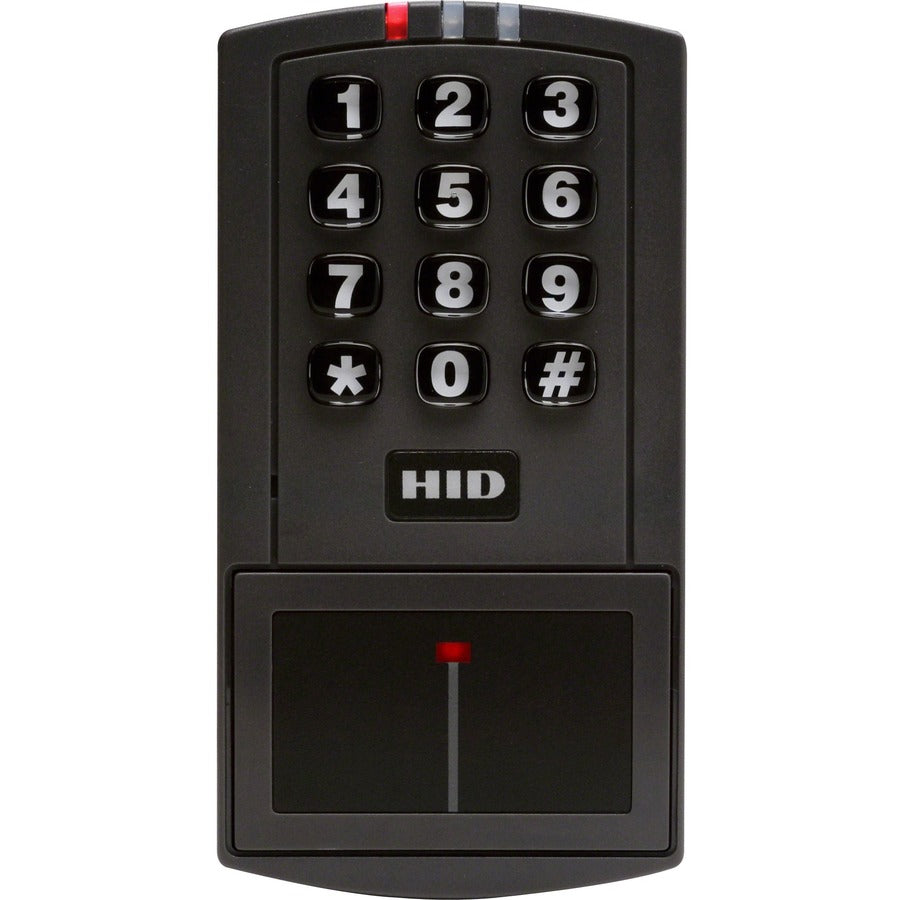

HID EntryProx Reader

HID EntryProx Reader

SKU: 1013016155      MFR: HID Global Corporation

Product Description

HID EntryProx Reader - 3" Operating Range - Gray

Manufacturer : HID Global Corporation

Manufacturer Part No : 4045CGNU0

Features

  • Monitor Inputs - Door Position - N.O. dry contact. Request to Exit - N.O. dry contact
  • Sounder - 4000Hz defeatable
  • Relay Outputs - Strike Relay - Form C switches up to 1A @ 30 VDC. Aux Relay - Form C switches up to 1A @ 30 VDC
  • LEDs - Bi-Color (Red/Green) Amber Infrared (use with Data Transfer Device (DTD) accessory)
  • Operation Strike Time: 1 - 99 seconds (Adjustable); Strike Mode: Access Timer or Toggle/Latch; Door Ajar Time: 10 - 990 Seconds (Adjustable)
  • Card Programming - 26-bit format - batch enrollment; Other formats - present card to enroll
  • Facility Code Processing Options (26-bit only) - Check Facility Code and Card ID; Check Facility Code only (accept any ID#)
  • Options - Various options are user programmable - not ordered by model. Accessories: Security Tool 04-0001-03

Product Details

Product TypeSmart Card Reader
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Operating Range3"
Height5.3"
Width2.8"
Depth1.6"
ColorGray
Brand NameHID
ManufacturerHID Global Corporation
Product Model4045CGNU0
Product NameEntryProx Reader
Manufacturer Part Number4045CGNU0
Manufacturer Website Addresshttp://www.hidcorp.com
Marketing Information

STAND-ALONE SINGLE-DOOR PROXIMITY READER

  • Trouble-Free Keypad Input - Extra secure keypad enables PIN entry or programming.
  • Remote Monitoring - Configurable to be used in conjunction with an on-line system.
  • Faster Programming - Batch load up to 2000 HID cards or keytags with a single keypad command sequence.
  • Efficient Badge Administration - Block Delete allows deletion of cards/keytags by user location.
HID's EntryProx™ stand-alone reader truly stands alone in what it delivers.

Compatible with all HID proximity cards and keytags EntryProx™ provides single-door proximity access control and is ideal for unique applications. The reader designed to be weather- and vandal-resistant can be mounted indoors or outdoors up to 10 feet away from the control unit using the detachable antenna module. The versatile attractive unit is easily modified to become an on-line reader by switching to Wiegand output mode allowing it to connect to any OEM controller and provide card and PIN output.

The ADA-compliant 12-position keypad features large white-on-black numbers enabling PIN entry or programming with optional audio feedback and a raised dot on the 5 key. For extra security EntryProx's keypad incorporates the "invalid PIN" lockout feature preventing unauthorized trial-and-error PIN code entry.

The reader also features faster programming enabling end-users to batch load up to 2000 HID cards or keytags in any format up to 37 bits by entering a single keypad command sequence. A Block Delete feature allows for efficient badge administration by deleting a sequential range of cards/keytags from the EntryProx by user location.

Customers can select the HID EntryProx Reader with confidence because HID offers a lifetime product warranty and global technical support.
Limited WarrantyLifetime
View full details
$513.99 USD
$513.99
Sale Sold out

Back Order

Get it by Thu, Feb 05 - Tue, Feb 10


Update


Shipping calculated at checkout.

HID EntryProx Reader - 3" Operating Range - Gray

Manufacturer : HID Global Corporation

Manufacturer Part No : 4045CGNU0

Features

  • Monitor Inputs - Door Position - N.O. dry contact. Request to Exit - N.O. dry contact
  • Sounder - 4000Hz defeatable
  • Relay Outputs - Strike Relay - Form C switches up to 1A @ 30 VDC. Aux Relay - Form C switches up to 1A @ 30 VDC
  • LEDs - Bi-Color (Red/Green) Amber Infrared (use with Data Transfer Device (DTD) accessory)
  • Operation Strike Time: 1 - 99 seconds (Adjustable); Strike Mode: Access Timer or Toggle/Latch; Door Ajar Time: 10 - 990 Seconds (Adjustable)
  • Card Programming - 26-bit format - batch enrollment; Other formats - present card to enroll
  • Facility Code Processing Options (26-bit only) - Check Facility Code and Card ID; Check Facility Code only (accept any ID#)
  • Options - Various options are user programmable - not ordered by model. Accessories: Security Tool 04-0001-03

Product Details

Product TypeSmart Card Reader
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Operating Range3"
Height5.3"
Width2.8"
Depth1.6"
ColorGray
Brand NameHID
ManufacturerHID Global Corporation
Product Model4045CGNU0
Product NameEntryProx Reader
Manufacturer Part Number4045CGNU0
Manufacturer Website Addresshttp://www.hidcorp.com
Marketing Information

STAND-ALONE SINGLE-DOOR PROXIMITY READER

  • Trouble-Free Keypad Input - Extra secure keypad enables PIN entry or programming.
  • Remote Monitoring - Configurable to be used in conjunction with an on-line system.
  • Faster Programming - Batch load up to 2000 HID cards or keytags with a single keypad command sequence.
  • Efficient Badge Administration - Block Delete allows deletion of cards/keytags by user location.
HID's EntryProx™ stand-alone reader truly stands alone in what it delivers.

Compatible with all HID proximity cards and keytags EntryProx™ provides single-door proximity access control and is ideal for unique applications. The reader designed to be weather- and vandal-resistant can be mounted indoors or outdoors up to 10 feet away from the control unit using the detachable antenna module. The versatile attractive unit is easily modified to become an on-line reader by switching to Wiegand output mode allowing it to connect to any OEM controller and provide card and PIN output.

The ADA-compliant 12-position keypad features large white-on-black numbers enabling PIN entry or programming with optional audio feedback and a raised dot on the 5 key. For extra security EntryProx's keypad incorporates the "invalid PIN" lockout feature preventing unauthorized trial-and-error PIN code entry.

The reader also features faster programming enabling end-users to batch load up to 2000 HID cards or keytags in any format up to 37 bits by entering a single keypad command sequence. A Block Delete feature allows for efficient badge administration by deleting a sequential range of cards/keytags from the EntryProx by user location.

Customers can select the HID EntryProx Reader with confidence because HID offers a lifetime product warranty and global technical support.
Limited WarrantyLifetime
