• ICONV T3/E3 COAX TO SC SM SF
    ICONV T3/E3 COAX TO SC SM SF
1 1

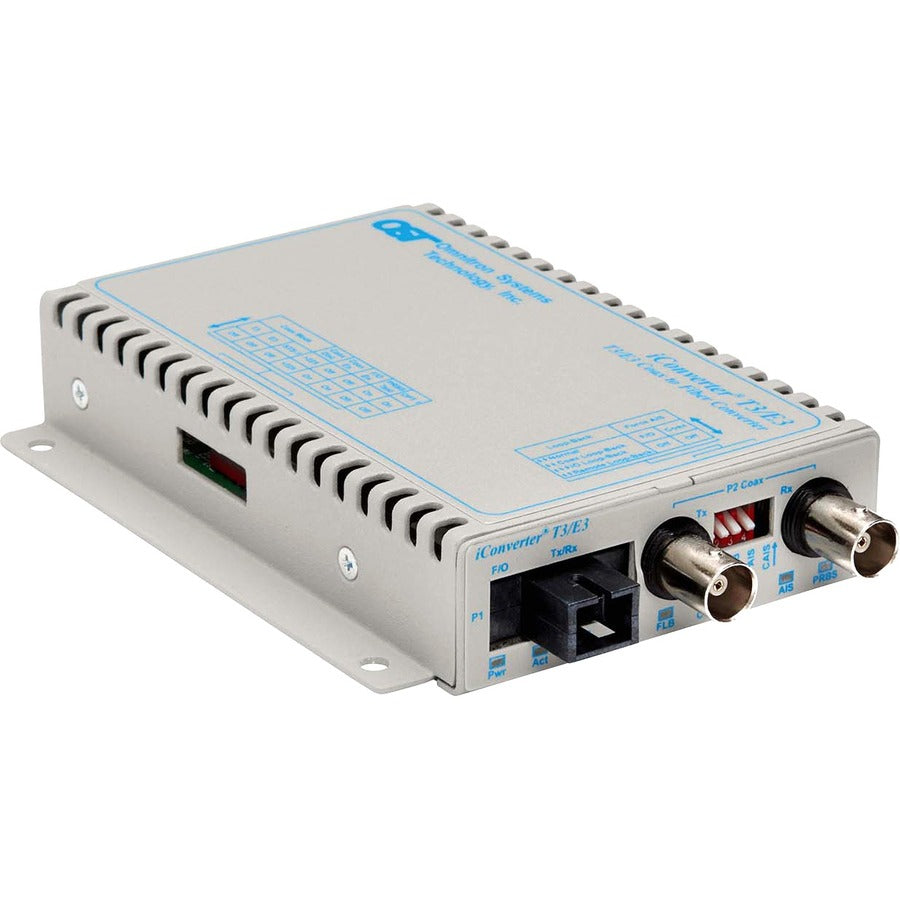

iConverter T3/E3 Single-Fiber Media Converter Coaxial SC Single-mode 20km BiDi

iConverter T3/E3 Single-Fiber Media Converter Coaxial SC Single-mode 20km BiDi

SKU: 1018401440      MFR: Omnitron Systems

GTIN: 0800975024540

Product Description

iConverter T3/E3 Single-Fiber Media Converter Coaxial SC Single-mode 20km BiDi - 1 x T3/E3/DS-3; 1 x SC Single-mode Single-Fiber (1550/1310); Wall-Mount Standalone; US AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8751-1-D

Features

  • Expand your network capabilities with this 3 transceiver/media converter
  • Coaxial cable for environment requiring moderate coverage and low bandwidth
  • With T3/E3 technology get up to 34.368Mbps (E-carrier) or 44.736Mbps (T-carrier) data transfer rate over service provider link
  • No hassle of internal installation install externally

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of SC Ports1
Media Type SupportedCoaxial
Fiber Mode SupportedSingle-mode
Total Number of Ports3
SC Port TypeSimplex
Fiber Optic Wavelength1550 nm
Country of OriginUnited States
Height1"
Width3.1"
Depth4.8"
Product SeriesT3/E3
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model8751-1-x
Product NameiConverter T3/E3 SC Single-mode Single-Fiber 15/13 20km Wall-Mount Standalone US AC Powered
Network TechnologyT3/E3
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8751-1-D
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs multiplexers routers and video servers via fiber. T3/E3 media converters operate in pairs extending distances over fiber which improves noise immunity quality of service intrusion protection and network security.

  • Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
  • Framing independent; supports framed or unframed and channelized or fractional unchannelized data
  • Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
  • Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable and can be used in the 19-Module 5-Module 2-Module or 1-Module iConverter chassis
  • LED displays for immediate visual status of each port
  • Lifetime Warranty and free 24/7 Technical Support
Maximum Distance Supported12.43 Mile
Package Contents
  • iConverter T3/E3 SC Single-mode Single-Fiber 15/13 20km Wall-Mount Standalone US AC Powered
  • US Power Supply - 100-120Volt / 60Hz
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)1 lb
Number of BNC Ports2
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Input Voltage120 V AC
Additional Information

Input Voltage:

  • 5-32VDC via 2.5mm barrel (0.3A @ 9VDC)
  • 100-120VAC/60Hz (0.05A @ 120VAC)
Product FamilyiConverter T3/E3
