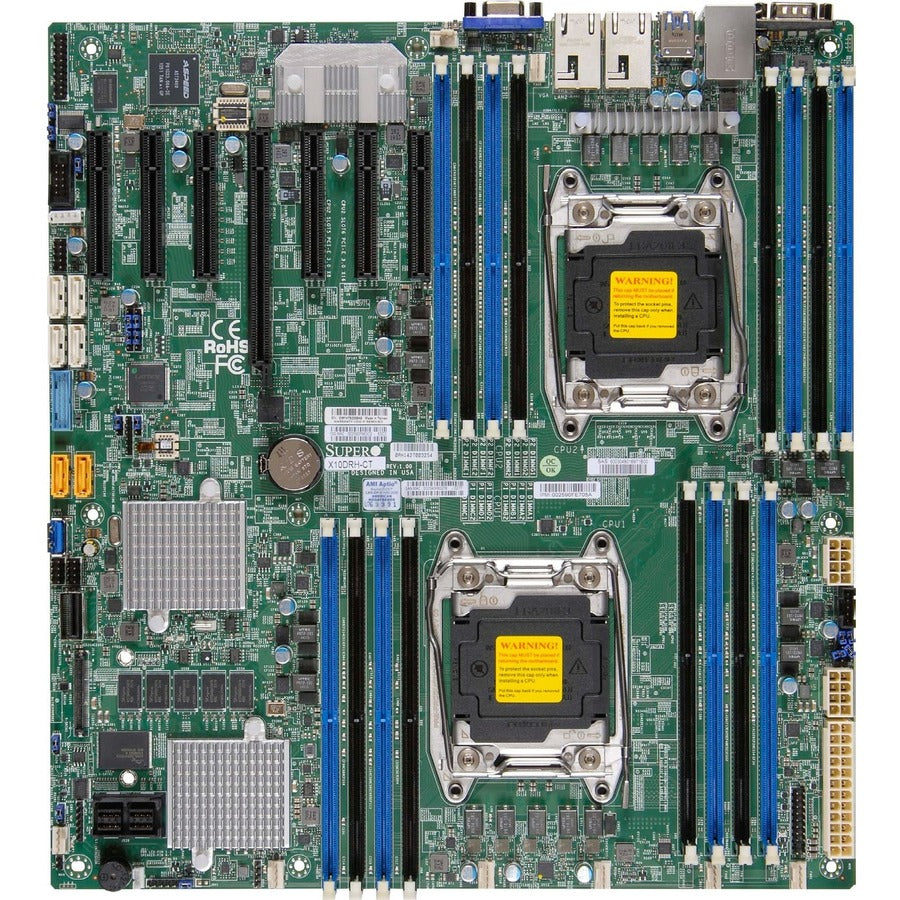

• Supermicro X10DRH-CT Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Extended ATX
1 1

Supermicro X10DRH-CT Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Extended ATX

Supermicro X10DRH-CT Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Extended ATX

SKU: 1028785562      MFR: Supermicro Computer Inc

Product Description

Supermicro X10DRH-CT Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Extended ATX - 1 TB DDR4 SDRAM Maximum RAM - DDR4-2133/PC4-17000 DDR4-1866/PC4-14900 DDR4-1600/PC4-12800 - DIMM LRDIMM RDIMM - 16 x Memory Slots - 10 x SATA Interfaces

Manufacturer : Supermicro Computer Inc

Manufacturer Part No : MBD-X10DRH-CT-B

Features

  • Experience high performance built-in security and remote management capabilities with compatible Intel Xeon processor
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power resulting in an optimal computer performance and improved memory heat dissipation
  • Supported 0 RAID levels provide data reliability and fault tolerance
  • Support ASPEED AST2400 controller that assure high-level performance and interconnectivity of datacenter applications
  • With 2 USB 3.0 port(s) data can be moved from your workstation to your device in fragments of a second
  • Retrieve a significant number of PCI slots expansion slots and peripheral ports that have an enhanced heat dissipation capability with the Extended ATX server motherboard

Product Details

Product TypeServer Motherboard
Environmentally FriendlyYes
Environmental CertificationRoHS
Chipset ManufacturerIntel
Chipset ModelC612
Number of Memory Slots16
Graphics Controller ManufacturerASPEED
Graphics Controller ModelAST2400
Number of SATA Interfaces10
Onboard VideoOn-board Video Chipset
RAID SupportedYes
Number of Total Expansion Slots7
Number of PCI Express x8 Slots6
Number of PCI Express x16 Slots1
VGAYes
Total Number of USB Ports4
Number of USB 3.0 Ports2
Total Number of Onboard USB Ports5
Number of Onboard USB 3.0 Ports3
Total Number of PCI Express Slots7
Memory Form FactorDIMM
10Gigabit EthernetYes
Number of Mini-SAS Interfaces8
Memory Speed Supported2133 MHz
Memory Speed Supported1866 MHz
Memory Speed Supported1600 MHz
Memory StandardDDR4-2133/PC4-17000
Width13"
Depth12"
Memory TechnologyDDR4 SDRAM
Processor SocketSocket LGA 2011-v3
Brand NameSupermicro
CompatibilitySupermicro Super Chasis

2U Chassis:
  • SC826BE1C-R920LPB

3U Chassis:
  • SC836BE2C-R1K03B
  • SC836BE1C-R1K03B
  • SC835TQ-R920B

Mid/Mini Tower Chassis:
  • SC732D4F-903B
  • SC732i-865B

4U / Tower Chassis:
  • SC743TQ-1200B
SuperServer(s) Model(s):
  • SSG-6028R-E1CR12T
  • SYS-2028R-C1RT
  • SYS-7048R-C1RT
Form FactorExtended ATX
ManufacturerSupermicro Computer Inc
Product ModelX10DRH-CT
Product NameX10DRH-CT Server Motherboard
Package TypeBulk
Processor SupportedXeon
RAID Levels0
Total Processor Supported2
Controller TypeSerial ATA/600
Manufacturer Part NumberMBD-X10DRH-CT-B
Manufacturer Website Addresshttp://www.supermicro.com
Marketing InformationXeon® E5 Family BOARDS / Socket R3 (LGA 2011)

Introducing Supermicro's latest generation of dual processor motherboard technology based on Intel's E5-2600 v3 Haswell processor. Supermicro's X10 motherboards are specifically designed to meet the demanding needs of today's complex computational workloads. Feature rich and highly expandable our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory NVMe/SAS3/SATA3 storage interfaces 1G/10GBASE-T 10G SFP+ 40GbE and Infiniband QDR/FDR. With its unprecedented set of features each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.
Maximum Memory Supported1 TB
Packaged Quantity1
Package Contents
  • X10DRH-CT Server Motherboard
  • 1 x Quick Reference Guide
  • 1 x I/O Shield
  • 2 x I/O Shield
Limited Warranty3 Year
View full details
$1,127.99 USD
$1,127.99
Sale Sold out

Back Order

Get it by Thu, Feb 05 - Tue, Feb 10


Update


Shipping calculated at checkout.
