• 2N Access Unit 2.0 RFID MultiFrequency

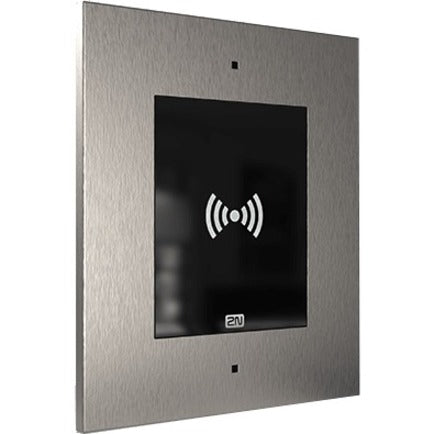

    2N Access Unit 2.0 RFID MultiFrequency
  • 2N Access Unit 2.0 RFID MultiFrequency
  • 2N Access Unit 2.0 RFID MultiFrequency
1 3

2N Access Unit 2.0 RFID MultiFrequency

2N Access Unit 2.0 RFID MultiFrequency

SKU: 1064617772      MFR: Axis Communications

Product Description

2N Access Unit 2.0 RFID MultiFrequency - RFID Card Reader Surface Mount Wall Mountable Robust PoE Tamper Switch Easy Installation Bluetooth Flush Mount - Access Control Residential - Zinc Glass - Nickel Black

Manufacturer : Axis Communications

Manufacturer Part No : 02146-001

Features

  • Ideal for residential projects
  • Fastest Bluetooth technology
  • You don't need a controller
  • Quick installation and remote administration
  • Flush mount or installation on glass
  • Timeless solution

Product Details

Product TypeDoor Station Card Reader Module
Brand Name2N
Device SupportedProximity Reader
ColorNickel - Frame
FeaturesRFID Card Reader
Compatibility
  • Axis 2N Access Control Unit
  • Axis 2N HID Prox Proximity Card

Axis 2N Card Readers:

  • EM4100
  • EM4102
ManufacturerAxis Communications
Product NameAccess Unit 2.0 RFID MultiFrequency
Product LineAccess Unit 2.0
Application/UsageAccess Control
Manufacturer Part Number02146-001
Manufacturer Website Addresshttp://www.axis.com
Marketing InformationDo you need a good-looking access reader for your project? All the residents of luxury residences will be delighted with the 2N Access Unit 2.0. Select modern access with a mobile phone or fingerprint. Do you prefer conventional methods? We also o er an RFID card reader or keypad. Cannot decide? Select a combination of several methods in one device. But don't look for controllers in our portfolio. They are already an integral part of every reader.
MaterialZinc
Weight (Approximate)1.76 lb
Product ColorNickel
Color Details
  • Nickel - Frame
  • Black - Frame
Certifications & Standards
  • IP54
  • IK08
Additional Information
  • Power supply: PoE and/or 12 V/1 A DC
  • PoE: 802.3af (Class 0-12.95 W)
  • LAN: 10/100BASE-TX with Auto-MDIX RJ-45 modular jack
  • Recommended cabling: Cat-5e or better
  • Active switch output: 8 to 12 V DC/max 600 mA
  • Passive switch: NO/NC contacts up to 30 V/1 A AC/DC
  • Tamper switch: native part of the 2N Access Unit 2.0
  • Audio: buzzer (97dBA)
  • Supported protocols: DHCP opt. 66 SMTP TFTP HTTP HTTPS Syslog
  • Frame: robust zinc cast frame with surface finish (nickel and black color)
  • Operating temperature: -40°F to +140°F
  • Storage temperature: -40°F to +158°F
  • Operating relative humidity: 10%-95% (non-condensing)
Supported frequencies:
  • 125 kHz variant
  • 13.56 MHz variant
  • 125 kHz and 13.56 MHz variant
125 kHz:
  • EM4100
  • EM4102
  • HID Prox
13.56 MHz:
  • ISO14443A ISO14443B NFC support
  • reads UID (CSN)
  • reads PACs ID (HID iClass cards with SIO object)
Inputs:
  • 2 inputs - in passive/active mode (-30 V to +30 V DC)
  • OFF = open or Uin> 1.5 V
  • ON = short-circuit or Uin< 1.5 V
Dimensions:

Wall (surface) mounting frame:
  • 1 module: 4.2 (W) x 5.11 (H) x 1.10 (D) inch
Flush mounting frame:
  • 1 module: 5.11 (W) x 6.02 (H) x 0.19 (D) inch
Flush mounting box (minimum hole):
  • 1 module: 4.25 (W) x 5.15 (H) x 1.77 (D) inch
