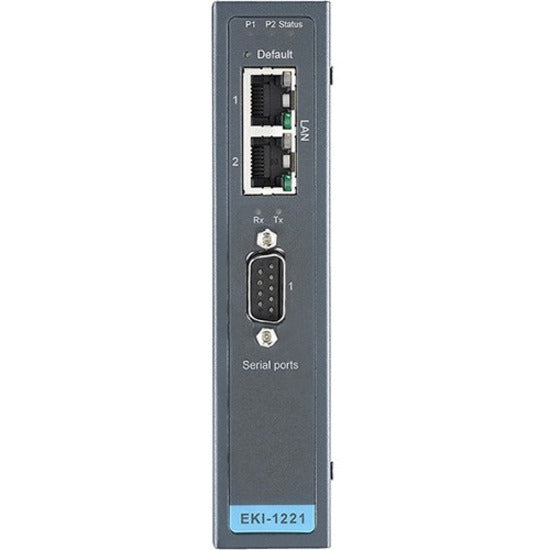

Advantech 1-port Modbus Gateway

Advantech 1-port Modbus Gateway

SKU: 1048345406      MFR: Advantech Co. Ltd

Product Description

Advantech 1-port Modbus Gateway - Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-1221-CE

Features

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Integration of Modbus TCP and Modbus RTU/ASCII networks
  • Supports up to 921.6 kbps and any baud rate setting
  • support up to 16 connections on each serial port under Modbus Master mode and 32 sessions under Modbus Slave mode.
  • Software selectable RS-232/422/485 communication
  • Mounts on DIN-rail and Wall mount
  • Supports surge protection for D.C. power ports with line to line 2 KV and line to earth 4 KV; for signal ports with 4 KV.
  • Built-in 15 KV ESD protection for all serial signals
  • Automatic RS-485 data flow control

Product Details

Product TypeDevice Server
Network Standard10/100Base-TX
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Serial PortYes
Media Type SupportedTwisted Pair
Number of Serial Ports1
Country of OriginTaiwan
Height5.5"
Width1.5"
Depth3.7"
Product SeriesEKI-1200
Brand NameAdvantech
Input Voltage Range12 V DC - 48 V DC
Form FactorRail-mountable
ManufacturerAdvantech Co. Ltd
Product ModelEKI-1221
Product Name1-port Modbus Gateway
Manufacturer Part NumberEKI-1221-CE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide redundancy and reliability. They provide a simple and cost-effective way to bring remote management and data accessibility to thousands of devices that cannot otherwise connect to a network. The EKI-1221/1222/1224 allow users to select master or slave operation mode for each serial port. In addition to allowing an Ethernet master to control serial slaves they also allow serial masters to control Ethernet slaves.
Limited Warranty5 Year
Weight (Approximate)1.04 lb
Product FamilyEKI-1200
View full details
$322.99 USD
$322.99
Sale Sold out

In Stock - 38 (Available by Thu, Jan 29 - Tue, Feb 03)


Update


Shipping calculated at checkout.
