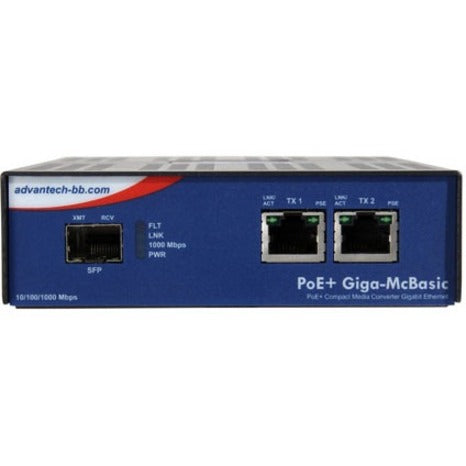

Advantech 10/100/1000Mbps PoE+ Media Converter

Advantech 10/100/1000Mbps PoE+ Media Converter

SKU: 1062373258      MFR: Advantech Co. Ltd

Product Description

Advantech 10/100/1000Mbps PoE+ Media Converter - 1 x Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-TX 1000Base-LX - Rack-mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-490-M1

Features

  • Supports one fixed optical connector with single-mode multi-mode or SFP and two RJ-45 ports
  • One RJ-45 port serves as PoE-PSE
  • Supports internal AC power
  • IEEE802.3at/af compliant (IMC-490) or IEEE802.3af compliant (IMC-480)
  • Supports jumbo frame functionality (up to 10240 bytes)
  • Supports configurable PoE reset on fiber Loss of Signal (LOS)
  • Support Link Fault Pass Through (LFPT)

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of PoE+ (RJ-45) Ports1
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports3
Fiber Optic Wavelength1300 nm
PoE Port TypePSE
Height1.5"
Width4.8"
Depth7.3"
Product SeriesIMC-490
Brand NameAdvantech
Form FactorRack-mountable
ManufacturerAdvantech Co. Ltd
Product Name10/100/1000Mbps PoE+ Media Converter
Network Technology10/100/1000Base-TX
Product LinePoE McBasic
Manufacturer Part NumberIMC-490-M1
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationIMC-480 and 490 are the perfect solutions for network applications that require Power-over-Ethernet (PoE) for locations inside buildings where PoE is required to power an Ethernet device. The IMC-480 and 490 series offer three ports: one fiber uplink for the network connection one PoE/PSE copper port that provides Power-over-Ethernet and one copper port to connect a non-PoE unit to the same fiber uplink.

As a fiber media converter it provides both power (up to 15.4W with IMC-480 and 25.5W with IMC-490) and data to a single remote device over standard CAT5 eliminating the need for additional power to the end device at the remote site. Additionally the IMC-480/490 media converters come with an internal AC power supply and support jumbo frames up to 10240 bytes. The IMC-480/490 series features Link Fault Pass Through (LFPT) with a DIP switch that has a diagnostic feature which can be enabled or disabled to assist the end user in troubleshooting a failed segment.
Maximum Distance Supported1.24 Mile
Power SourcePower Supply
Weight (Approximate)1.28 lb
Product FamilyPoE McBasic IMC-490
