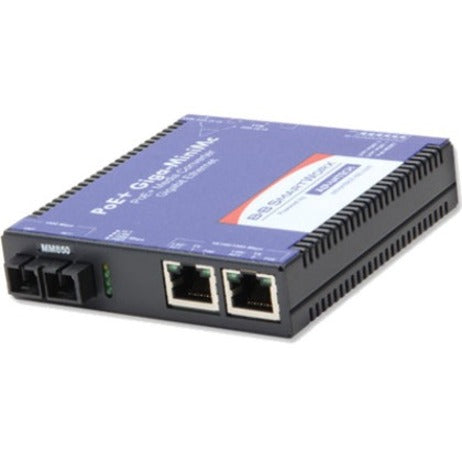

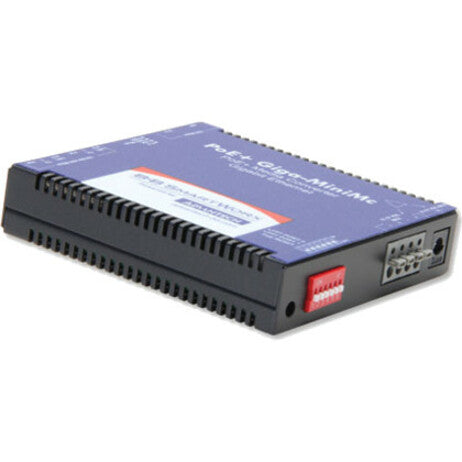

Advantech 10/100/1000Mbps PoE & PoE+ Media Converter

Advantech 10/100/1000Mbps PoE & PoE+ Media Converter

SKU: 1060512843      MFR: Advantech Co. Ltd

GTIN: 663069959728

Product Description

Advantech 10/100/1000Mbps PoE & PoE+ Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T 1000Base-X - DIN Rail Mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-390-MM-US

Features

  • Supports IEEE802.3at PoE+ (25.5W) and IEEE802.3af PoE (15.4W) standards
  • Serves as a power sourcing equipment (PSE) device
  • Supports jumbo frame functionality (up to 10240 bytes)
  • Supports multiple mounting options (desktop DIN rail or wall-mount)
  • Features in configurable PoE reset on fiber LOS
  • Supports Link Fault Pass Through (LFPT)

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of PoE+ (RJ-45) Ports1
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
Fiber Optic Wavelength850 nm
Country of OriginTaiwan
Height0.8"
Width3.6"
Depth3.8"
Product SeriesIMC-390
Brand NameAdvantech
Form FactorDIN Rail Mountable
ManufacturerAdvantech Co. Ltd
Product Name10/100/1000Mbps PoE & PoE+ Media Converter
Network Technology10/100/1000Base-T
Manufacturer Part NumberIMC-390-MM-US
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-380 and IMC-390 series are compact multi-port media converters that support both IEEE802.3at PoE+ and IEEE802.3af PoE standards. These unmanaged plug-n-play media converters with PoE capability are thus ideal solutions for Ethernet networks.

Designed with two 10/100/1000Base-T copper UTP ports and SFP or a fixed fiber transceiver 1x9 uplink port for the network connection the IMC-380 series can power one PD device through a standard CAT5 (or higher version) cable via one copper port while delivering data over the other port. The IMC-390 series is capable of powering up to two PD devices with a power budget of 60W.

The IMC-380 and IMC-390 series support Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair copper interface) and FX LinkLoss (Fiber fiber interface) from both local and remote IMC network media converters when used in pairs. This feature when enabled will pass a link fault through the device at each segment. If a link fails on one interface of the media converter the media converter will force the link down on its link partner and then forward it to the next interface.
Maximum Distance Supported1804.46 ft
Power SourceAC Adapter
Package Contents
  • 10/100/1000Mbps PoE & PoE+ Media Converter
  • AC Adapter
  • US Power Cord
Weight (Approximate)15.87 oz
Product FamilyIMC-390
View full details
$585.99 USD
$585.99
Sale Sold out

Back Order

Get it by Tue, Aug 04 - Sun, Aug 09
