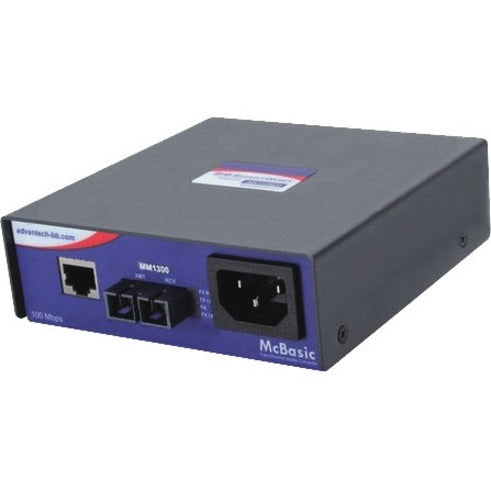

• Advantech 10/100Mbps and 10/100/1000Mbps Media Converter
    Advantech 10/100Mbps and 10/100/1000Mbps Media Converter
1 1

Advantech 10/100Mbps and 10/100/1000Mbps Media Converter

Advantech 10/100Mbps and 10/100/1000Mbps Media Converter

SKU: 1073936603      MFR: Advantech Co. Ltd

Product Description

Advantech 10/100Mbps and 10/100/1000Mbps Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - DuplexSC Port - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-FX 100Base-SX 100Base-TX - 3.11 Mile - AC - Standalone DIN Rail Mountable Desktop Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-450-MM-A

Features

  • Designed with internal AC power
  • Supports diagnostic features including Link Loss and Fiber Alert
  • Optional 10/100/1000Mbps copper ports
  • Optional Link Fault Pass Through (LFPT)
  • Supports range of SFP modules
  • Supports multiple mounting options (desktop DIN rail or wall-mount)

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Network (RJ-45)Yes
Number of PoE (RJ-45) Ports1
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1300 nm
Height1.6"
Width4.8"
Depth4.9"
Product SeriesIMC-450
Brand NameAdvantech
Form FactorStandalone
Frequency50 Hz
Frequency60 Hz
ManufacturerAdvantech Co. Ltd
Product Name10/100Mbps and 10/100/1000Mbps Media Converter
Network Technology100Base-FX
Application/UsageNetwork
Manufacturer Part NumberIMC-450-MM-A
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-450 and 470 series are standalone media converters with an optional internal power security device that makes the connection between copper and fiber cables. They can be installed anywhere a network connection is required. In addition these media converters feature automatic link restoration. They increase the scalability of a network by providing rate conversion distance extension and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connections.

The IMC-450 series provides one 10/100Mbps copper UTP port and one fiber port. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port. They are available in an SFP form factor as well as for fixed-fiber in single-mode and multi-mode. Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interface. LFPT can be enabled vis a dip switch on the front of the unit.
Maximum Distance Supported3.11 Mile
Power SourceAC
Weight (Approximate)1.30 lb
Product FamilyIMC-450
View full details
$213.99 USD
$213.99
Sale Sold out

Back Order

Get it by Sat, Jul 25 - Thu, Jul 30


Update


Shipping calculated at checkout.

Advantech 10/100Mbps and 10/100/1000Mbps Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - DuplexSC Port - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-FX 100Base-SX 100Base-TX - 3.11 Mile - AC - Standalone DIN Rail Mountable Desktop Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-450-MM-A

Features

  • Designed with internal AC power
  • Supports diagnostic features including Link Loss and Fiber Alert
  • Optional 10/100/1000Mbps copper ports
  • Optional Link Fault Pass Through (LFPT)
  • Supports range of SFP modules
  • Supports multiple mounting options (desktop DIN rail or wall-mount)

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Network (RJ-45)Yes
Number of PoE (RJ-45) Ports1
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1300 nm
Height1.6"
Width4.8"
Depth4.9"
Product SeriesIMC-450
Brand NameAdvantech
Form FactorStandalone
Frequency50 Hz
Frequency60 Hz
ManufacturerAdvantech Co. Ltd
Product Name10/100Mbps and 10/100/1000Mbps Media Converter
Network Technology100Base-FX
Application/UsageNetwork
Manufacturer Part NumberIMC-450-MM-A
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-450 and 470 series are standalone media converters with an optional internal power security device that makes the connection between copper and fiber cables. They can be installed anywhere a network connection is required. In addition these media converters feature automatic link restoration. They increase the scalability of a network by providing rate conversion distance extension and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connections.

The IMC-450 series provides one 10/100Mbps copper UTP port and one fiber port. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port. They are available in an SFP form factor as well as for fixed-fiber in single-mode and multi-mode. Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interface. LFPT can be enabled vis a dip switch on the front of the unit.
Maximum Distance Supported3.11 Mile
Power SourceAC
Weight (Approximate)1.30 lb
Product FamilyIMC-450
