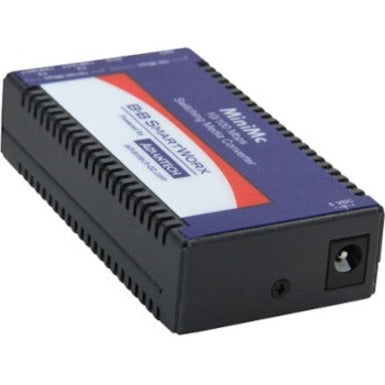

Advantech 10/100Mbps Miniature Media Converter

Advantech 10/100Mbps Miniature Media Converter

SKU: 1060147216      MFR: Advantech Co. Ltd

GTIN: 0663069011099

Product Description

Advantech 10/100Mbps Miniature Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 100Base-TX 100Base-FX - Wall Mountable DIN Rail Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-350-M8-PS

Features

  • Metal enclosure with compact size
  • Industrial grade design that supports an extended operating temperature (IMC-350I series)
  • IEEE802.3af compliant (IMC-350I series as PoE-PD)
  • Supports Link Fault Pass Through functionality (LFPT) (IMC-350-SFP)
  • Centralized powered IMC-318I chassis

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Product FamilyIMC-350
Brand NameAdvantech
Form FactorWall Mountable
Network Technology100Base-TX
Maximum Distance Supported1.24 Mile
Power SourceAC Adapter
Fiber Optic Wavelength850 nm
Country of OriginTaiwan
Height0.8"
Width1.8"
Depth3.4"
Product SeriesIMC-350
ManufacturerAdvantech Co. Ltd
Product Name10/100Mbps Miniature Media Converter
Manufacturer Part NumberIMC-350-M8-PS
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-350 series offers the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and 100Mbps full-duplex on the fiber port the IMC-350 series serves as media and data rate converter

With a variety of model types offering play-n-plug featurse and multiple powering options the IMC-350 series is an easy and convenient choice for many applications. The IMC-350I series is of industrial grade and can operate in a wide temperature range. Multiple power options including the IEEE802.3af Power-over-Ethernet standard allow the IMC-350I series to function as a power device. Its AC adapter and USB connectivity offer unsurpassed flexibility for a variety of installation needs.

The IMC-350-SFP supports Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (twisted pair copper interface) and FX LinkLoss (fiber fiber interface) from both the local and remote IMC Networks media converters when used in pairs. This feature when enabled will pass a link fault through the device at each segment. If a link fails on one interface of the media converter the media converter will force the link down on its link partner and then forward it to the next interface.
Package Contents
  • 10/100Mbps Miniature Media Converter
  • Power Adapter
Weight (Approximate)11.18 oz
View full details
$158.99 USD
$158.99
Sale Sold out

Back Order

Get it by Mon, Aug 03 - Sat, Aug 08


Update


Shipping calculated at checkout.

Advantech 10/100Mbps Miniature Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 100Base-TX 100Base-FX - Wall Mountable DIN Rail Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-350-M8-PS

Features

  • Metal enclosure with compact size
  • Industrial grade design that supports an extended operating temperature (IMC-350I series)
  • IEEE802.3af compliant (IMC-350I series as PoE-PD)
  • Supports Link Fault Pass Through functionality (LFPT) (IMC-350-SFP)
  • Centralized powered IMC-318I chassis

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Product FamilyIMC-350
Brand NameAdvantech
Form FactorWall Mountable
Network Technology100Base-TX
Maximum Distance Supported1.24 Mile
Power SourceAC Adapter
Fiber Optic Wavelength850 nm
Country of OriginTaiwan
Height0.8"
Width1.8"
Depth3.4"
Product SeriesIMC-350
ManufacturerAdvantech Co. Ltd
Product Name10/100Mbps Miniature Media Converter
Manufacturer Part NumberIMC-350-M8-PS
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-350 series offers the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and 100Mbps full-duplex on the fiber port the IMC-350 series serves as media and data rate converter

With a variety of model types offering play-n-plug featurse and multiple powering options the IMC-350 series is an easy and convenient choice for many applications. The IMC-350I series is of industrial grade and can operate in a wide temperature range. Multiple power options including the IEEE802.3af Power-over-Ethernet standard allow the IMC-350I series to function as a power device. Its AC adapter and USB connectivity offer unsurpassed flexibility for a variety of installation needs.

The IMC-350-SFP supports Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (twisted pair copper interface) and FX LinkLoss (fiber fiber interface) from both the local and remote IMC Networks media converters when used in pairs. This feature when enabled will pass a link fault through the device at each segment. If a link fails on one interface of the media converter the media converter will force the link down on its link partner and then forward it to the next interface.
Package Contents
  • 10/100Mbps Miniature Media Converter
  • Power Adapter
Weight (Approximate)11.18 oz
