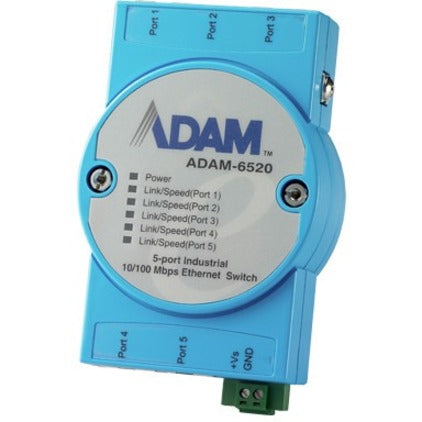

Advantech 5-port 10/100 Mbps Industrial Ethernet Switch

Advantech 5-port 10/100 Mbps Industrial Ethernet Switch

SKU: 1058635739      MFR: Advantech Co. Ltd

Product Description

Advantech 5-port 10/100 Mbps Industrial Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - DIN Rail Mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : ADAM-6520-BE

Features

  • Supports full/half duplex flow control
  • Supports MDI/MDI-X auto crossover
  • Embedded with a switch controller supports auto-negotiation
  • Supports +10 ~ 30 VDC voltage power input
  • Provides surge (EFT) protection 3000 V
  • DC for power line (ADAM-6520L not equipped)
  • Supports 4000 VDC Ethernet ESD protection (ADAM-6520L not equipped)
  • Provides flexible mounting: DIN-rail Wall Stack
  • Supports wide operating temperature range : -40 ~ 85° C (ADAM-6520I)

Product Details

Product TypeEthernet Switch
ManageableNo
Ethernet TechnologyFast Ethernet
Product FamilyADAM-6520
Media Type SupportedTwisted Pair
Total Number of Network Ports5
Brand NameAdvantech
Form FactorDIN Rail Mountable
Layer Supported2
Port/Expansion Slot Details5 x Fast Ethernet Network
Country of OriginTaiwan
Height4"
Width2.8"
Depth1.1"
Product SeriesADAM-6520
ManufacturerAdvantech Co. Ltd
Product Name5-port 10/100 Mbps Industrial Ethernet Switch
Network Technology10/100Base-TX
Manufacturer Part NumberADAM-6520-BE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates. (Auto-negotiation). Just like any other product in the ADAM family ADAM-6520 can bemounted in three different ways: DIN rail Walland Stack. Solid industrial-grade design assuresreliable operation in common application areaslike:semi-conductor factories inventory control environments assembly lines manufacturing and many more.
All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block and 3000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70° while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments.
The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions the link status power failure and data receipts for immediate on-site diagnosis.
View full details
$112.99 USD
$112.99
Sale Sold out

In Stock - 75 (Available by Thu, Jun 11 - Tue, Jun 16)


Update


Shipping calculated at checkout.

Advantech 5-port 10/100 Mbps Industrial Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - DIN Rail Mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : ADAM-6520-BE

Features

  • Supports full/half duplex flow control
  • Supports MDI/MDI-X auto crossover
  • Embedded with a switch controller supports auto-negotiation
  • Supports +10 ~ 30 VDC voltage power input
  • Provides surge (EFT) protection 3000 V
  • DC for power line (ADAM-6520L not equipped)
  • Supports 4000 VDC Ethernet ESD protection (ADAM-6520L not equipped)
  • Provides flexible mounting: DIN-rail Wall Stack
  • Supports wide operating temperature range : -40 ~ 85° C (ADAM-6520I)

Product Details

Product TypeEthernet Switch
ManageableNo
Ethernet TechnologyFast Ethernet
Product FamilyADAM-6520
Media Type SupportedTwisted Pair
Total Number of Network Ports5
Brand NameAdvantech
Form FactorDIN Rail Mountable
Layer Supported2
Port/Expansion Slot Details5 x Fast Ethernet Network
Country of OriginTaiwan
Height4"
Width2.8"
Depth1.1"
Product SeriesADAM-6520
ManufacturerAdvantech Co. Ltd
Product Name5-port 10/100 Mbps Industrial Ethernet Switch
Network Technology10/100Base-TX
Manufacturer Part NumberADAM-6520-BE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates. (Auto-negotiation). Just like any other product in the ADAM family ADAM-6520 can bemounted in three different ways: DIN rail Walland Stack. Solid industrial-grade design assuresreliable operation in common application areaslike:semi-conductor factories inventory control environments assembly lines manufacturing and many more.
All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block and 3000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70° while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments.
The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions the link status power failure and data receipts for immediate on-site diagnosis.
