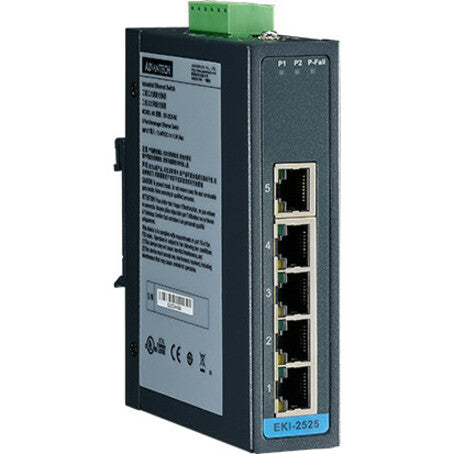

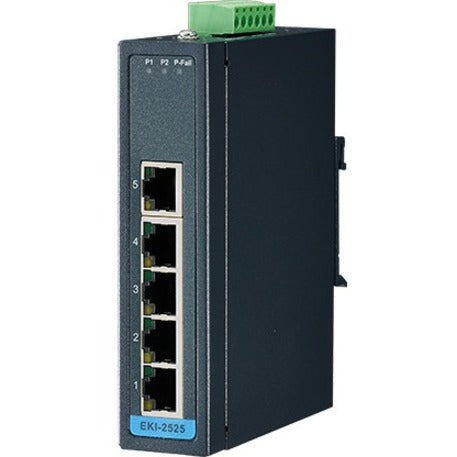

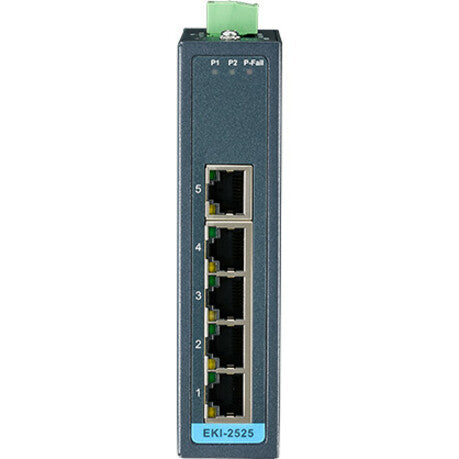

• Advantech 5-Port Ethernet Switch
    Advantech 5-Port Ethernet Switch
  • Advantech 5-Port Ethernet Switch
  • Advantech 5-Port Ethernet Switch
1 3

Advantech 5-Port Ethernet Switch

Advantech 5-Port Ethernet Switch

SKU: 1041315242      MFR: Advantech Co. Ltd

Product Description

Advantech 5-Port Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable DIN Rail Mountable - 5 Year Limited Warranty

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-2525-BE

Features

  • Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100 Mbps Auto-Negotiation
  • Provides broadcast storm protection
  • Provides compact size with DIN-rail/Wall mount and IP30 metal mechanism
  • Supports redundant 12 ~ 48 VDC power input and P-Fail relay
  • Supports wide operating temperatures from -40 to 75°C (EKI-2525I/EKI-2528I)

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
ModularNo
Uplink PortNo
Stack PortNo
Media Type SupportedTwisted Pair
Total Number of Network Ports5
Port/Expansion Slot Details5 x Fast Ethernet Network
Country of OriginChina
Height4.7"
Width1.2"
Depth3.7"
Product SeriesEKI-2000
Brand NameAdvantech
Form FactorWall Mountable
ManufacturerAdvantech Co. Ltd
Product ModelEKI-2525
Product Name5-Port Ethernet Switch
Network Technology10/100Base-TX
Manufacturer Part NumberEKI-2525-BE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe EKI-2525/2528 supports a Fast Ethernet solution. The power is a +12 ~ 48 VDC redundant input design and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
Limited Warranty5 Year
Layer Supported2
Product FamilyEKI-2000
View full details
$103.99 USD
$103.99
Sale Sold out

In Stock - 39 (Available by Sat, Jun 20 - Thu, Jun 25)


Update


Shipping calculated at checkout.

Advantech 5-Port Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable DIN Rail Mountable - 5 Year Limited Warranty

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-2525-BE

Features

  • Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100 Mbps Auto-Negotiation
  • Provides broadcast storm protection
  • Provides compact size with DIN-rail/Wall mount and IP30 metal mechanism
  • Supports redundant 12 ~ 48 VDC power input and P-Fail relay
  • Supports wide operating temperatures from -40 to 75°C (EKI-2525I/EKI-2528I)

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
ModularNo
Uplink PortNo
Stack PortNo
Media Type SupportedTwisted Pair
Total Number of Network Ports5
Port/Expansion Slot Details5 x Fast Ethernet Network
Country of OriginChina
Height4.7"
Width1.2"
Depth3.7"
Product SeriesEKI-2000
Brand NameAdvantech
Form FactorWall Mountable
ManufacturerAdvantech Co. Ltd
Product ModelEKI-2525
Product Name5-Port Ethernet Switch
Network Technology10/100Base-TX
Manufacturer Part NumberEKI-2525-BE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe EKI-2525/2528 supports a Fast Ethernet solution. The power is a +12 ~ 48 VDC redundant input design and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
Limited Warranty5 Year
Layer Supported2
Product FamilyEKI-2000
