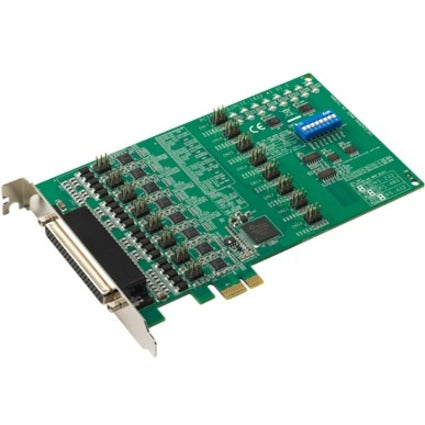

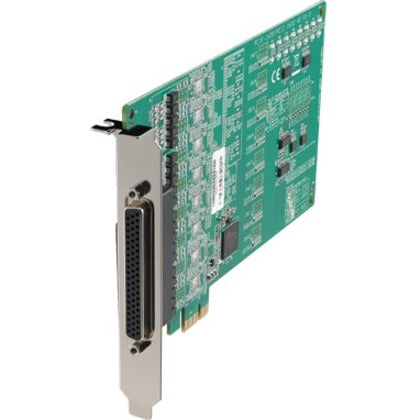

Advantech 8-port RS-232 PCI Express Communication Card

Advantech 8-port RS-232 PCI Express Communication Card

SKU: 1038607803      MFR: Advantech Co. Ltd

Product Description

Advantech 8-port RS-232 PCI Express Communication Card - PCI Express 2.0 x1 - 8 x DB-25 RS-232/422/485 - Serial Via Cable - Plug-in Card

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : PCIE-1620A-BE

Features

  • PCI Express bus 2.0 compliant
  • Up to 921.6 kbps speed for extremely fast data transmissions
  • Supports any baud rate setting
  • 8 x RS-232 or RS-232/422/485 ports
  • XR17V358 UART with 256-byte FIFOs
  • Supports Windows XP/7/8/10 and Linux operating systems
  • Board ID function for fixed COM ports

Product Details

Product TypeMultiport Serial Adapter
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of Serial Ports1
Height4.4"
Width6.6"
Brand NameAdvantech
Form FactorPlug-in Card
ManufacturerAdvantech Co. Ltd
Product Name8-port RS-232 PCI Express Communication Card
Manufacturer Part NumberPCIE-1620A-BE
Manufacturer Website Addresshttp://www.advantech.com
Marketing Information

PCIE-1620 is an 8-port RS-232 and PCIE-1622 is an 8-port RS-232/422/485 PCI Express communication cards that are compatible with the PCI Express x 1 specification. The cards provide eight EFT protected RS-232/422/485 ports up to 2500 VDC and have many functions such as high transmission speed of 921.6 kbps; either eight independent RS-232 ports or eight independent RS-232/422/485 ports which comes with high-performance PCIe958 UARTs with 128-byte FIFO to reduce CPU load. Thus the PCIE-1620/ PCIE-1622 are especially suitable for making your system reliable in multitasking environments.

Platform SupportedPC
Ports Expandability8 x DB-25 RS-232/422/485 - Serial Via Cable
Limited Warranty5 Year
Host InterfacePCI Express 2.0 x1
Number of Ports8
