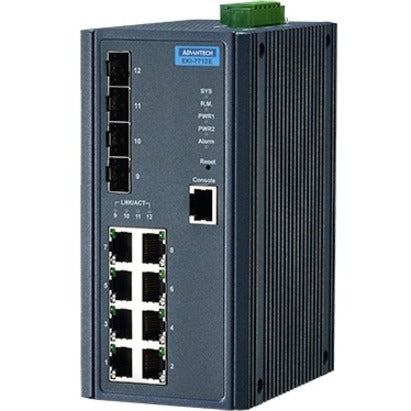

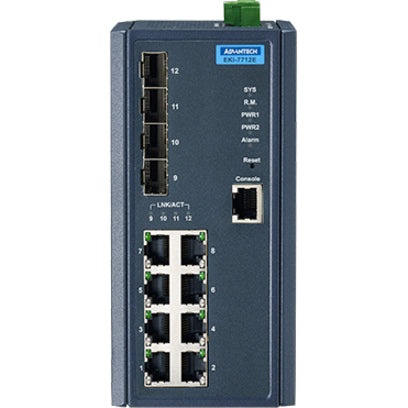

Advantech 8FE+4G SFP Managed Ethernet Switch

Advantech 8FE+4G SFP Managed Ethernet Switch

SKU: 1055465123      MFR: Advantech Co. Ltd

Product Description

Advantech 8FE+4G SFP Managed Ethernet Switch - 8 Ports - Manageable - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - Modular - 4 SFP Slots - Optical Fiber Twisted Pair - Wall Mountable DIN Rail Mountable - 5 Year Limited Warranty

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-7712E-4F-AE

Features

  • 8 Fast Ethernet ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms) RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based MD5/TLS/TTLS/PEAP Encryption) RADIUS
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • -40 ~ 75°C wide-range operating temperature (EKI-7712E-4FI)
  • Dual 12~48 VDC power input and 1 relay output

Product Details

Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyFast Ethernet
Number of Total Expansion Slots4
Product FamilyEKI-7712E
Media Type SupportedOptical Fiber
Total Number of Network Ports8
Expansion Slot TypeSFP (mini-GBIC)
Brand NameAdvantech
Form FactorWall Mountable
Layer Supported2
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of SFP Slots4
ModularYes
Shared SFP SlotNo
Port/Expansion Slot Details8 x Fast Ethernet Network
Country of OriginTaiwan
Height6"
Width2.9"
Depth4.1"
Product SeriesEKI-7712E
ManufacturerAdvantech Co. Ltd
Product ModelEKI-7712E-4F
Product Name8FE+4G SFP Managed Ethernet Switch
Network Technology10/100Base-TX
Manufacturer Part NumberEKI-7712E-4F-AE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationEKI-7712E-4F/4FI supports 8 Fast Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides it is embedded with Advantech IXM function this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7712G-4FI) and NEMA TS2 rating making the switch an ideal solution for use in traffic application and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
Limited Warranty5 Year
Weight (Approximate)2.43 lb
View full details
$1,124.99 USD
$1,124.99
Sale Sold out

Back Order

Get it by Sun, Jul 26 - Fri, Jul 31


Update


Shipping calculated at checkout.

Advantech 8FE+4G SFP Managed Ethernet Switch - 8 Ports - Manageable - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - Modular - 4 SFP Slots - Optical Fiber Twisted Pair - Wall Mountable DIN Rail Mountable - 5 Year Limited Warranty

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-7712E-4F-AE

Features

  • 8 Fast Ethernet ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms) RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based MD5/TLS/TTLS/PEAP Encryption) RADIUS
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • -40 ~ 75°C wide-range operating temperature (EKI-7712E-4FI)
  • Dual 12~48 VDC power input and 1 relay output

Product Details

Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyFast Ethernet
Number of Total Expansion Slots4
Product FamilyEKI-7712E
Media Type SupportedOptical Fiber
Total Number of Network Ports8
Expansion Slot TypeSFP (mini-GBIC)
Brand NameAdvantech
Form FactorWall Mountable
Layer Supported2
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of SFP Slots4
ModularYes
Shared SFP SlotNo
Port/Expansion Slot Details8 x Fast Ethernet Network
Country of OriginTaiwan
Height6"
Width2.9"
Depth4.1"
Product SeriesEKI-7712E
ManufacturerAdvantech Co. Ltd
Product ModelEKI-7712E-4F
Product Name8FE+4G SFP Managed Ethernet Switch
Network Technology10/100Base-TX
Manufacturer Part NumberEKI-7712E-4F-AE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationEKI-7712E-4F/4FI supports 8 Fast Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides it is embedded with Advantech IXM function this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7712G-4FI) and NEMA TS2 rating making the switch an ideal solution for use in traffic application and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
Limited Warranty5 Year
Weight (Approximate)2.43 lb
