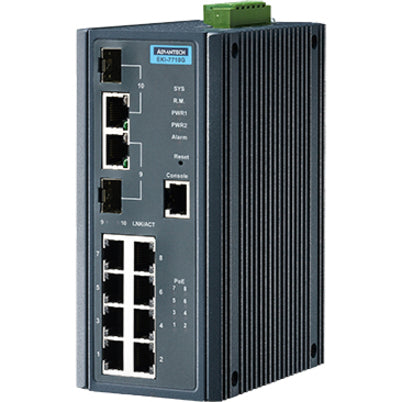

Advantech 8G+2G Port Gigabit Managed Redundant Industrial PoE Switch

Advantech 8G+2G Port Gigabit Managed Redundant Industrial PoE Switch

SKU: 1069412414      MFR: Advantech Co. Ltd

Product Description

Advantech 8G+2G Port Gigabit Managed Redundant Industrial PoE Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 12.10 W Power Consumption - 120 W PoE Budget - Twisted Pair Optical Fiber - PoE Ports - DIN Rail Mountable Wall Mountable - 5 Year Limited Warranty

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-7710G-2CPI-BE

Features

  • 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit copper/SFP combo ports
  • SFP socket for easy and flexible fiber expansion
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time <20 ms) RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (port-based MD5/TLS/TTLS/PEAP encryption) RADIUS
  • Management: SNMP v1/v2c/v3 WEB Telnet standard MIB private MIB
  • NEMA TS2 for traffic control
  • EN50121-4 approval for railway trackside deployment
  • Dual 24 ~ 48 VDC power input and 1 x relay output
  • Wide operating temperature range of -40 ~ 75°C (EKI-7710G-2CPI)

Product Details

Product TypeEthernet Switch
ManageableYes
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Network (RJ-45)Yes
Number of SFP Slots2
ModularYes
Media Type SupportedTwisted Pair
Total Number of Network Ports8
Shared SFP SlotYes
PoE (RJ-45) PortYes
Port/Expansion Slot Details8 x Gigabit Ethernet PoE
PoE Budget120 W
Networking StandardsIEEE 802.3af
Product MaterialMetal
Height6"
Width2.9"
Depth4.1"
Expansion Slot TypeSFP (mini-GBIC)
Product SeriesEKI-7710G
Brand NameAdvantech
Plug/Connector TypeTerminal Block
Form FactorDIN Rail Mountable
ManufacturerAdvantech Co. Ltd
Product ModelEKI-7710G-2CPI
Product Name8G+2G Port Gigabit Managed Redundant Industrial PoE Switch
Network Technology10/100/1000Base-T
Power Consumption12.10 W
Input Voltage24 V DC
Manufacturer Part NumberEKI-7710G-2CPI-BE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe EKI-7710G-2CP/2CPI support 8 Gigabit PoE ports and 2 Gigabit combo ports. They provide up to 30W per port for high-power-consumption powered devices. They come embedded with Advantech IXM function which can benefit users with fast deployment and can dramatically save considerably on engineering time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally they are equipped with X-Ring Pro which can achieve ultra-high-speed recovery times of <20 ms thus ensuring network stability.
Power SourceDC
Limited Warranty5 Year
Layer Supported2
Product FamilyEKI-7710G
