• Advantech EKI-7712E-4FP Ethernet Switch

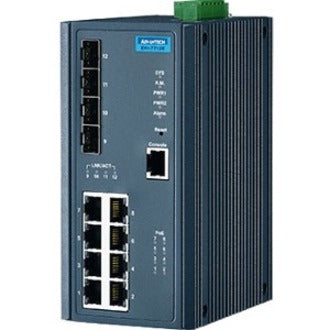

    Advantech EKI-7712E-4FP Ethernet Switch
  • Advantech EKI-7712E-4FP Ethernet Switch
1 2

Advantech EKI-7712E-4FP Ethernet Switch

Advantech EKI-7712E-4FP Ethernet Switch

SKU: 1071205776      MFR: Advantech Co. Ltd

Product Description

Advantech EKI-7712E-4FP Ethernet Switch - 8 Ports - Manageable - Fast Ethernet Gigabit Ethernet - 10/100Base-TX 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 12.10 W Power Consumption - Optical Fiber Twisted Pair - PoE Ports - Wall Mountable DIN Rail Mountable - 5 Year Limited Warranty

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-7712E-4FP-AE

Features

  • 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms) RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based MD5/TLS/TTLS/PEAP Encryption) RADIUS
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • Dual 48 V DC power input and 1 relay output

Product Details

Product TypeEthernet Switch
ManageableYes
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Total Expansion Slots4
Number of SFP Slots4
ModularYes
Media Type SupportedOptical Fiber
Total Number of Network Ports8
Shared SFP SlotNo
PoE (RJ-45) PortYes
Port/Expansion Slot Details8 x Fast Ethernet PoE
Networking StandardsIEEE 802.3af
Product MaterialMetal
Height6"
Width2.9"
Depth4.1"
Expansion Slot TypeSFP (mini-GBIC)
Product SeriesEKI-7712E
Brand NameAdvantech
Form FactorWall Mountable
ManufacturerAdvantech Co. Ltd
Product ModelEKI-7712E-4FP
Product NameEKI-7712E-4FP Ethernet Switch
Network Technology10/100Base-TX
Power Consumption12.10 W
Input Voltage48 V DC
Manufacturer Part NumberEKI-7712E-4FP-AE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationEKI-7712E-4FP/4FPI supports 8 Fast Ethernet IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device) requirements. They are embedded with Advantech's IXM function which can benefit users for fast deployment and can dramatically save engineers time and cost. The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712E-4FPI) and NEMA TS2 rating making the switch an ideal solution for use in traffic applications. EKI-7712E-4FP/4FPI has successfully passed the EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.
Power SourceDC
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)2.43 lb
Application/UsageNetwork
Product FamilyEKI-7712E
View full details
$1,176.99 USD
$1,176.99
Sale Sold out

Back Order

Get it by Sun, Jul 26 - Fri, Jul 31


Update


Shipping calculated at checkout.

Advantech EKI-7712E-4FP Ethernet Switch - 8 Ports - Manageable - Fast Ethernet Gigabit Ethernet - 10/100Base-TX 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 12.10 W Power Consumption - Optical Fiber Twisted Pair - PoE Ports - Wall Mountable DIN Rail Mountable - 5 Year Limited Warranty

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-7712E-4FP-AE

Features

  • 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms) RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based MD5/TLS/TTLS/PEAP Encryption) RADIUS
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • Dual 48 V DC power input and 1 relay output

Product Details

Product TypeEthernet Switch
ManageableYes
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Total Expansion Slots4
Number of SFP Slots4
ModularYes
Media Type SupportedOptical Fiber
Total Number of Network Ports8
Shared SFP SlotNo
PoE (RJ-45) PortYes
Port/Expansion Slot Details8 x Fast Ethernet PoE
Networking StandardsIEEE 802.3af
Product MaterialMetal
Height6"
Width2.9"
Depth4.1"
Expansion Slot TypeSFP (mini-GBIC)
Product SeriesEKI-7712E
Brand NameAdvantech
Form FactorWall Mountable
ManufacturerAdvantech Co. Ltd
Product ModelEKI-7712E-4FP
Product NameEKI-7712E-4FP Ethernet Switch
Network Technology10/100Base-TX
Power Consumption12.10 W
Input Voltage48 V DC
Manufacturer Part NumberEKI-7712E-4FP-AE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationEKI-7712E-4FP/4FPI supports 8 Fast Ethernet IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device) requirements. They are embedded with Advantech's IXM function which can benefit users for fast deployment and can dramatically save engineers time and cost. The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712E-4FPI) and NEMA TS2 rating making the switch an ideal solution for use in traffic applications. EKI-7712E-4FP/4FPI has successfully passed the EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.
Power SourceDC
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)2.43 lb
Application/UsageNetwork
Product FamilyEKI-7712E
