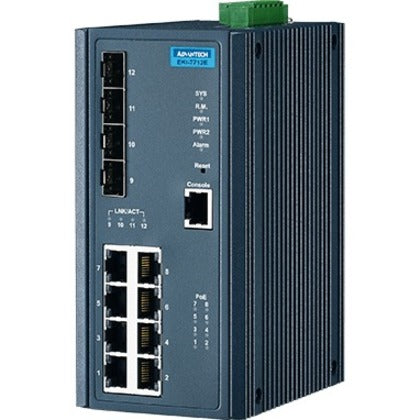

Advantech EKI-7712E-4FPI Ethernet Switch

Advantech EKI-7712E-4FPI Ethernet Switch

SKU: 1048138755      MFR: Advantech Co. Ltd

Product Description

Advantech EKI-7712E-4FPI Ethernet Switch - 8 Ports - Manageable - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - Modular - 4 SFP Slots - Optical Fiber Twisted Pair - Wall Mountable DIN Rail Mountable - 5 Year Limited Warranty

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-7712E-4FPI-AE

Features

  • Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Layer 2 switch provides a complete lineup of features including IGMP snooping port mirroring and spanning tree
  • Managed switch provides a reliable foundation for your network

Product Details

Product TypeEthernet Switch
ManageableYes
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Total Expansion Slots4
Number of SFP Slots4
ModularYes
Media Type SupportedOptical Fiber
Total Number of Network Ports8
Shared SFP SlotNo
Port/Expansion Slot Details8 x Fast Ethernet PoE
Height6"
Width2.9"
Depth4.1"
Expansion Slot TypeSFP (mini-GBIC)
Product SeriesEKI-7712E
Brand NameAdvantech
Form FactorWall Mountable
ManufacturerAdvantech Co. Ltd
Product ModelEKI-7712E-4FPI
Product NameEKI-7712E-4FPI Ethernet Switch
Network Technology10/100Base-TX
Manufacturer Part NumberEKI-7712E-4FPI-AE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationEKI-7712E-4FP/4FPI supports 8 Fast Ethernet IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device) requirements. They are embedded with Advantech's IXM function which can benefit users for fast deployment and can dramatically save engineers time and cost. The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712E-4FPI) and NEMA TS2 rating making the switch an ideal solution for use in traffic applications. EKI-7712E-4FP/4FPI has successfully passed the EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.
Packaged Quantity1
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)2.43 lb
Product FamilyEKI-7712E
