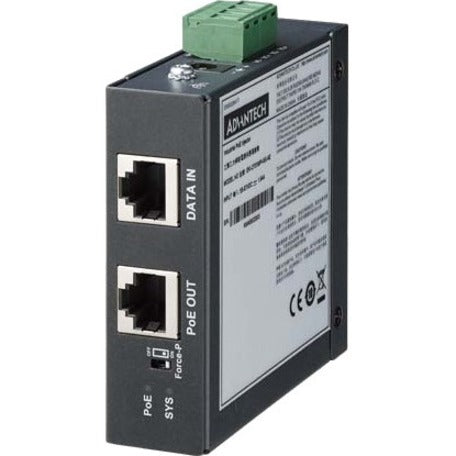

Advantech Hardened Multi-Speed Mega PoE Injector

SKU: 1069839118      MFR: Advantech Co. Ltd

Product Description

Advantech Hardened Multi-Speed Mega PoE Injector - 57 V DC Input - 1 x 10/100/1000TX Input Port(s) - 1 x PoE Output Port(s) - 90 W

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-2701MPI-5G-AE

Features

  • Supports multi data rate 10M/100M/1G/2.5G/5G for Data in and PoE out
  • IEEE 802.3af/at/bt compliant
  • Force mode power supports up to 90W by DIP switch
  • Power input 54~57 VDC injects power up to 90W
  • Provides slim size and DIN-rail with IP40 metal mechanism
  • Supports operating temperatures from -40 ~ 75°C

Product Details

Product TypePoE Injector
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Output Power90 W
Height3.1"
Width3.3"
Depth1"
Certifications & StandardsCommunications:
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3bz
  • IP40
EMS:
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-8
EMI:
  • CE
  • FCC
Safety:
  • UL62368
Shock:
  • IEC 60068-2-27
Freefall:
  • IEC 60068-2-32
Vibration:
  • IEC 60068-2-6
Brand NameAdvantech
Input Ports1 x 10/100/1000TX
Output Ports1 x PoE
Form FactorDIN Rail/Wall Mountable
ManufacturerAdvantech Co. Ltd
Product ModelEKI-2701MPI-5G
Product NameHardened Multi-Speed Mega PoE Injector
Input Voltage57 V DC
Manufacturer Part NumberEKI-2701MPI-5G-AE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationEKI-2701MPI-5G is a next-generation injector which is compliant with IEEE 802.3af/at/bt. With PoE (Power over Ethernet) technology both data and power to Ethernet-enabled devices run on a standard CAT6(A)/CAT7 cable to serve up to 90W.

EKI-2701MPI-5G injector flexibly deploys standard and high powered PD devices to transfer data and power simultaneously through one Ethernet cable while reaching distance up to 100 meters. It supports dual power inputs via a pluggable terminal block or DC jack. DIN-rail and wall-mounting installation options provide greater user expediency. With the use of EKI-2701MPI-5GWifi AP at 5Gbps transmission rate can be easily deployed as it is capable of providing power up to 90W and supporting multi data rate.
Additional Information
  • Transmission Distance Ethernet: Up to 100 m (mid-span)
  • Transmission Speed: Up to 5Gbps
Connectors:
  • DATA IN: RJ45
  • PoE OUT: RJ45

LED Indicators:
  • PoE
  • SYS
View full details
$399.99 USD
$399.99
Sale Sold out

Out Of Stock
