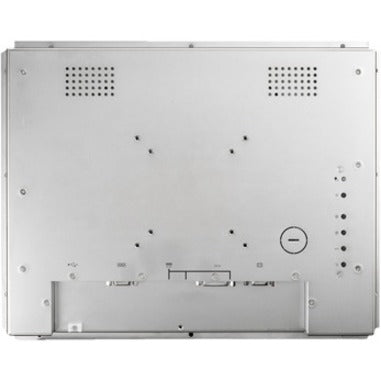

Advantech IDS-3117N-35SXA1E 17" SXGA Open-frame LCD Monitor

Advantech IDS-3117N-35SXA1E 17" SXGA Open-frame LCD Monitor

SKU: 1049066965      MFR: Advantech Co. Ltd

Product Description

Advantech IDS-3117N-35SXA1E 17" SXGA Open-frame LCD Monitor - 17" Class - Thin Film Transistor (TFT) - LED Backlight - 1280 x 1024 - 16.7 Million Colors - 350 Nit - 30 ms - DVI - VGA

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IDS-3117N-35SXA1E

Features

  • 17" 1280 x 1024 SXGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20°C~+60°C wide operating temperature support
  • 5-wires resistive touchscreen solution
  • Combo touch interface RS-232 and USB
  • Dual signal interface with VGA and DVI (on selected models)
  • Integrated bracket for easy installation
  • Versatile mounting methods for Rear mounting and VESA mounting
  • Anti-Reflective surface treatment for sunlight readable enhancement (optional)
  • Ultra high brightness solution of 1200 nits for outdoor application (optional)

Product Details

Product TypeOpen-frame LCD Monitor
Number of Screens1
Environmentally FriendlyYes
Environmental CertificationRoHS
Backlight TechnologyLED
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Native Contrast Ratio800:1
DVIYes
VGAYes
Panel TechnologyThin Film Transistor (TFT)
Screen Size Class17"
Country of OriginTaiwan
Height13.6"
Width15.7"
Depth1.3"
Brightness350 Nit
Screen ModeSXGA
Color Supported16.7 Million Colors
Product SeriesIDS-3117
Viewable Screen Size17"
Maximum Resolution1280 x 1024
Brand NameAdvantech
ManufacturerAdvantech Co. Ltd
Product ModelIDS-3117N-35SXA1E
Product Name17" SXGA Industrial Open Frame Monitor
Mount TypeRear Mount
Manufacturer Part NumberIDS-3117N-35SXA1E
Manufacturer Website Addresshttp://www.advantech.com
Marketing Information

The Advantech IDS-3117 Open Frame Monitor Series offer ultra slim design supporting a 17" 1280 x 1024 pixels TFT LCD screen with -20 ~ +60° C wide operating temperature and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
Packaged Quantity1
Package Contents
  • 17" SXGA Industrial Open Frame Monitor
  • 1 x M Cable USB-A(M)/USB-A(M) 180CM
  • 1 x VGA cable 15P(M) 1.8 meter
  • 8 x Clamper
  • 8 x Screw of clamper M4_25L
  • 1 x Cable clamp
  • 1 x Screw of cable clamp
  • 1 x Cable tie
Response Time30 ms
Limited Warranty2 Year
Weight (Approximate)7.61 lb
Product FamilyIDS-3117
