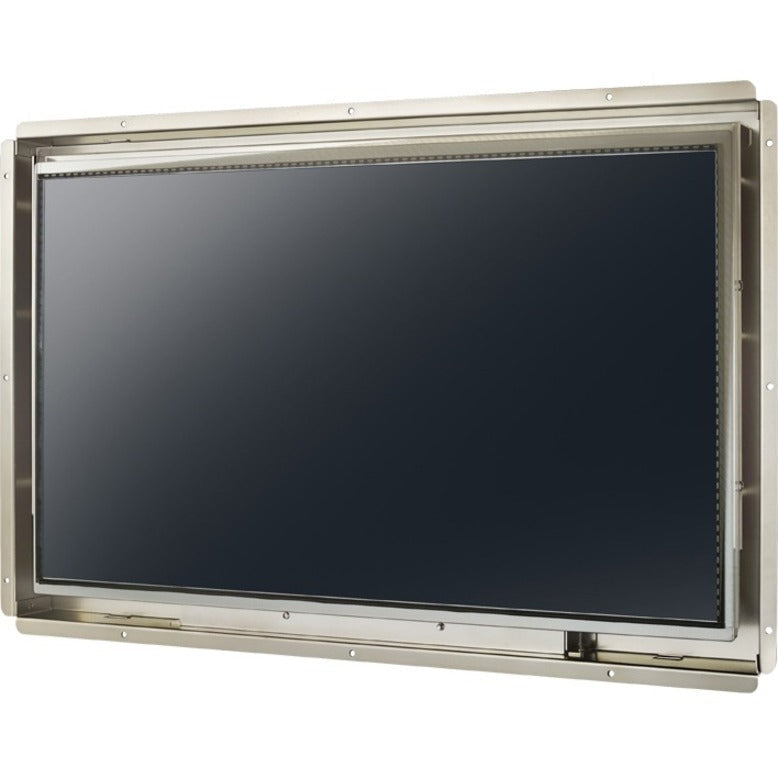

Advantech IDS-3118WN-30HDA1E 18.5" WXGA Open-frame LCD Monitor

Advantech IDS-3118WN-30HDA1E 18.5" WXGA Open-frame LCD Monitor

SKU: 1049066650      MFR: Advantech Co. Ltd

Product Description

Advantech IDS-3118WN-30HDA1E 18.5" WXGA Open-frame LCD Monitor - 19" Class - Thin Film Transistor (TFT) - LED Backlight - 1366 x 768 - 16.7 Million Colors - 300 Nit - 5 ms - DVI - HDMI - VGA

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IDS-3118WN-30HDA1E

Features

  • 18.5" HD LCD panel with LED backlight for 20% power saving and
  • environmental protection
  • 0° ~ 55° C wide range operating temperature
  • 5-wire resistive and P-cap touchscreen solution
  • Touch interface: USB & RS-232
  • Multiple signal interface with VGA DVI & HDMI
  • Integrated bracket for easy installation
  • Versatile mounting methods for rear mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Optical bonding (optional)

Product Details

Product TypeOpen-frame LCD Monitor
Number of Screens1
Environmentally FriendlyYes
Environmental CertificationRoHS
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
DVIYes
VGAYes
Product FamilyIDS-3118W
Panel TechnologyThin Film Transistor (TFT)
Screen Size Class19"
Brightness300 Nit
Screen ModeWXGA
Color Supported16.7 Million Colors
Viewable Screen Size18.5"
Maximum Resolution1366 x 768
Brand NameAdvantech
Response Time5 ms
Native Contrast Ratio1000:1
Country of OriginTaiwan
Height12"
Width18.8"
Depth1.4"
Product SeriesIDS-3118W
ManufacturerAdvantech Co. Ltd
Product ModelIDS-3118WN-30HDA1E
Product Name18.5" HD Open Frame Monitor
Manufacturer Part NumberIDS-3118WN-30HDA1E
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationIntroduction

The Advantech IDS-3118W Embedded Open Frame Monitor series offers flexible options for LCD touchscreen signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.
Packaged Quantity1
Package Contents
  • 18.5" HD Open Frame Monitor
  • 1 x M Cable USB-A(M)/USB-A(M) 180CM
  • 1 x VGA Cable 15P(M) 1.8 meter
  • 8 x Clamper
  • 8 x Screw of Clamper M4_25L
  • 1 x Cable Clamp
  • 1 x Screw of Cable Clamp
  • 1 x Cable Tie
Limited Warranty2 Year
Weight (Approximate)10.36 lb
VESA Mount Standard100 x 100
